10-30 - Husqvarna 30" Snow Blower (Original) CHASSIS / FRAME 2 Parts Diagram

30" Snow Blower

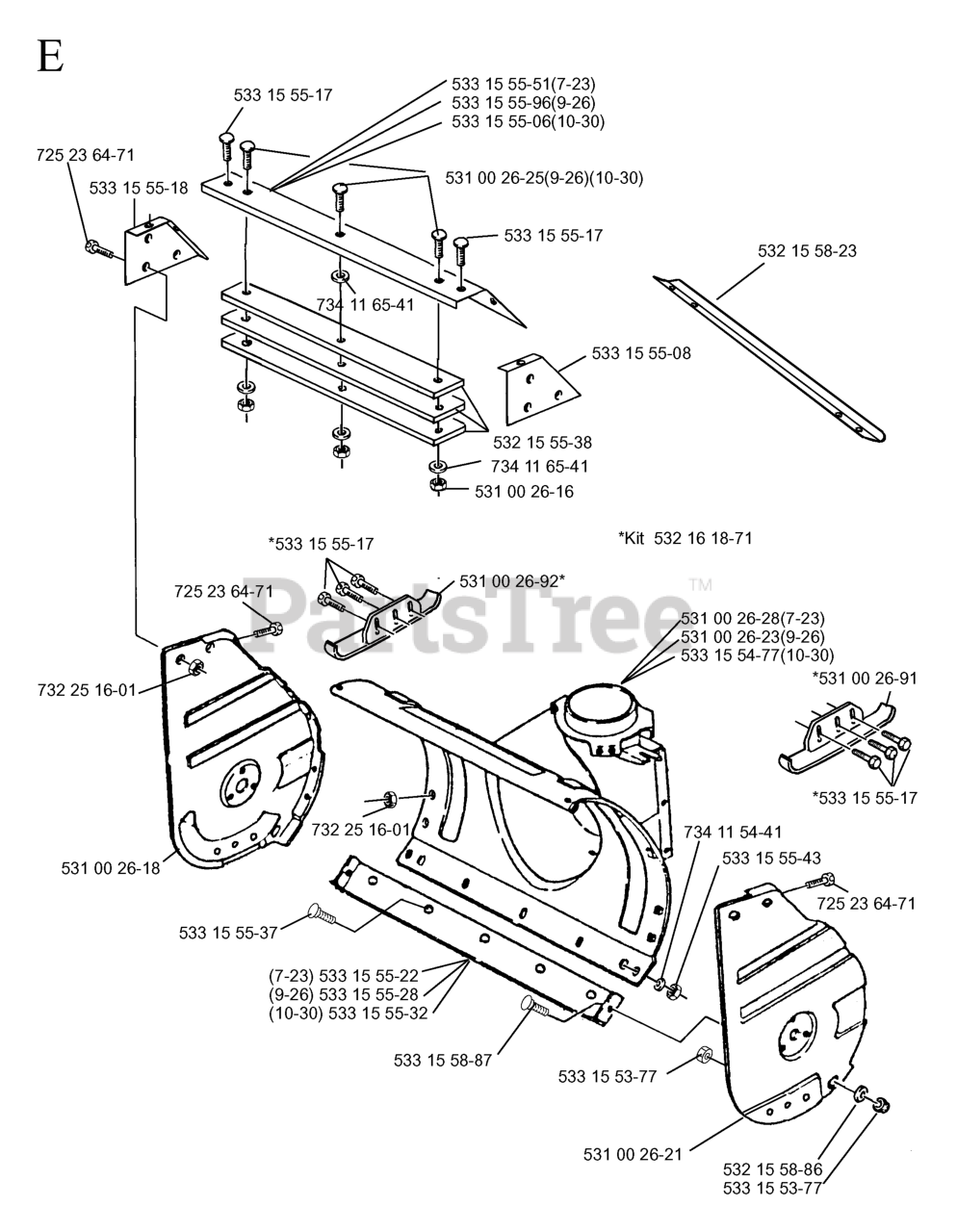

CHASSIS / FRAME 2 Parts Diagram

  • Title
533 15 54-77

Husqvarna 533155477

BLOWER HSG 30 ASM

Note: 10-30

$

$

Not available

533 15 53-77

$

$

Not available

533 15 55-37

$

$

Not available

533 15 55-17

$

$

Not available

531 00 26-21

Husqvarna 531002621

SIDE PLATE LH
(Superseded to 506707701)

$

$

Not available

533 15 58-87

$

$

Not available

531 00 26-16

Husqvarna 531002616

NUT LOCK CENTRE - 5/16-18

$

$

Not available

533 15 55-17

Husqvarna 533155517

BOLT

Note: KIT 532 16 18-71

$

$

Not available

531 00 26-28

Husqvarna 531002628

BLOWER HSNG ASSY 23"
(Superseded to 506707401)

Note: 7-23

$

$

Not available

531 00 26-23

Husqvarna 531002623

BLOWER HSNG ASSY 26"
(Superseded to 506707301)

Note: 9-26

$

$

Not available

532 15 58-86

Husqvarna 532155886

KIT.SERV.LH.CHASSIS BRKT/HDW

$

$

Not available

725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

533 15 55-32

Husqvarna 533155532

WIDE SCRAPER BAR ASM 30"

Note: 10-30

$

$

Not available

732 25 16-01

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 11

0

531 00 26-18

Husqvarna 531002618

SIDE PLATE RH
(Superseded to 506707801)

$

$

Not available

533 15 55-28

Husqvarna 533155528

WIDE SCRAPER BAR 26"

Note: 9-26

$

$

Not available

533 15 55-22

Husqvarna 533155522

SCRAPER

Note: 7-23

$

$

Not available

532 15 58-23

$

$

Not available

531 00 26-91

Husqvarna 531002691

SKID, LH
(Superseded to 535414948)

Note: KIT 532 16 18-71

$85.99

$

In Stock, only 1 left!

0

533 15 55-06

Husqvarna 533155506

PANEL

Note: 10-30

$

$

Not available

532 15 55-38

Husqvarna 532155538

REPL BY 533 15 55-34
(Superseded to 533155538)

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

533 15 55-43

$

$

Not available

533 15 55-08

Husqvarna 533155508

END PLATE LH ASM

$

$

Not available

531 00 26-25

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

Note: 9-26 10-30

$

$

Not available

533 15 55-96

Husqvarna 533155596

NEEDS DESCRIPTION

Note: 9-26

$

$

Currently unavailable

533 15 55-51

Husqvarna 533155551

PANEL

Note: 7-23

$

$

Not available

531 00 26-92

Husqvarna 531002692

SKID, RH
(Superseded to 535414948)

Note: KIT 532 16 18-71

$85.99

$

In Stock, only 1 left!

0

533 15 55-18

Husqvarna 533155518

END PLATE RH ASM

$

$

Not available

734 11 54-41

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, only 1 left!

0
