10-30 - Husqvarna 30" Snow Blower (1999-10) HEADLIGHTS Parts Diagram

30" Snow Blower

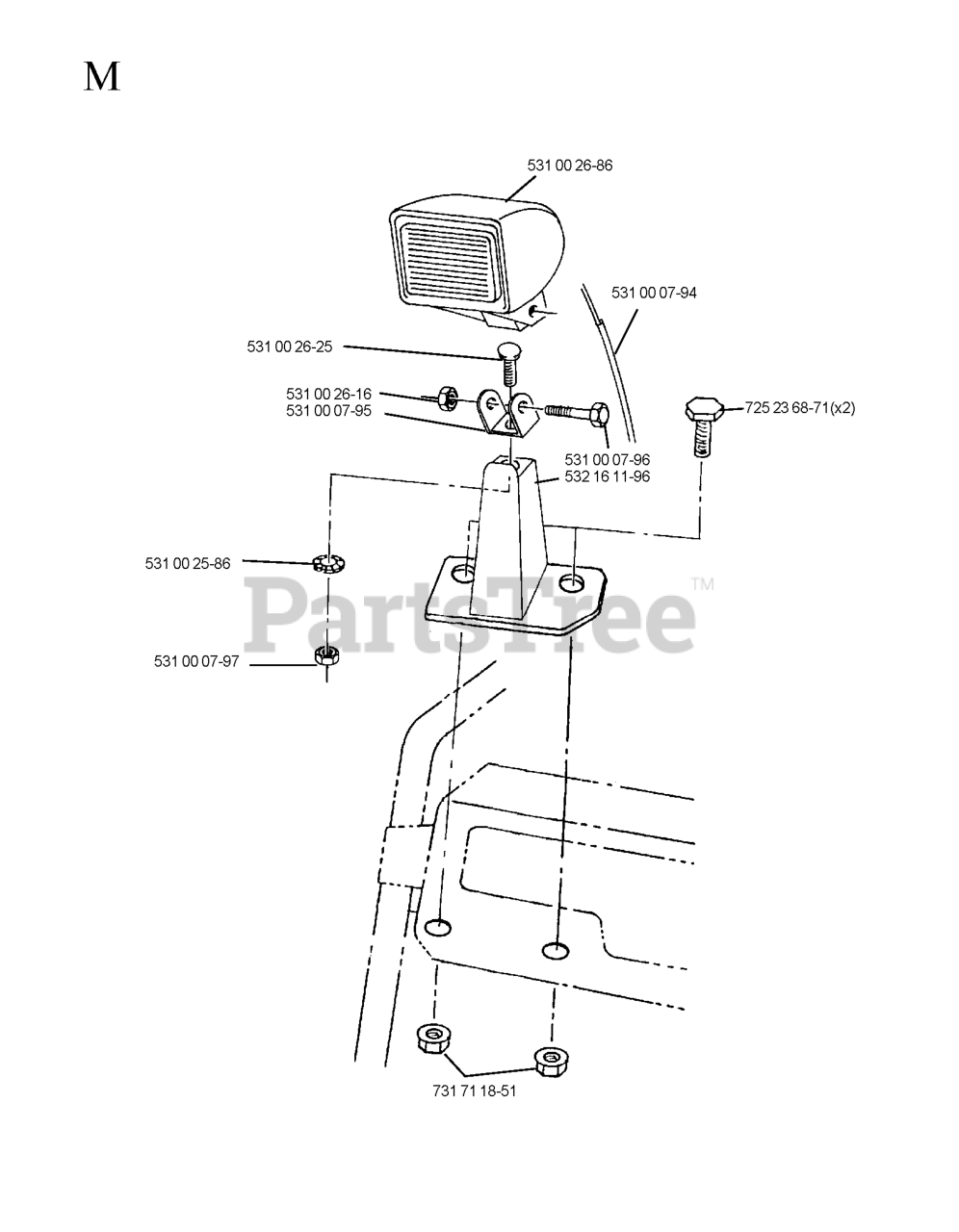

HEADLIGHTS Parts Diagram

  • Title
531 00 07-95

Husqvarna 531000795

BRACKET LIGHT PIVOT, LIGHT ASY
(Superseded to 531002687)

$

$

Not available

725 23 68-71

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

531 00 26-16

Husqvarna 531002616

NUT LOCK CENTRE - 5/16-18

$

$

Not available

731 71 18-51

Husqvarna 731711851

NUT FLANGE - M8
(Superseded to 532155901)

$

$

Not available

531 00 07-94

Husqvarna 531000794

SLEEVE - WIRE PROTECTOR

$

$

Not available

531 00 25-86

Husqvarna 531002586

WASHER SPLIT LOCK - 5/16

$

$

Not available

531 00 07-96

Husqvarna 531000796

BOLT FLANGE - 5/16-18X2"

$

$

Not available

532 16 11-96

Husqvarna 532161196

LIGHT BRACKET

$

$

Not available

531 00 07-97

Husqvarna 531000797

NUT - 5/16-18

$

$

Not available

531 00 26-25

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

$

$

Not available

531 00 26-86

Husqvarna 531002686

LIGHT ASSEMBLY

$

$

Not available
