10-30 - Husqvarna 30" Snow Blower (1999-10) FRAME Parts Diagram

30" Snow Blower

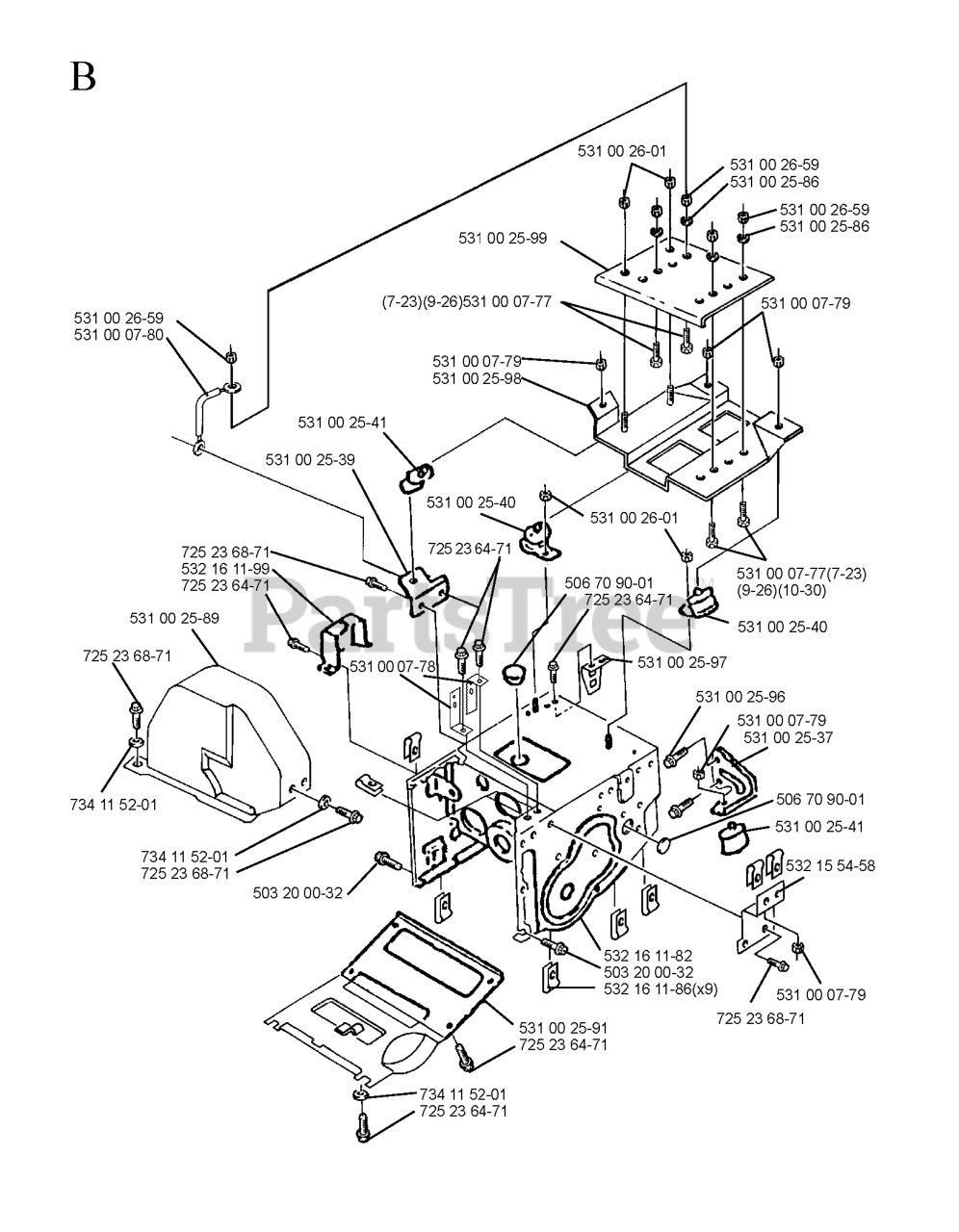

FRAME Parts Diagram

  • Title
531 00 25-96

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

532 16 11-86

$

$

Not available

725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

503 20 00-32

Husqvarna 503200032

BOLT FLANGE - M8X16

$

$

Not available

531 00 25-37

$

$

Not available

531 00 26-59

Husqvarna 531002659

NUT - 5/16-24

$

$

Not available

725 23 68-71

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

531 00 25-98

Husqvarna 531002598

ISO MOUNT BASE ASSY

$

$

Not available

531 00 25-97

Husqvarna 531002597

CLUTCH FORK SUPP BRKT ASSY

$

$

Not available

531 00 07-79

Husqvarna 531000779

NUT FLANGE SERRATED - 3/8-16

$

$

Not available

531 00 25-41

$

$

Not available

531 00 25-99

Husqvarna 531002599

ENGINE ADAPTOR PLATE

$

$

Not available

531 00 07-77

Husqvarna 531000777

BOLT FLANGE - 5/16-24X1.75"

$

$

Not available

531 00 07-80

Husqvarna 531000780

WIRE - GROUND, ENGINE/FRAME

$

$

Not available

531 00 25-39

Husqvarna 531002539

ISO MNT SUPPORT BRKT RH/FR

$

$

Not available

531 00 26-01

Husqvarna 531002601

NUT FLANGE SERRATED - 5/16-18

$

$

Not available

531 00 25-40

$

$

Not available

532 16 11-82

Husqvarna 532161182

HOUSING
(Superseded to 531002590)

$

$

Not available

531 00 07-78

Husqvarna 531000778

FLAT BELT GUIDE ASSY - "B"

$

$

Not available

734 11 52-01

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, only 2 left!

0

531 00 25-89

Husqvarna 531002589

COVER - BELT BLK

$

$

Not available

531 00 25-86

Husqvarna 531002586

WASHER SPLIT LOCK - 5/16

$

$

Not available

506 70 90-01

Husqvarna 506709001

CAP - RUBBER

$

$

Not available

532 15 54-58

Husqvarna 532155458

REPL BY 506 70 93-01
(Superseded to 506709301)

$

$

Not available

532 16 11-99

Husqvarna 532161199

BRACKET
(Superseded to 506709301)

$

$

Not available

531 00 25-91

Husqvarna 531002591

BOTTOM PANEL ASSY

$

$

Not available
