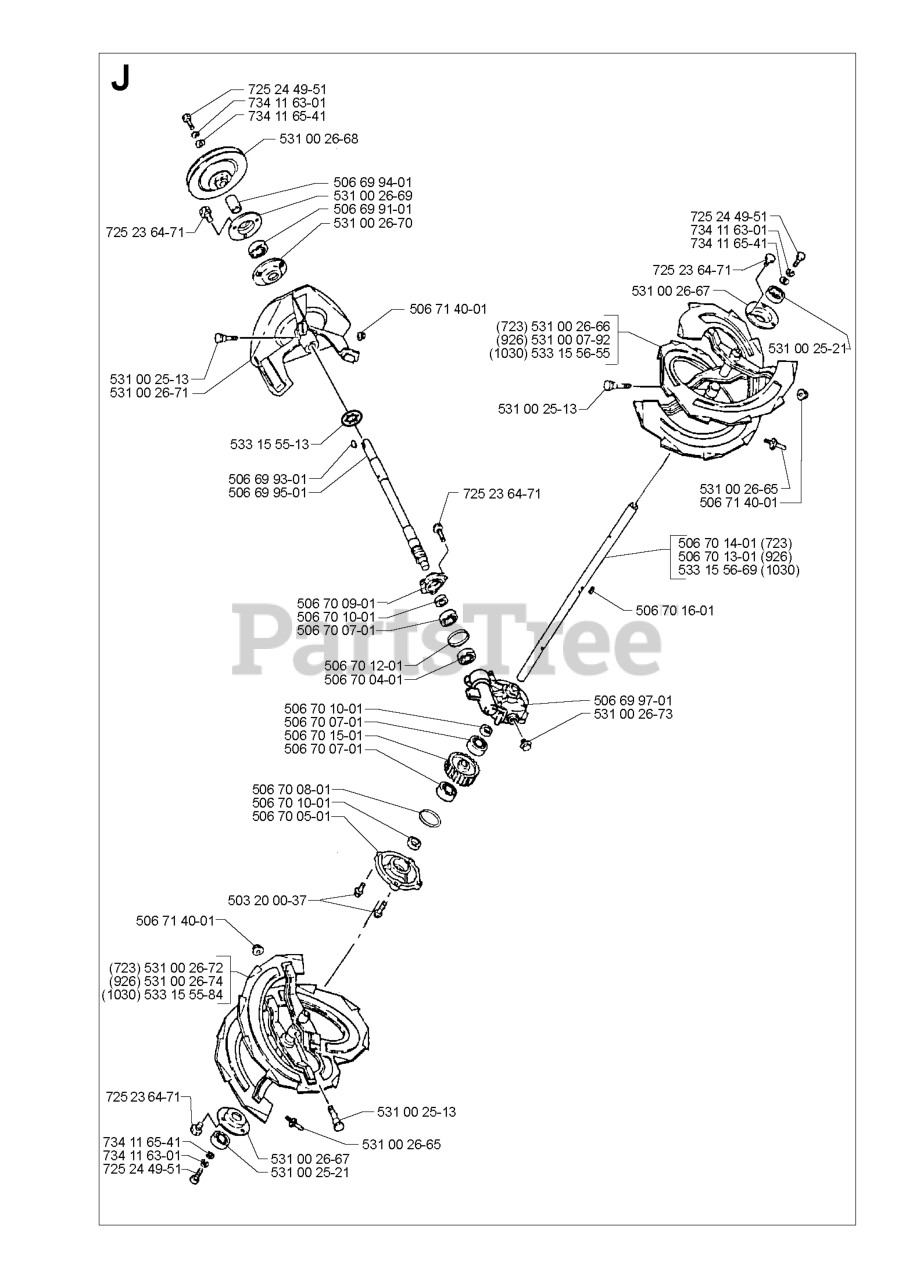

10-30 - Husqvarna 30" Snow Blower (1996-12) AUGER HOUSING & IMPELLER 2 Parts Diagram

30" Snow Blower

AUGER HOUSING & IMPELLER 2 Parts Diagram

  • Title
506 70 12-01

$

$

Not available

506 69 95-01

$

$

Not available

531 00 26-67

Husqvarna 531002667

AUGER SHAFT BRNG COVER ASSY
(Superseded to 532173859)

$

$

Not available

506 70 15-01

Husqvarna 506701501

GEAR - WORM, GB

$

$

Not available

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

506 69 93-01

$

$

Not available

725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

531 00 26-66

Husqvarna 531002666

AUGER ASSY 23" LH

$

$

Not available

531 00 26-65

$

$

Not available

506 70 10-01

Husqvarna 506701001

SEAL OIL - COVER SIDE

$

$

Not available

506 70 04-01

Husqvarna 506700401

BEARING - 6002-OP

$

$

Not available

503 20 00-37

Husqvarna 503200037

BOLT FLANGE - M6X20
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

533 15 55-13

$

$

Not available

506 71 40-01

Husqvarna 506714001

NUT FLANGE LOCK TOP - M6

$5.99

$

Usually ships in 3-10 days

0

725 24 49-51

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

506 70 07-01

Husqvarna 506700701

BEARING - 6004 - OP

$

$

Not available

506 70 05-01

Husqvarna 506700501

COVER SIDE - AUGER BOX

$

$

Not available

506 70 09-01

Husqvarna 506700901

COVER END - AUGER GEAR BOX

$

$

Not available

533 15 56-69

Husqvarna 533155669

SHAFT AUGER 30"

$

$

Not available

531 00 26-71

Husqvarna 531002671

IMPELLER ASSY

$

$

Not available

531 00 25-21

Husqvarna 531002521

BEARING - 6004-DDU-C3
(Superseded to 738210404)

$103.99

$

In Stock, Qty 20+

0

506 70 08-01

$

$

Not available

506 70 16-01

$

$

Not available

506 69 91-01

Husqvarna 506699101

BEARING - 6203-DDU-C3

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

506 70 14-01

Husqvarna 506701401

SHAFT - AUGER 23"

$

$

Not available

533 15 56-55

Husqvarna 533155655

AUGER ASM 30" LH

$

$

Not available

506 69 97-01

Husqvarna 506699701

HOUSING-AUGER GEAR BOX

$

$

Not available

506 69 94-01

Husqvarna 506699401

SPACER - IMPELLER PULLEY

$

$

Not available

531 00 26-68

Husqvarna 531002668

PULLEY 7.5"X0.669" - BLOWER

$

$

Not available

531 00 26-74

Husqvarna 531002674

AUGER ASSY 26" RH

$

$

Not available

531 00 26-73

Husqvarna 531002673

DRAIN PLUG - NRT-1/4-18
(Superseded to 506699801)

$

$

Not available

531 00 25-13

Husqvarna 531002513

SHEAR BOLT - IMPELLER/AUGER
(Superseded to 506690001)

$

$

Not available

531 00 26-72

Husqvarna 531002672

AUGER ASSY 23" RH
(Superseded to 506702001)

$

$

Not available

531 00 26-70

Husqvarna 531002670

IMPELLER SHAFT BRNG COV ASSY

$

$

Not available

531 00 26-69

Husqvarna 531002669

IMPELLER SHAFT BRNG - OUTER CO
(Superseded to 506698901)

$

$

Not available

506 70 13-01

Husqvarna 506701301

SHAFT - AUGER 26"

$

$

Not available

533 15 55-84

Husqvarna 533155584

AUGER 30 RH ASM

$

$

Not available

531 00 07-92

Husqvarna 531000792

AUGER ASSY 26" LH

$

$

Not available
