1-8752 - Toro Lawn Ranger Lawn Tractor (1970) Parts List For Lawn Ranger Model 5-8322 Parts Diagram

Lawn Ranger Lawn Tractor

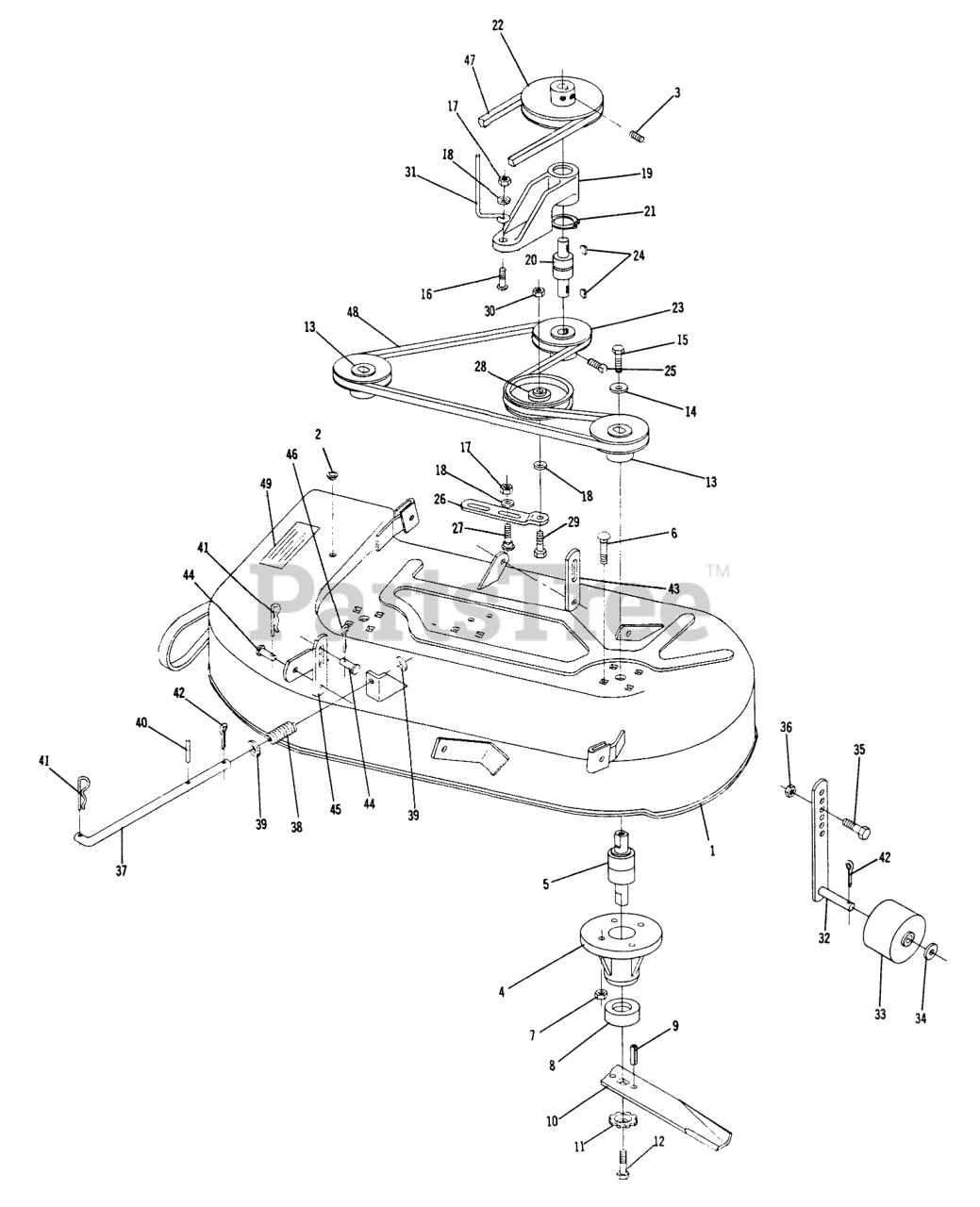

Parts List For Lawn Ranger Model 5-8322 Parts Diagram

  • Title

1

Toro 100595

DISCONTINUED

$

$

Not available

2

Toro 100146

Plug Button

$

$

Currently unavailable

3

Toro 909862-5

Set Screw

$

$

Currently unavailable

4

Toro 8389

DISCONTINUED
(Superseded to 101525)

$

$

Not available

5

Toro 103119

DISCONTINUED

$

$

Not available

6

Toro 900234-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

7

Toro 915980-4

Nut Crownlock 3/8-16

$

$

Currently unavailable

8

Toro 8200

See Supercession: 3716
(Superseded to 3716)

$

$

Not available

9

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

10

Toro 6758

DISCONTINUED
(Superseded to 100202)

$

$

Not available

11

Toro 1336

DISCONTINUED

$

$

Not available

12

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

13

Toro 9467

See Supercession: 101230
(Superseded to 101230)

$

$

Not available

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Toro 903032-6

Bolt 3/8-16 x 3/4 Nylok

$

$

Currently unavailable

16

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

17

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

18

Toro 920039-4

Washer

$

$

Currently unavailable

19

Toro 8971

DISCONTINUED
(Superseded to 104176-01)

$

$

Not available

20

Toro 8970

Bearing-Integral Shaft 5/8

$

$

Currently unavailable

21

Toro 936021

See Supercession: 32120-10
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

22

Toro 9466

DISCONTINUED
(Superseded to 102724)

$

$

Not available

23

Toro 9468

See Supercession: 102723
(Superseded to 102723)

$122.99

$

Usually ships in 3-6 days

0

24

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

25

Toro 909539-4

Set Screw-5/16-18 x 3/8

$

$

Currently unavailable

26

Toro 8978

DISCONTINUED

$

$

Not available

27

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

28

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$34.99

$

Usually ships in 3-6 days

0

29

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

30

Toro 915980-4

Nut Crownlock 3/8-16

$

$

Currently unavailable

31

Toro 8246

DISCONTINUED

$

$

Not available

32

Toro 9629

DISCONTINUED

$

$

Not available

33

Toro 100285

ROLLER ASSY

$

$

Not available

34

Toro 920011-4

Washer

$

$

Currently unavailable

35

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

36

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

37

Toro 9489

Rod-Link
(Superseded to 741214)

$

$

Not available

38

Toro 100160

Spring

$

$

Currently unavailable

39

Toro 920010-4

Washer

$

$

Currently unavailable

40

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

41

Toro 933505-4

Hairpin

$

$

Currently unavailable

42

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

43

Toro 8977

LIFT LINK

$

$

Not available

44

Toro 932961-4

Clevis Pin 3/8 x 3/4

$

$

Currently unavailable

45

Toro 100055

See Supercession: 8977
(Superseded to 8977)

$

$

Not available

46

Toro 932008-4

Hairpin

$

$

Currently unavailable

47

Toro 8975

DISCONTINUED

$

$

Not available

48

Toro 8976

DISCONTINUED
(Superseded to 104865)

$

$

Not available

49

Toro 4570

See Supercession: 93-1122
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0
