1-7751 - Toro Charger V7 Lawn Tractor (1970) Parts List 5074 Transmission Parts Diagram

Charger V7 Lawn Tractor

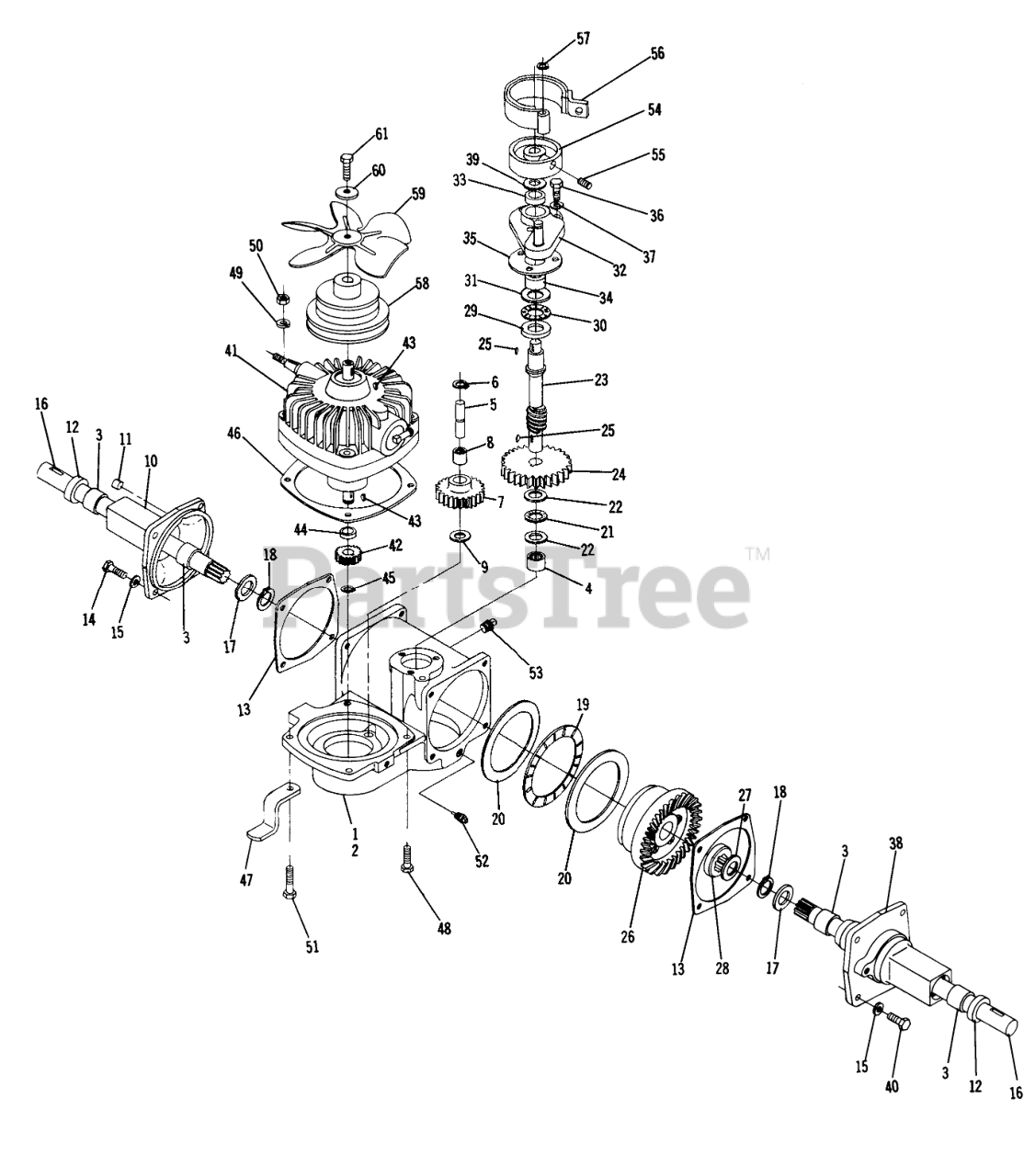

Parts List 5074 Transmission Parts Diagram

  • Title

1

Toro 100175

Transmission Less Pump Brake Ass-y.

$

$

Currently unavailable

2

Toro 7935

Housing

$

$

Currently unavailable

3

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

4

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

5

Toro 7944

DISCONTINUED

$

$

Not available

6

Toro 936117

See Supercession: 32151-84
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

7

Toro 7945

DISCONTINUED

$

$

Not available

8

Toro 7946

DISCONTINUE

$

$

Not available

9

Toro 7947

RACE THRUST

$7.99

$

Usually ships in 3-6 days

0

10

Toro 8019

DISCONTINUED

$

$

Not available

11

Toro 8016

DISCONTINUED

$

$

Not available

12

Toro 100607

DISCONTINUED

$

$

Not available

13

Toro 7936

DISCONTINUED

$

$

Not available

14

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

15

Toro 920083-4

Lockwasher

$

$

Currently unavailable

16

Toro 100170

DISCONTINUED

$

$

Not available

17

Toro 7938

DISCONTINUED

$

$

Not available

18

Toro 7939

See Supercession: 32151-36
(Superseded to 32151-36)

$4.99

$

In Stock, only 4 left!

0

19

Toro 7954

DISCONTINUED

$

$

Not available

20

Toro 7955

DISCONTINUED

$

$

Not available

21

Toro 8571

See Supercession: 99-3836
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

22

Toro 7956

See Supercession: 702982
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

23

Toro 7953

DISCONTINUED

$

$

Not available

24

Toro 7957

DISCONTINUED

$

$

Not available

25

Toro 937086

KEY WOODRUFF

$

$

Not available

26

Toro 100173

BULLT 325

$

$

Not available

27

Toro 100258

DISCONTINUED

$

$

Not available

28

Toro 100178

Bearing Axle

$

$

Currently unavailable

29

Toro 7962

DISCONTINUED

$

$

Not available

30

Toro 7960

DISCONTINUE

$

$

Not available

31

Toro 7961

Rae-Thrust

$

$

Currently unavailable

32

Toro 100338

DISCONTINUED

$

$

Not available

33

Toro 100608

DISCONTINUED

$

$

Not available

34

Toro 7959

DISCONTINUED

$

$

Not available

35

Toro 7964

DISCONTINUED

$

$

Not available

36

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

37

Toro 920082-4

Lockwasher

$

$

Currently unavailable

38

Toro 7937

Housing Axle L.H.

$

$

Currently unavailable

39

Toro 7418

WASHER-THRUST

$7.49

$

In Stock, only 4 left!

0

40

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

41

Toro 7948

Engine Speed Control
(Superseded to 740349)

$

$

Not available

42

Toro 7949

DISCONTINUED

$

$

Not available

43

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

44

Toro 7950

See Supercession: 109447
(Superseded to 109447)

$

$

Not available

45

Toro 936122

DISCONTINUED

$

$

Not available

46

Toro 7951

DISCONTINUED

$

$

Not available

47

Toro 100445

Bracket-Stop

$

$

Currently unavailable

48

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

49

Toro 920009-4

Washer

$

$

Currently unavailable

50

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

51

Toro 908145-4

Bolt 3/8-16 x 3 3/4"

$

$

Currently unavailable

52

Toro 8015

Plug 1/4 Pipe

$

$

Currently unavailable

53

Toro 943421

DISCONTINUED

$

$

Not available

54

Toro 7965

DISCONTINUED

$

$

Not available

55

Toro 909853-5

Screw 1/4-20 x 5/8

$

$

Currently unavailable

56

Toro 7967

DISCONTINUED

$

$

Not available

57

Toro 100398

See Supercession: 105797
(Superseded to 105797)

$0.99

$

In Stock, Qty 20+

0

58

Toro 7969

DISCONTINUED

$

$

Not available

59

Toro 7970

FAN

$58.99

$

Usually ships in 3-6 days

0

60

Toro 8867

DISCONTINUED

$

$

Not available

61

Toro 908006-6

Bolt Hex 1/4-20 x 1 1/4 Nylok

$

$

Currently unavailable
