1-7741 - Toro Charger V7 Lawn Tractor (1969) TRANSMISSION PARTS LIST Parts Diagram

Charger V7 Lawn Tractor

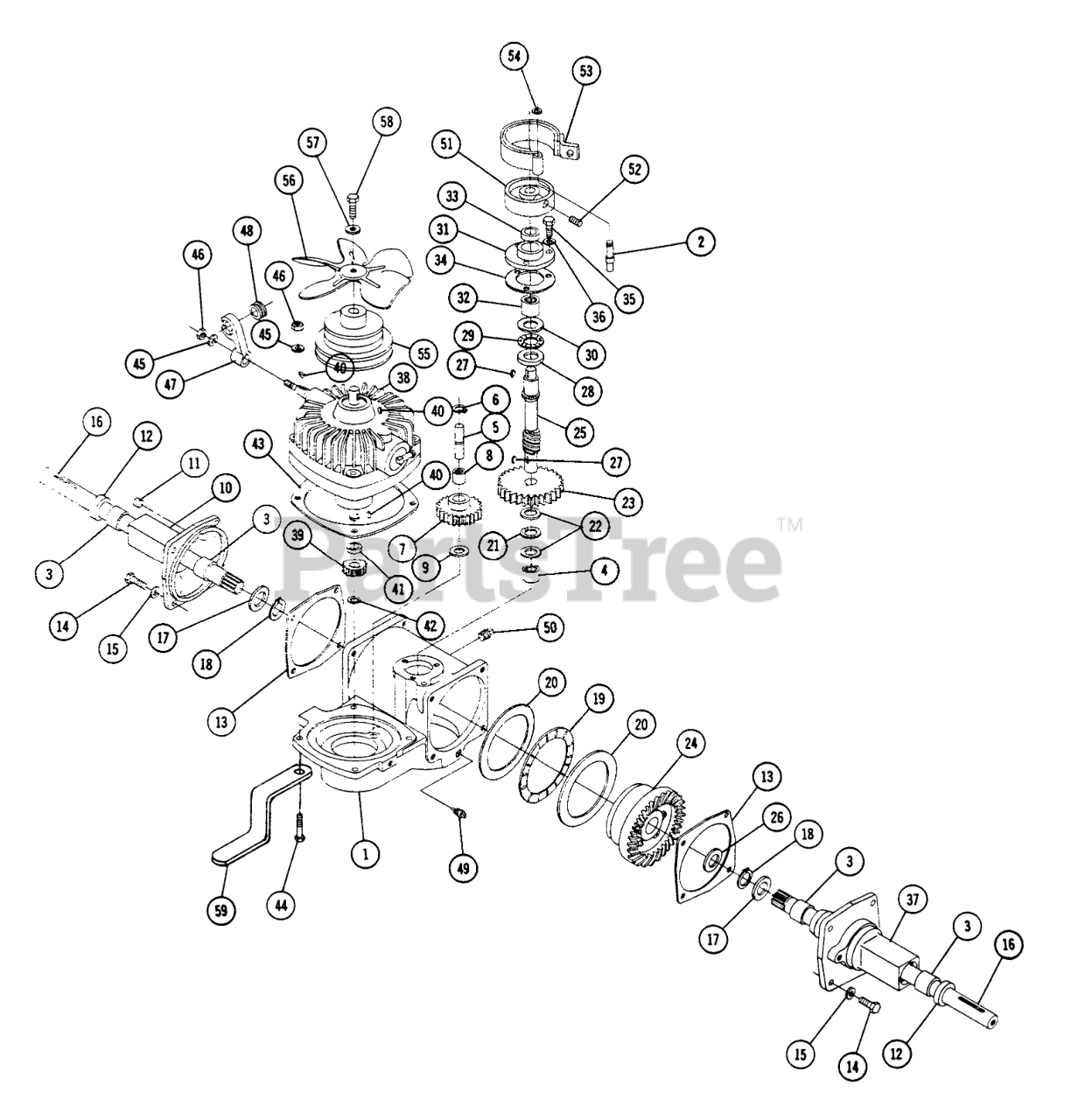

TRANSMISSION PARTS LIST Parts Diagram

  • Title

1

Toro 7935

Housing

$

$

Currently unavailable

2

Toro 7966

Pin-Pivot-Brake

$

$

Not available

3

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

4

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

5

Toro 7944

Pin-Idler Gear

$

$

Not available

6

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

7

Toro 7945

GEAR -SPUR - IDLER

$

$

Not available

8

Toro 7946

Bearing-Needle

$

$

Not available

9

Toro 7947

RACE THRUST

$7.99

$

Usually ships in 3-6 days

0

10

Toro 8019

Housing-Axle R H.

$

$

Not available

11

Toro 8016

Breather

$

$

Not available

12

Toro 5958

Seal Oil 1" I.D.
(Superseded to 100607)

$

$

Not available

13

Toro 7936

GASKET

$

$

Not available

14

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

15

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

16

Toro 8017

Axle

$

$

Not available

17

Toro 7938

Gear-36T

$

$

Not available

18

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 20+

0

19

Toro 7954

Bearing Thrust

$

$

Not available

20

Toro 7955

Race-Thrust

$

$

Not available

21

Toro 8571

BEARING-THRUST
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

22

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

23

Toro 7957

Gear-Spur-Pinion Drive

$

$

Not available

24

Toro 7952

Differential

$

$

Not available

25

Toro 7953

Pinion-Gear-Differential

$

$

Not available

26

Toro 8018

Washer

$

$

Not available

27

Toro 937086

KEY WOODRUFF

$

$

Not available

28

Toro 7962

BEARING RACE SPECIAL

$

$

Not available

29

Toro 7960

Bearing-Thrust

$

$

Not available

30

Toro 7961

Rae-Thrust

$

$

Currently unavailable

31

Toro 7958

End Cap-Pinion

$

$

Not available

32

Toro 7959

Bearing Needle

$

$

Not available

33

Toro 7963

Seal 5/8 I.D.

$

$

Not available

34

Toro 7964

GASKET END CAP

$

$

Not available

35

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

36

Toro 920082-4

Lockwasher

$

$

Currently unavailable

37

Toro 7937

Housing Axle L.H.

$

$

Currently unavailable

38

Toro 7948

Engine Speed Control
(Superseded to 740349)

$

$

Not available

39

Toro 7949

Gear-Spur-Input

$

$

Not available

40

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

41

Toro 7950

Spacer
(Superseded to 109447)

$

$

Not available

42

Toro 936122

SNAP RING

$

$

Not available

43

Toro 7951

GASKET HYDRO

$

$

Not available

44

Toro 908143-4

Bolt Hex 3/8-16 x 5

$

$

Currently unavailable

45

Toro 920009-4

Washer

$

$

Currently unavailable

46

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

47

Toro 7971

Lever-Control

$

$

Not available

48

Toro 8516

Grommet-Rubber

$

$

Currently unavailable

49

Toro 8015

Plug 1/4 Pipe

$

$

Currently unavailable

50

Toro 943421

SOLID PIPE PLUG

$

$

Not available

51

Toro 7965

Brake Drum

$

$

Not available

52

Toro 909853-5

Screw 1/4-20 x 5/8

$

$

Currently unavailable

53

Toro 7967

BRAKE BAND & LINER

$

$

Not available

54

Toro 936112

DISCONTINUED

$

$

Not available

55

Toro 7969

Pulley-Transmission

$

$

Not available

56

Toro 7970

FAN

$58.99

$

Usually ships in 3-6 days

0

57

Toro 8867

Washer-Special

$

$

Not available

58

Toro 908006-6

Bolt Hex 1/4-20 x 1 1/4 Nylok

$

$

Currently unavailable

59

Toro 9973

Bracket

$

$

Currently unavailable
