1-7235 - Toro Electro 12 Lawn Tractor (1968) 5062 Transsission Parts List Parts Diagram

Electro 12 Lawn Tractor

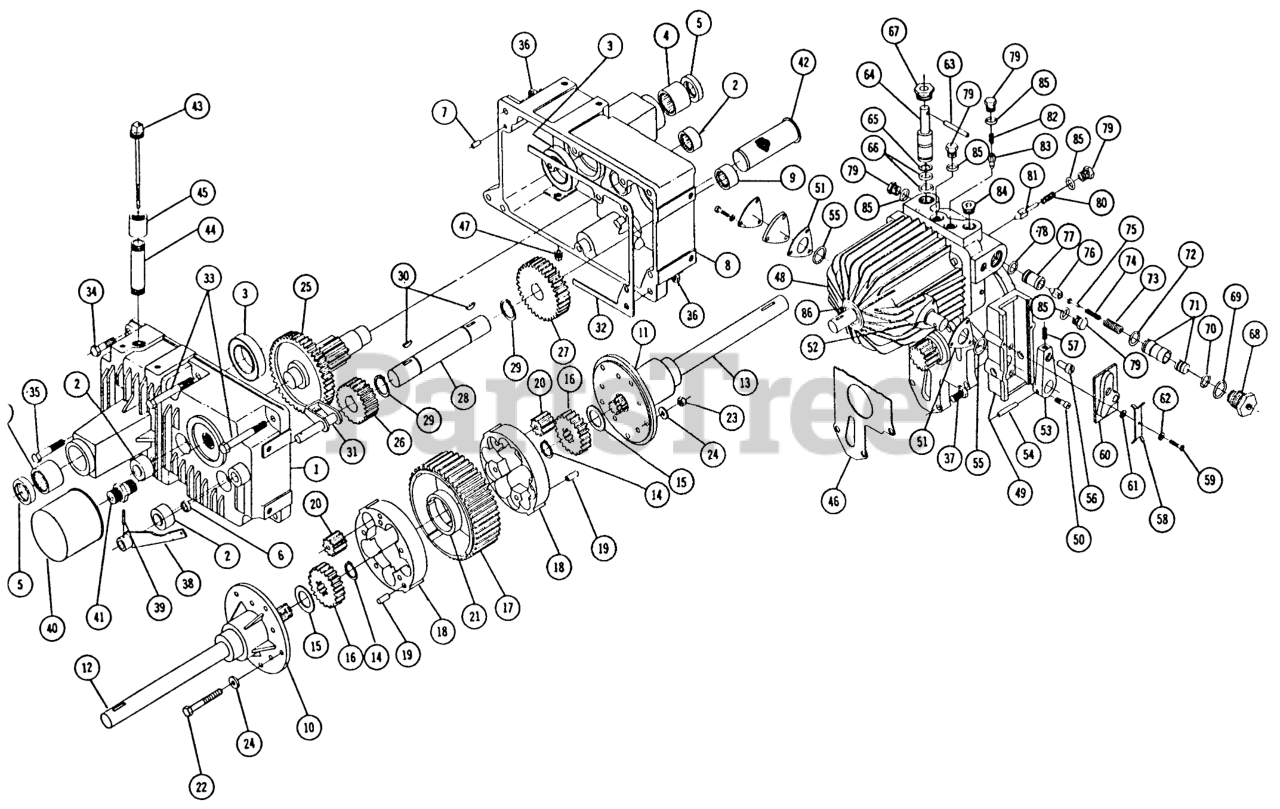

5062 Transsission Parts List Parts Diagram

  • Title

1

Toro 6454

See Supercession: 103636
(Superseded to 103636)

$

$

Not available

2

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

3

Toro 1533

DISCONTINUED

$

$

Not available

4

Toro 1526

DUP PART SEE $BOOK

$

$

Not available

5

Toro 6449

SEAL-OIL

$20.99

$

In Stock, only 1 left!

0

6

Toro 5959

DISCONTINUED

$

$

Not available

7

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

8

Toro 6455

See Supercession: 102617
(Superseded to 102617)

$

$

Not available

9

Toro 5960

DISCONTINUED

$

$

Not available

10

Toro 7194

DISCONTINUED

$

$

Not available

11

Toro 7195

DISCONTINUED

$

$

Not available

12

Toro 7202

See Supercession: 121384
(Superseded to 121384)

$

$

Not available

13

Toro 7203

DISCONTINUED
(Superseded to 121384)

$

$

Not available

14

Toro 7169

DISCONTINUED

$

$

Not available

15

Toro 7199

DISCONTINUED

$

$

Not available

16

Toro 7197

See Supercession: 8053
(Superseded to 8053)

$

$

Not available

17

Toro 7196

DISCONTINUED

$

$

Not available

18

Toro 7200

BULLT 252

$

$

Not available

19

Toro 933209

DISCONTINUED

$

$

Not available

20

Toro 7198

See Supercession: 8056
(Superseded to 8056)

$

$

Not available

21

Toro 7235

DISCONTINUED

$

$

Not available

22

Toro 908138-4

Bolt Hex 3 1/4

$

$

Currently unavailable

23

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

24

Toro 920009-4

Washer

$

$

Currently unavailable

25

Toro 6452

DISCONTINUED XREF

$

$

Not available

26

Toro 5963

DISCONTINUED

$

$

Not available

27

Toro 5964

DISCONTINUED

$

$

Not available

28

Toro 5965

DISCONTINUED

$

$

Not available

29

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

30

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 7

0

31

Toro 5966

DISCONTINUED

$

$

Not available

32

Toro 5999

DISCONTINUED

$

$

Not available

33

Toro 908143-4

Bolt Hex 3/8-16 x 5

$

$

Currently unavailable

34

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

35

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

36

Toro 915113-6

Nut

$

$

Currently unavailable

37

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

38

Toro 5969

DISCONTINUED

$

$

Not available

39

Toro 933152

See Supercession: 32121-50
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

40

Toro 5990

See Supercession: 79-5270
(Superseded to 79-5270)

$19.99

$

Usually ships in 3-6 days

0

41

Toro 5991

FITTING

$37.99

$

Usually ships in 3-6 days

0

42

Toro 5992

See Supercession: 106047
(Superseded to 106047)

$

$

Not available

43

Toro 6155

See Supercession: 6155-P
(Superseded to 6155-P)

$3.23

$

Usually ships in 3-6 days

0

44

Toro 943346-4

Nipple 1/2 Pipe x 31/2

$

$

Currently unavailable

45

Toro 943004

Coupling 1/2 Pipe

$

$

Currently unavailable

46

Toro 5955

DISCONTINUED

$

$

Not available

47

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

48

Toro 7880

SRV BULLT 437B

$

$

Not available

49

Toro 5993

DISCONTINUED

$

$

Not available

50

Toro 911037

DISCONTINUED

$

$

Not available

51

Toro 6826

DISCONTINUED

$

$

Not available

52

Toro 972116

DISCONTINUE

$

$

Not available

53

Toro 5994

Arm-Cam Follower

$

$

Currently unavailable

54

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

55

Toro 970026

RING

$

$

Not available

56

Toro 5995

DISCONTINUED

$

$

Not available

57

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

58

Toro 5998

DISCONTINUED

$

$

Not available

59

Toro 909000-4

Bolt-Rd. Heed #8-32 x 1/2

$

$

Currently unavailable

60

Toro 5996

CAM

$25.99

$

Usually ships in 3-6 days

0

61

Toro 920229-4

Washer

$

$

Currently unavailable

62

Toro 920078-4

Lockwasher

$

$

Currently unavailable

63

Toro 933196

SPIROL PIN

$

$

Not available

64

Toro 7266

DISCONTINUED

$

$

Not available

65

Toro 7268

DISCONTINUED

$

$

Not available

66

Toro 971113

DISCONTINUED

$

$

Not available

67

Toro 7267

DISCONTINUED

$

$

Not available

68

Toro 6444

DISCONTINUED

$

$

Not available

69

Toro 970118

DISCONTINUED

$

$

Not available

70

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

71

Toro 7054

DISCONTINUED

$

$

Not available

72

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

73

Toro 7264

DISCONTINUED

$

$

Not available

74

Toro 7052

DISCONTINUED

$

$

Not available

75

Toro 7051

DISCONTINUED

$

$

Not available

76

Toro 7050

DISCONTINUED

$

$

Not available

77

Toro 7049

DISCONTINUED

$

$

Not available

78

Toro 971017

DISCONTINUED

$

$

Not available

79

Toro 7752

See Supercession: 25-2460
(Superseded to 25-2460)

$42.99

$

Usually ships in 3-6 days

0

80

Toro 7753

SPRING-SUNDSTRAND

$

$

Not available

81

Toro 7754

DISCONTINUED

$

$

Not available

82

Toro 7755

Spring Charge Pump Valve

$

$

Currently unavailable

83

Toro 7756

DISCONTINUED

$

$

Not available

84

Toro 943462

DISCONTINUED

$

$

Not available

85

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

86

Toro 7877

DISCONTINUED

$

$

Not available
