1-6251 - Toro Raider 12 Lawn Tractor (1970) TRANSMISSION PARTS LIST Parts Diagram

Raider 12 Lawn Tractor

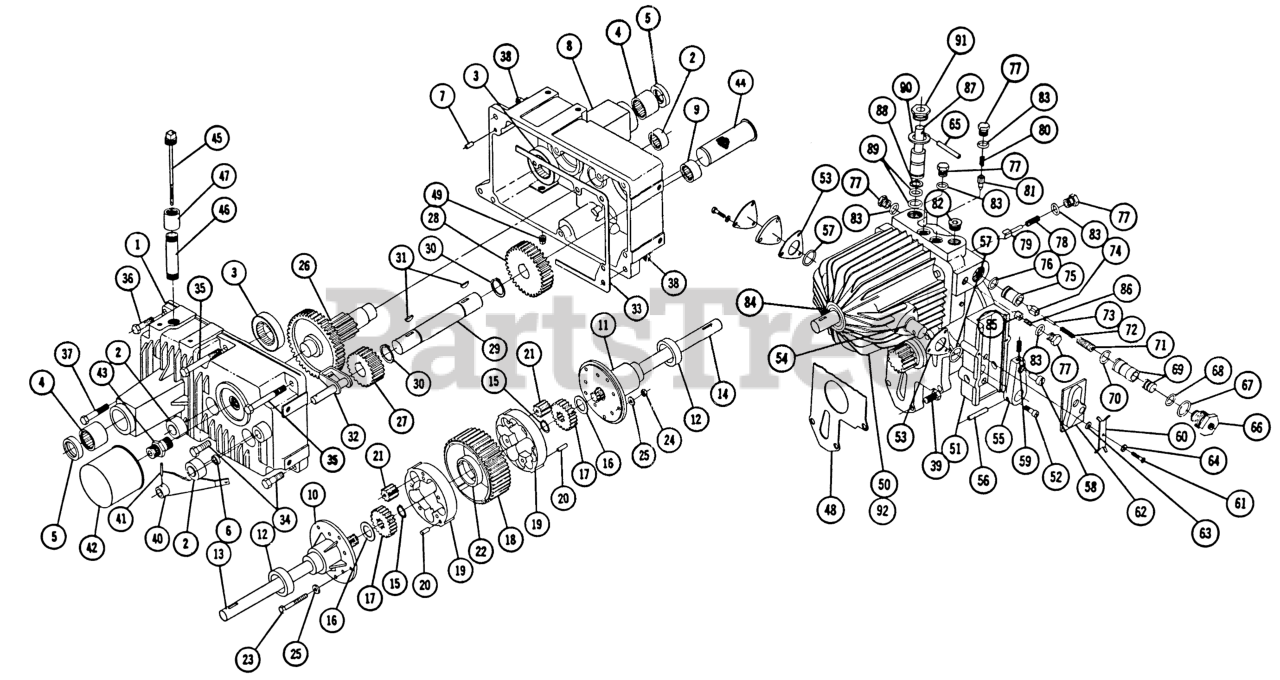

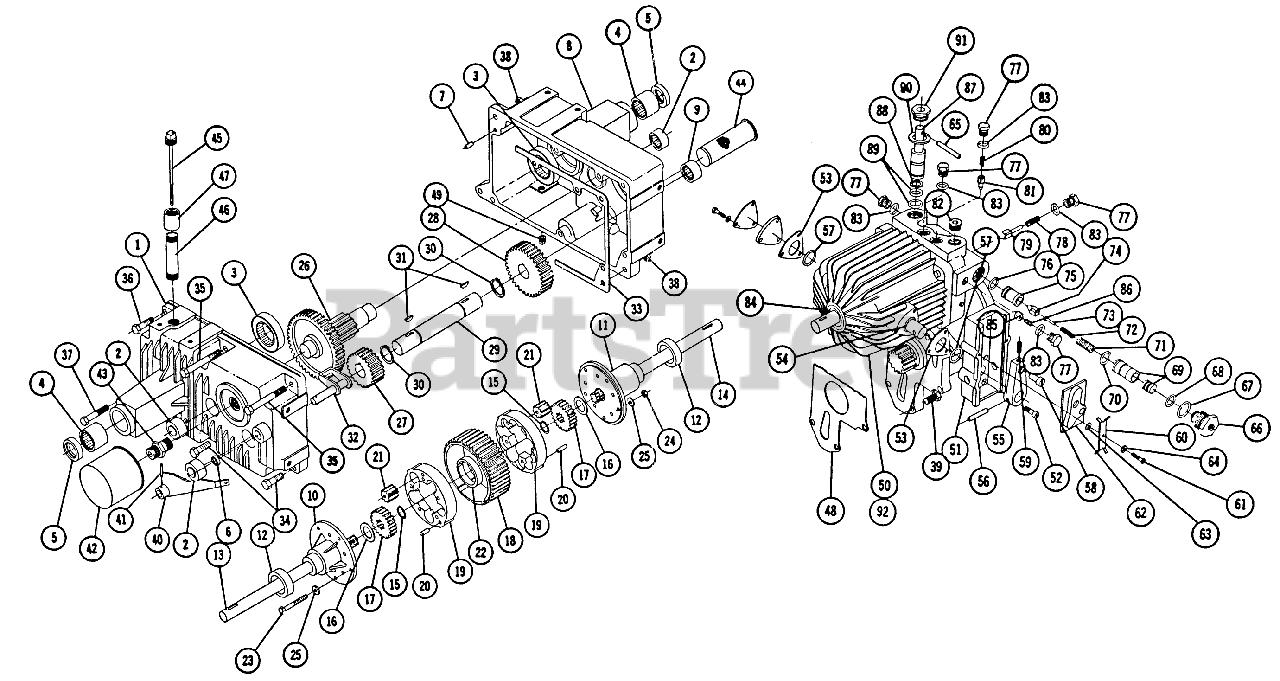

TRANSMISSION PARTS LIST Parts Diagram

  • Title

1

Toro 8046

Case RH
(Superseded to 103636)

$

$

Not available

2

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

3

Toro 8048

NEEDLE BEARING

$

$

Not available

4

Toro 1526

Bearing-Axle

$

$

Not available

5

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

6

Toro 5959

SEAL BRAKE SHAFT

$

$

Not available

7

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

8

Toro 8047

Case LH
(Superseded to 102617)

$

$

Not available

9

Toro 8049

Needle Bearing
(Superseded to 5960)

$

$

Not available

10

Toro 8050

End Cap-RH

$

$

Not available

11

Toro 8051

End Cap-LH

$

$

Not available

12

Toro 8052

RACE BEARING

$

$

Not available

13

Toro 8054

RH AXLE

$

$

Not available

14

Toro 8055

Axle-Rear L.H.
(Superseded to 8054)

$

$

Not available

15

Toro 7169

SNAP RING

$

$

Not available

16

Toro 7199

THRUST WASHER

$

$

Not available

17

Toro 8053

SIDE GEAR

$

$

Not available

18

Toro 7196

Gear-Ring

$

$

Not available

19

Toro 7200

Body

$

$

Not available

20

Toro 933209

SPIROL ROLL PIN

$

$

Not available

21

Toro 8056

PINION

$

$

Not available

22

Toro 7235

Spring

$

$

Not available

23

Toro 908138-4

Bolt Hex 3 1/4

$

$

Currently unavailable

24

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

25

Toro 920009-4

Washer

$

$

Currently unavailable

26

Toro 6452

Gear

$

$

Not available

27

Toro 5963

GEAR

$

$

Not available

28

Toro 8057

Gear-35T

$

$

Not available

29

Toro 5965

SHAFT GEAR

$

$

Not available

30

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

31

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

32

Toro 5966

Assy.-Park Brake

$

$

Not available

33

Toro 5999

GASKET

$

$

Not available

34

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

35

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

36

Toro 908039-4

Bolt 3/8-16 x 2 1/4

$

$

Currently unavailable

37

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

38

Toro 915113-6

Nut

$

$

Currently unavailable

39

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

40

Toro 8058

Lever-Brake

$

$

Not available

41

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

42

Toro 5990

Filter
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

43

Toro 5991

FITTING

$

$

Not available

44

Toro 5992

Strainer
(Superseded to 106047)

$

$

Not available

45

Toro 6155

Dipstick
(Superseded to 6155-P)

$3.23

$

Usually ships in 3-6 days

0

46

Toro 943346-4

Nipple 1/2 Pipe x 31/2

$

$

Currently unavailable

47

Toro 943004

Coupling 1/2 Pipe

$

$

Currently unavailable

48

Toro 5955

GASKET PUMP

$

$

Not available

49

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

50

Toro 8061

Hydro-Gear Unit (New)

Note: Model 1-0501 Uses 100385 Hydro-Gear (Double "D" Input Shaft

$

$

Not available

51

Toro 5993

SUPPORT CAM BLOCK

$

$

Not available

52

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

53

Toro 6826

Shim

$

$

Not available

54

Toro 972116

O-Ring

$

$

Not available

55

Toro 5994

Arm-Cam Follower

$

$

Currently unavailable

56

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

57

Toro 970026

RING

$

$

Not available

58

Toro 5995

ECC CAM FOLLOWER

$

$

Not available

59

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

60

Toro 5998

TENSION PLATE

$

$

Not available

61

Toro 909000-4

Bolt-Rd. Heed #8-32 x 1/2

$

$

Currently unavailable

62

Toro 5996

CAM

$

$

Not available

63

Toro 920229-4

Washer

$

$

Currently unavailable

64

Toro 920078-4

Lockwasher

$

$

Currently unavailable

65

Toro 933196

SPIROL PIN

$

$

Not available

66

Toro 6444

Ass-y Dampening Valve & Ring

$

$

Not available

67

Toro 970118

O RING

$

$

Not available

68

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

69

Toro 7054

Ass-y Piston & Sleeve (Matched)

$

$

Not available

70

Toro 971018

O RING

$8.99

$

In Stock, Qty 6

0

71

Toro 9858

Spring Relief Valve

$

$

Currently unavailable

72

Toro 9215

SPRING

$

$

Not available

73

Toro 7051

SUNDSTRAND 3100047

$

$

Not available

74

Toro 7050

Cone-Relief Valve

$

$

Not available

75

Toro 7049

SLEEVE RELIEF VALVE

$

$

Not available

76

Toro 971017

O RING

$

$

Not available

77

Toro 7752

Plug
(Superseded to 25-2460)

$44.99

$

Usually ships in 3-6 days

0

78

Toro 7753

SPRING-SUNDSTRAND

$

$

Not available

79

Toro 7754

Valve

$

$

Not available

80

Toro 7755

Spring Charge Pump Valve

$

$

Currently unavailable

81

Toro 6632

Cone

$

$

Not available

82

Toro 943462

PLUG

$

$

Not available

83

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0

84

Toro 7877

SEAL

$

$

Not available

85

Toro 6632

Cone

$

$

Not available

86

Toro 6631

Spring

$

$

Not available

87

Toro 7226

WIRE ASSY

$

$

Not available

88

Toro 7268

RING BACK UP

$

$

Not available

89

Toro 971113

O-Ring

$

$

Not available

90

Toro 9202

Washer

$

$

Not available

91

Toro 7267

PLUG

$

$

Not available

92

Toro 101632

Hydro-Gear Unit (Rebuilt)

$

$

Currently unavailable
