1-4831 - Toro Commando 8 Lawn Tractor (1968) 5053 Transmission Parts List Parts Diagram

Commando 8 Lawn Tractor

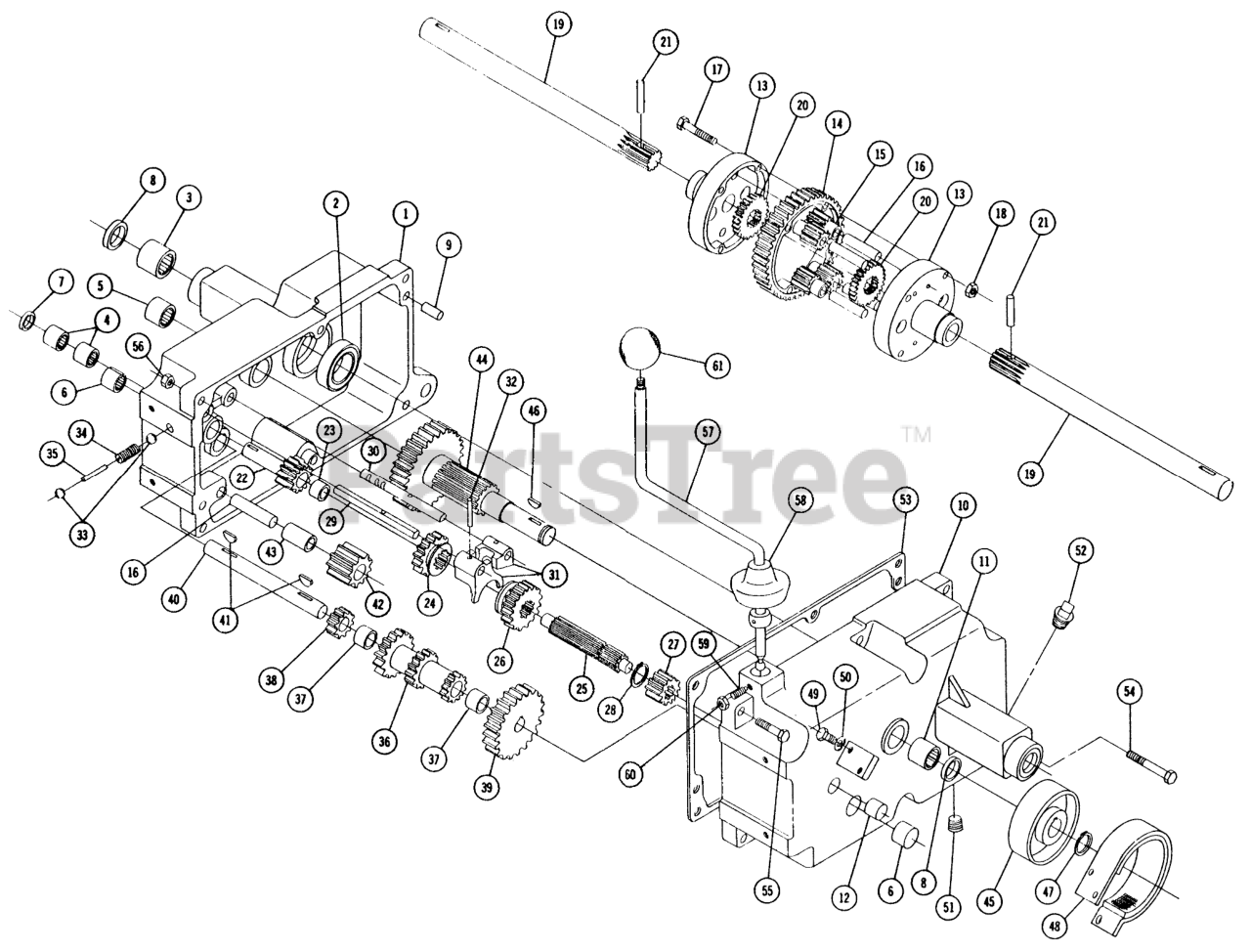

5053 Transmission Parts List Parts Diagram

  • Title

1

Toro 3900

DISCONTINUED

$

$

Not available

2

Toro 1533

DISCONTINUED

$

$

Not available

3

Toro 1528

BEARING-NEEDLE

$51.99

$

In Stock, only 1 left!

0

4

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

5

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

6

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

7

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$8.49

$

In Stock, only 1 left!

0

8

Toro 1232

See Supercession: 100863
(Superseded to 100863)

$14.99

$

In Stock, only 4 left!

0

9

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

10

Toro 3901

DISCONTINUED

$

$

Not available

11

Toro 1530

See Supercession: 704019
(Superseded to 704019)

$

$

Not available

12

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

13

Toro 3905

DIFFERENTIAL CASE

$

$

Not available

14

Toro 3906

SVC BULLT 394

$

$

Not available

15

Toro 4235

DISCONTINUED

$

$

Not available

16

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

17

Toro 908146

See Supercession: 322-20
(Superseded to 322-20)

$1.99

$

Usually ships in 3-6 days

0

18

Toro 1316

See Supercession: 108687
(Superseded to 108687)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 3904

DISCONTINUED

$

$

Not available

20

Toro 3908

AXLE GEAR

$152.99

$

Usually ships in 3-6 days

0

21

Toro 933217

DISCONTINUED

$

$

Not available

22

Toro 3522

DISCONTINUED

$

$

Not available

23

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

24

Toro 3523

DISCONTINUED

$

$

Not available

25

Toro 3907

DISCONTINUED

$

$

Not available

26

Toro 3524

DISCONTINUED

$

$

Not available

27

Toro 3526

GEAR

$

$

Not available

28

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

29

Toro 5615

RAIL-SHIFT

$116.99

$

Usually ships in 3-6 days

0

30

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

31

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

33

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

34

Toro 3518

See Supercession: 106030
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

35

Toro 5614

PIN-SHIFT

$

$

Not available

36

Toro 3525

See Supercession: 7269
(Superseded to 7269)

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

38

Toro 3528

DISCONTINUED

$

$

Not available

39

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

40

Toro 3910

DISCONTINUED

$

$

Not available

41

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 7

0

42

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$161.99

$

Usually ships in 3-6 days

0

43

Toro 1516

BUSHING

$12.99

$

Usually ships in 3-6 days

0

44

Toro 3903

DISCONTINUED XREF

$

$

Not available

45

Toro 3902

DISCONTINUED

$

$

Not available

46

Toro 937022

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

47

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

48

Toro 7376

BRAKE BAND & LINER A

$151.99

$

Usually ships in 3-6 days

0

49

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

50

Toro 920081-4

Lockwasher

$

$

Currently unavailable

51

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

52

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

53

Toro 3912

GASKET-TRANSMISSION

$8.99

$

In Stock, only 2 left!

0

54

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

55

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

56

Toro 915113-6

Nut

$

$

Currently unavailable

57

Toro 5632

See Supercession: 95-7684
(Superseded to 95-7684)

Note: Not included in No. 5053 Assembly.

$171.99

$

In Stock, only 1 left!

0

58

Toro 3577

COVER-DUST

Note: Not included in No. 5053 Assembly.

$

$

Not available

59

Toro 1239

SETSCREW

Note: Not included in No. 5053 Assembly.

$10.99

$

In Stock, Qty 8

0

60

Toro 915111-6

Nut-Nylok

Note: Not included in No. 5053 Assembly.

$

$

Currently unavailable

61

Toro 1001

DUP PART SEE $BOOK

Note: Not included in No. 5053 Assembly.

$

$

Not available
