1-0720 (B-145) - Toro Elec-Trak Lawn Tractor (1975) Lift Linkage And Hitch Parts Diagram

Elec-Trak Lawn Tractor

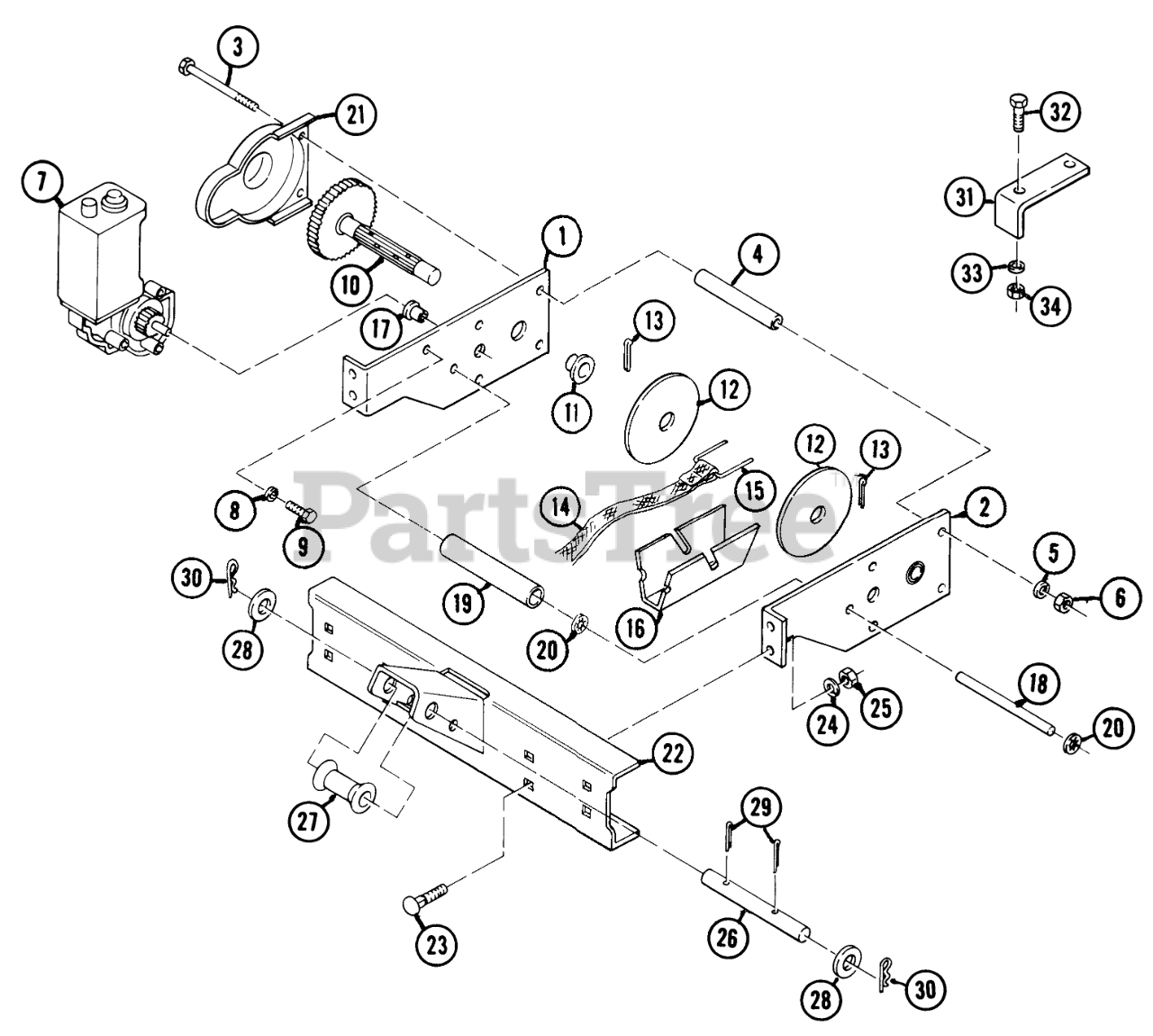

Lift Linkage And Hitch Parts Diagram

  • Title
1

Toro 521909

DISCONTINUED

$

$

Not available

2

Toro 521910

DISCONTINUED

$

$

Not available

3

Toro 513331

Bolt, Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

4

Toro 518043

DISCONTINUED

$

$

Not available

5

Toro 513513

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

6

Toro 513292

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

7

Toro 517786

Motor

$

$

Currently unavailable

8

Toro 518042

DISCONTINUED

$

$

Not available

9

Toro 513319

See Supercession: 321-5
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

10

Toro 517701

DISCONTINUED

$

$

Not available

11

Toro 517705

DISCONTINUED

$

$

Not available

12

Toro 517663

Guide Washer

$

$

Currently unavailable

13

Toro 513566

See Supercession: 3272-2
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

14

Toro 517714

See Supercession: 515877
(Superseded to 515877)

$

$

Not available

15

Toro 517355

DISCONTINUED

$

$

Not available

16

Toro 522161

DISCONTINUED

$

$

Not available

17

Toro 517703

DISCONTINUED

$

$

Not available

18

Toro 517710

DISCONTINUED

$

$

Not available

19

Toro 517711

DISCONTINUED

$

$

Not available

20

Toro 518079

DISCONTINUED

$

$

Not available

21

Toro 521940

DISCONTINUED

$

$

Not available

22

Toro 517107

DISCONTINUED

$

$

Not available

23

Toro 513635

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

24

Toro 513515

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

25

Toro 513295

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

26

Toro 517613

DISCONTINUED

$

$

Not available

27

Toro 517611

DISCONTINUED

$

$

Not available

28

Toro 513491

Washer, Plain 1/2

$

$

Not available

29

Toro 513566

See Supercession: 3272-2
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

30

Toro 517469

DISCONTINUED

$

$

Not available

31

Toro 515978

DISCONTINUED

$

$

Not available

32

Toro 513375

See Supercession: 325-5
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

33

Toro 513519

Lockwasher, 1/2

$

$

Currently unavailable

34

Toro 513416

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0
