1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1977) LIFT LINKAGE AND HITCH Parts Diagram

Elec-Trak Lawn Tractor

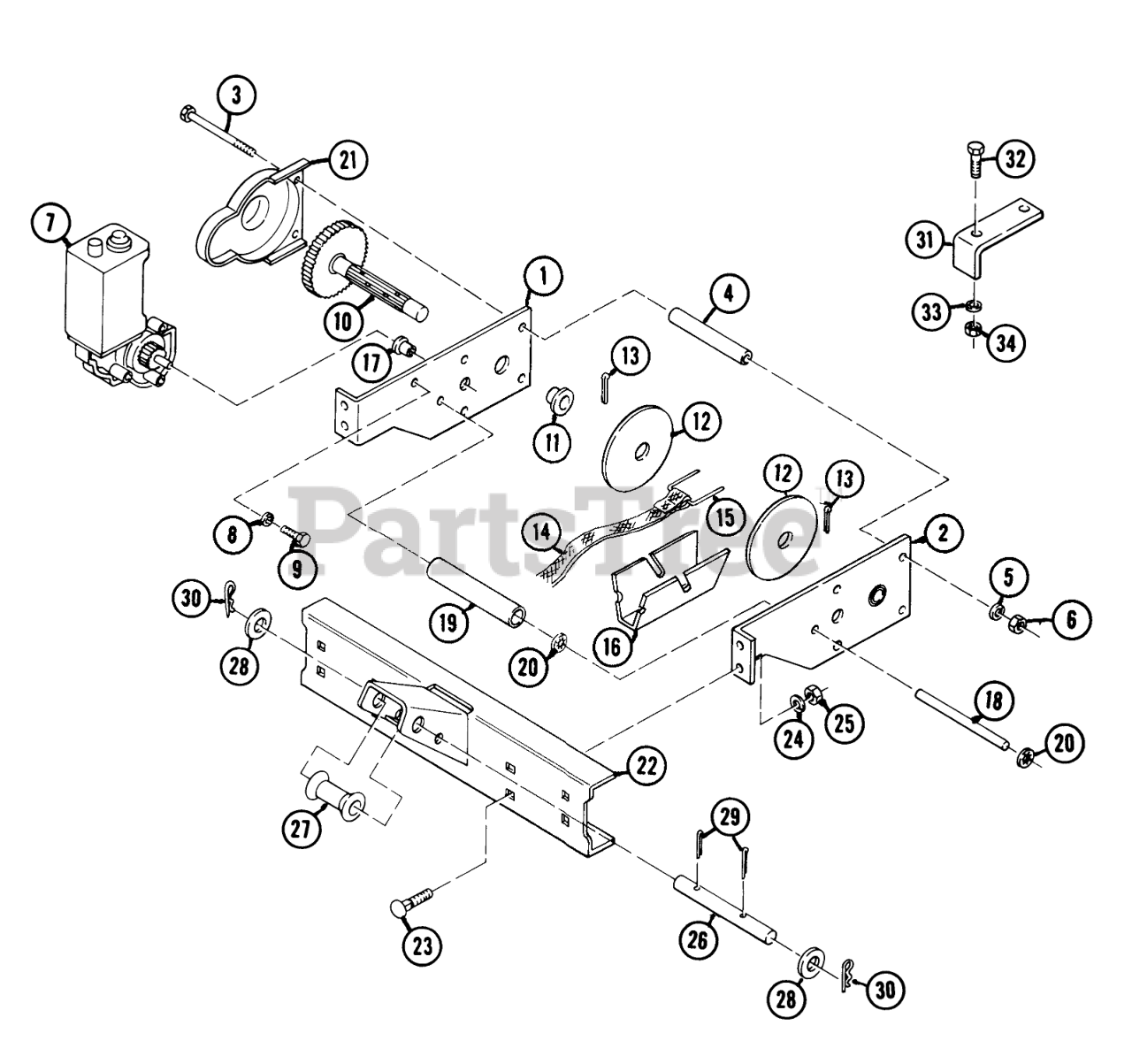

LIFT LINKAGE AND HITCH Parts Diagram

  • Title
7-01

Toro 521909

Support, Right

$

$

Not available

7-02

Toro 521910

Support, Left

$

$

Not available

7-03

Toro 513331

Bolt, Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

7-04

Toro 518043

Spacer

$

$

Not available

7-05

Toro 513513

Lockwasher 1/4
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

7-06

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

7-07

Toro 517786

Motor

$

$

Currently unavailable

7-08

Toro 518042

Spacer

$

$

Not available

7-09

Toro 513319

Hex Bolt 1/4-20 x 7/8
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

7-10

Toro 517701

Gear Assembly

$

$

Not available

7-11

Toro 517705

Bearing, Flgd.

$

$

Not available

7-12

Toro 517663

Guide Washer

$

$

Currently unavailable

7-13

Toro 513566

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

7-14

Toro 517714

Lift Strap
(Superseded to 515877)

$

$

Not available

7-15

$

$

Not available

7-16

Toro 522161

Guard, Lift Strap

$

$

Not available

7-17

Toro 517703

Flanged Bearing

$

$

Not available

7-18

Toro 517710

Shaft

$

$

Not available

7-19

Toro 517711

Sleeve

$

$

Not available

7-20

Toro 518079

Push Nut

$

$

Not available

7-21

Toro 521940

Gear Cover

$

$

Not available

7-22

Toro 517107

Lift Yoke & Bumper

$

$

Not available

7-23

Toro 513635

Carriage Bolt, 5/16-18 x 1
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

7-24

Toro 513515

Lockwasher-5/16
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

7-25

Toro 513295

Cotter Pin
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7-26

Toro 517613

Shaft

$

$

Not available

7-27

Toro 517611

Spool

$

$

Not available

7-28

Toro 513491

Washer, Plain 1/2

$

$

Not available

7-29

Toro 513566

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

7-30

Toro 517469

Hairpin Cotter

$

$

Not available

7-31

Toro 515978

Extension Bar (Draw Bar Hitch)

$

$

Not available

7-32

Toro 513375

Bolt, Hex 1/2-13 x 1 1/4
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

7-33

Toro 513519

Lockwasher, 1/2

$

$

Currently unavailable

7-34

Toro 513416

Nut, Hex 1/2-13
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0
