1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1977) BRAKE LINKAGE Parts Diagram

Elec-Trak Lawn Tractor

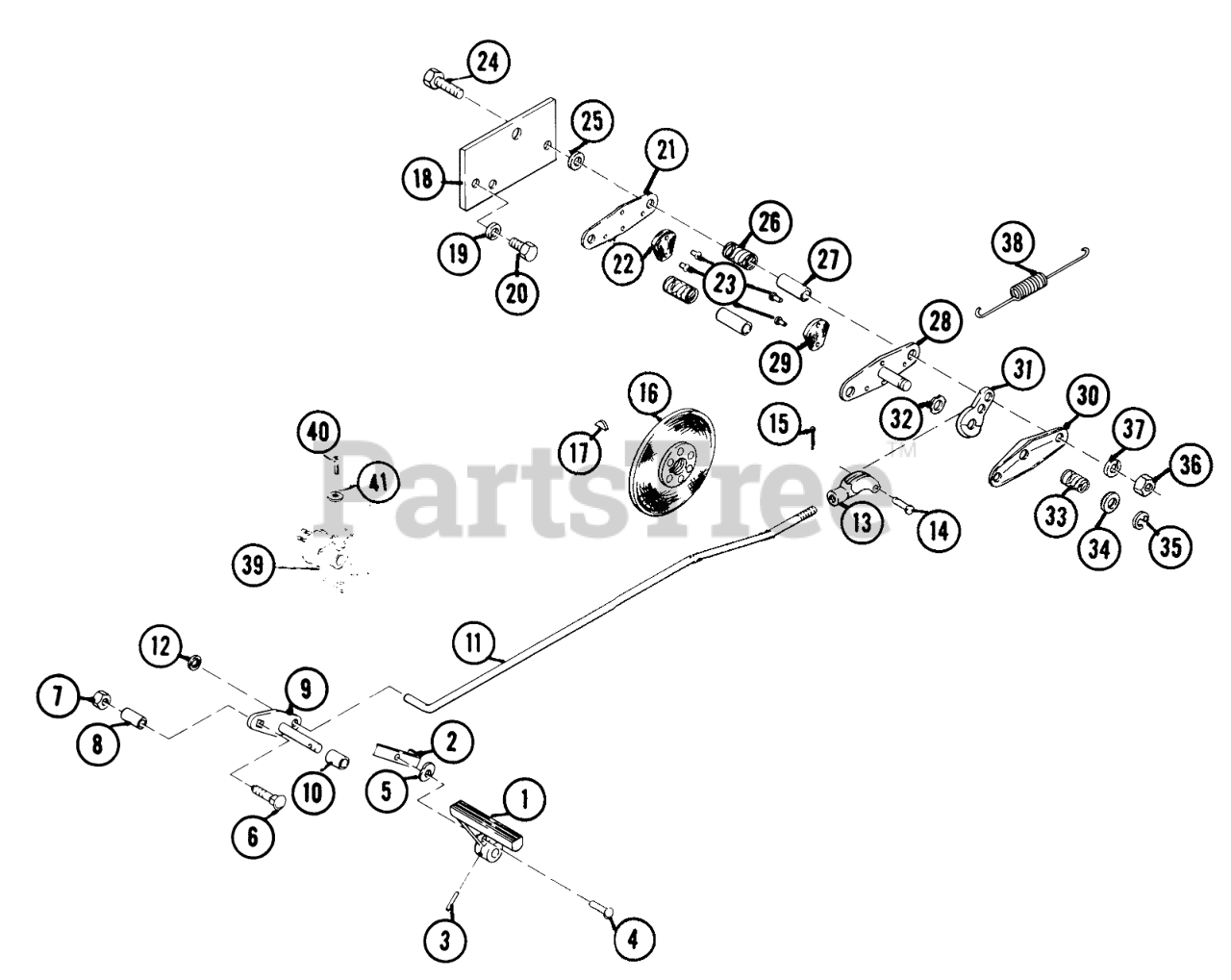

BRAKE LINKAGE Parts Diagram

  • Title

6-01

Toro 522201

Brake Pedal

$

$

Not available

6-02

Toro 517566

Lever, Parking Brake

$

$

Not available

6-03

Toro 513588

Spring Dowel Pin, .156 Dia. x 1.12
(Superseded to 933172)

$

$

Not available

6-04

Toro 518767

Rivet

$

$

Currently unavailable

6-05

Toro 517828

Curved Washer

$

$

Not available

6-06

Toro 513622

Carriage Bolt, 1/4-20 x 1 1/2

$

$

Not available

6-07

Toro 513421

Locknut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

6-08

Toro 518051

Spacer

$

$

Not available

6-09

Toro 518896

Shaft Assembly

$

$

Not available

6-10

Toro 518052

Spacer

$

$

Not available

6-11

Toro 517282

Brake Rod

$

$

Not available

6-12

Toro 517592

Push Nut

$

$

Not available

6-13

Toro 519344

Clevis, Brake Rod

$

$

Not available

6-14

Toro 517637

Clevis Pin

$

$

Not available

6-15

Toro 513567

Cotter Pin 3/32 x 3/4
(Superseded to 3-2726)

$

$

Not available

6-16

Toro 519162

Disc Assembly

$

$

Not available

6-17

Toro 513441

Key, 3/16 x 3/4

$

$

Not available

6-18

Toro 520021

Mounting Plate, Brake to Transmission

$

$

Not available

6-19

Toro 513527

Lockwasher, 3/8
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

6-20

Toro 513356

Bolt, Hex 3/8-16 x 3/4
(Superseded to 110234)

$5.49

$

In Stock, only 1 left!

0

6-21

Toro 519247

Inner Brake Pad (with Lining)

$

$

Currently unavailable

6-22

Toro 519241

Lining, Inner Pad

$

$

Currently unavailable

6-23

Toro 519251

Rivet

$

$

Currently unavailable

6-24

Toro 513327

Bolt, Hex 1/4-20
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

6-25

Toro 513490

Washer, 1/4 Plain
(Superseded to 920037)

$

$

Not available

6-26

Toro 523030

Spring, (Pad to Pad)

$

$

Not available

6-27

Toro 519252

Bushing, Split (Pad to Pad)

$

$

Currently unavailable

6-28

Toro 516340

Outer Brake Pad

$

$

Currently unavailable

6-29

Toro 519241

Lining, Inner Pad

$

$

Currently unavailable

6-30

Toro 516335

"V" Plate

$

$

Currently unavailable

6-31

Toro 520020

Cam Lever

$

$

Currently unavailable

6-32

Toro 513486

Washer, 5/16 x .31

$

$

Currently unavailable

6-33

Toro 523031

Spring ("V" Plate to Pad)

$

$

Currently unavailable

6-34

Toro 519791

Washer

$

$

Currently unavailable

6-35

Toro 513750

Retaining Washer

$

$

Currently unavailable

6-36

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

6-37

Toro 513524

Lockwasher, 1/4
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

6-38

Toro 520023

Spring, Linkage Return

$

$

Not available

6-39

Toro 517585

Brake Switch

$

$

Not available

6-40

Toro 513718

Mach. Screw #10-32 x 3/4

$

$

Not available

6-41

Toro 513498

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days
