1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1976) WHEELS AND TIRES Parts Diagram

Elec-Trak Lawn Tractor

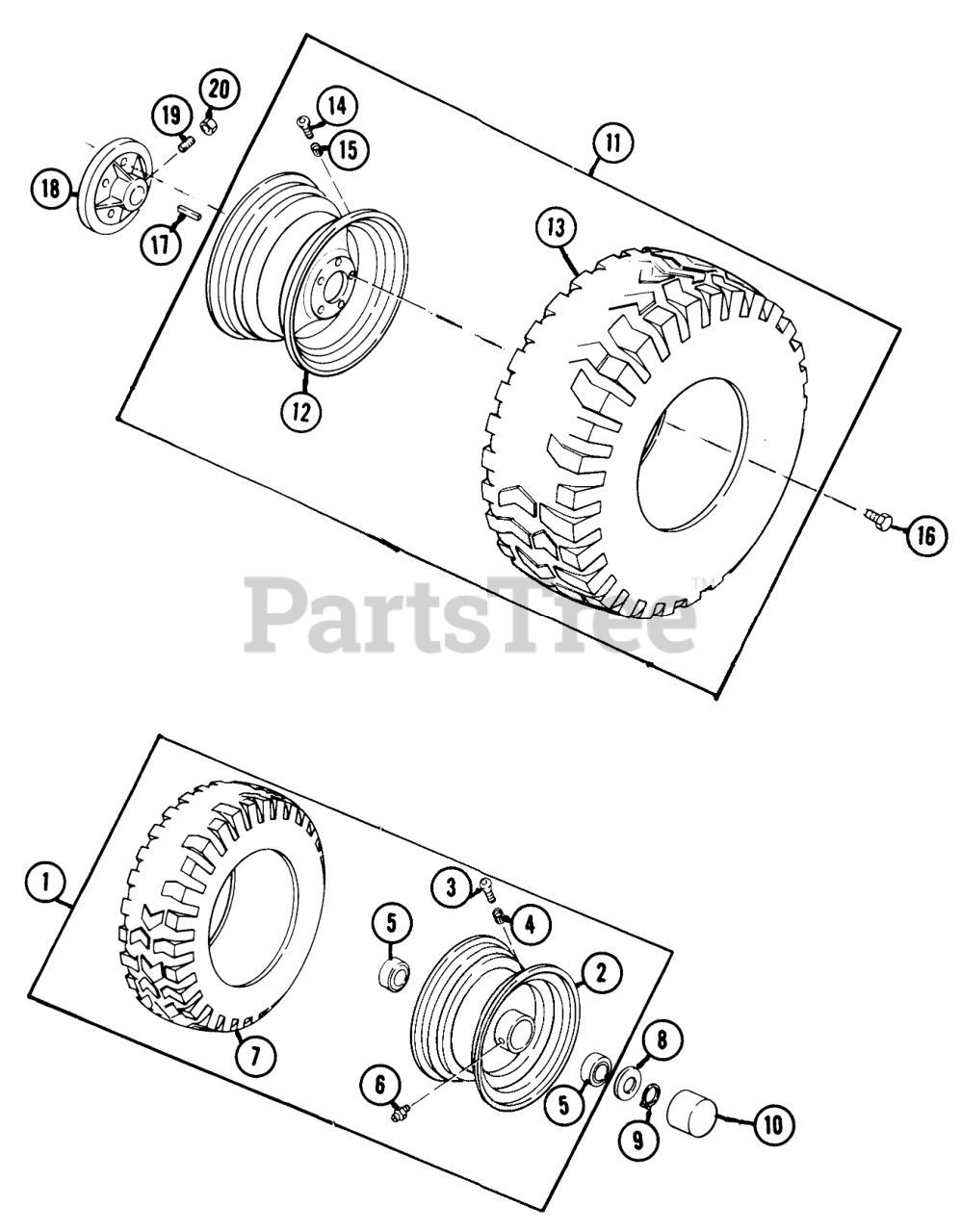

WHEELS AND TIRES Parts Diagram

  • Title

13-01

Toro 517075

Wheel & Tire Assembly, Front

$

$

Not available

13-02

Toro 515775

Wheel, Front

$

$

Currently unavailable

13-03

Toro 518884

Valve

$

$

Not available

13-04

Toro 518938

Cap, Valve

$

$

Currently unavailable

13-05

Toro 518213

Bearing, Front Wheel
(Superseded to 110513)

$21.99

$

In Stock, only 3 left!

0

13-06

Toro 518935

Grease Fitting

$

$

Currently unavailable

13-07

Toro 520376

Tire, Front

$

$

Currently unavailable

13-08

Toro 513462

Washer-3/4
(Superseded to 920256)

$

$

Not available

13-09

Toro 513756

Snap Ring
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

13-10

Toro 520728

DUST CAP

$

$

Not available

13-11

Toro 518888

Wheel & Tire Assembly, Rear

$

$

Not available

13-12

Toro 522157

Wheel, Rear

$

$

Not available

13-13

Toro 520408

Tire, 23 x 8.50-12, Rear

$

$

Not available

13-14

Toro 518884

Valve

$

$

Not available

13-15

Toro 518938

Cap, Valve

$

$

Currently unavailable

13-16

Toro 518144

Wheel Lug
(Superseded to 83-2720)

$4.99

$

In Stock, only 4 left!

0

13-17

Toro 513442

Woodruff Key 1/4 x 1/8

$

$

Not available

13-18

Toro 517346

Hub
(Superseded to 93-3659-03)

$171.99

$

Usually ships in 3-6 days

0

13-19

Toro 513685

Set Screw Sq. Hd. 5/16-18 x 1
(Superseded to 3242-6)

$4.99

$

Usually ships in 3-6 days

0

13-20

Toro 513299

Nut, Hex Jam 5/16-18
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0
