1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1976) ELECTRICAL SYSTEM Parts Diagram

Elec-Trak Lawn Tractor

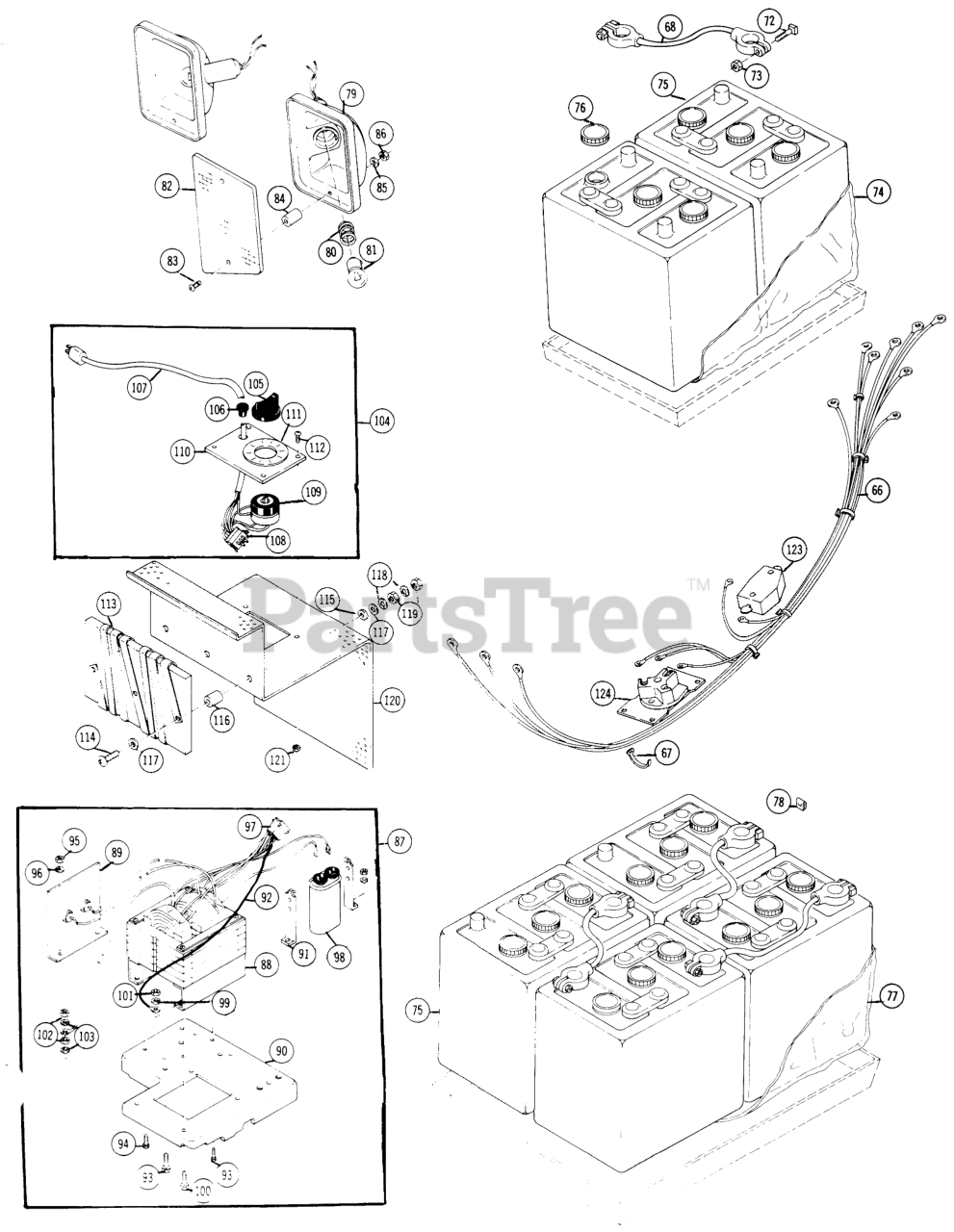

ELECTRICAL SYSTEM Parts Diagram

  • Title

11-66

Toro 515724

Grill Harness

$

$

Not available

11-67

Toro 518017

Cable Tie

$

$

Not available

11-68

Toro 516380

Battery Cable Assembly

$

$

Not available

11-72

Toro 513620

Bolt, Sq. Hd. 5/16-18

$

$

Currently unavailable

11-73

Toro 519792

Nut, Hex 5/16-18

$

$

Currently unavailable

11-74

Toro 515136

Poly Bag Liner, Front

$

$

Not available

11-75

Toro 523045

Battery, Heavy-Duty 6 Volt (Deep Discharge)

$

$

Not available

11-76

Toro 516987

Battery Cap

$

$

Currently unavailable

11-77

Toro 515137

Poly Bag Liner, Rear

$

$

Not available

11-78

Toro 519886

Clip, Wire

$

$

Not available

11-79

Toro 515920

Reflector and Light Socket

$

$

Not available

11-80

Toro 517810

Spring

$

$

Not available

11-81

Toro 517843

Bulb, Head Light

$

$

Not available

11-82

Toro 517499

Lens, Headlight

$

$

Not available

11-83

Toro 513706

Screw, Pan Hd. #6-32 x 1

$

$

Not available

11-84

Toro 518045

Spacer

$

$

Not available

11-85

Toro 513532

Lockwasher #6

$

$

Not available

11-86

Toro 513285

Nut, Hex #6-32

$

$

Not available

11-87

Toro 521603

Battery Charger (Complete)

$

$

Currently unavailable

11-88

Toro 516048

Transformer

$

$

Not available

11-89

Toro 515951

Heat Sink Assembly

$

$

Not available

11-90

Toro 521993

Base

$

$

Not available

11-91

Toro 517652

Bracket

$

$

Not available

11-92

Toro 517753

Wire (#47)

$

$

Currently unavailable

11-93

Toro 513658

Screw, Hex Machine #10-32 x 7/8

$

$

Not available

11-94

Toro 513651

Screw, Hex Machine

$

$

Currently unavailable

11-95

Toro 513286

Nut, Hex #8-32

$

$

Not available

11-96

Toro 513535

Lockwasher-#8
(Superseded to 920078)

$

$

Not available

11-97

Toro 518091

Pin Housing

$

$

Not available

11-98

Toro 518233

Capacitor
(Superseded to 523410)

$

$

Not available

11-99

Toro 513513

Lockwasher 1/4
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

11-100

Toro 513320

Bolt, Hex 1/4-20 x 1
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

11-101

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

11-102

Toro 513287

Nut #10-32
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

11-103

Toro 513536

Lockwasher #10
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

11-104

Toro 515956

Timer Assembly

$

$

Not available

11-105

Toro 518041

Timer Knob

$

$

Not available

11-106

Toro 517990

Bushing, Charger Cord

$

$

Not available

11-107

Toro 517750

Charger Cord

$

$

Not available

11-108

Toro 518097

Socket Housing

$

$

Not available

11-109

Toro 517650

Timer

$

$

Not available

11-110

Toro 515948

Mounting Plate

$

$

Not available

11-111

Toro 519810

Timer Dial

$

$

Not available

11-112

Toro 513725

Screw, Machine #10-24 x 3/4 Phillips Hd.
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

11-113

Toro 516959

Power Resistor Assembly

$

$

Not available

11-114

Toro 513738

Screw, Phillips Pan Hd. 1/4-20 x 2

$

$

Not available

11-115

Toro 517414

Washer, Fiber

$

$

Not available

11-116

Toro 517413

Spacer

$

$

Not available

11-117

Toro 513453

Washer 1/4

$

$

Currently unavailable

11-118

Toro 513513

Lockwasher 1/4
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

11-119

Toro 513405

Nut, 1/4-20

$

$

Currently unavailable

11-120

Toro 521956

Cover

$

$

Not available

11-121

Toro 517787

Speed Nut

$

$

Not available

11-123

Toro 518032

Accessory Outlet

$

$

Not available

11-124

Toro 518108

PTO Outlet

$

$

Not available

11-06

Toro 519792

Nut, Hex 5/16-18

$

$

Currently unavailable

11-11

Toro 518017

Cable Tie

$

$

Not available

11-122

Toro 513692

Screw, Thrd. Rolling #8-32 x 1/2 Dull Black

$

$

Not available

11-125

Toro 517585

Brake Switch

$

$

Not available

11-126

Toro 513718

Mach. Screw #10-32 x 3/4

$

$

Not available

11-127

Toro 513498

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

11-128

Toro 517752

Jumper Wire #52

$

$

Currently unavailable

11-69

Toro 519789

Battery Post Clamp (+)

$

$

Currently unavailable

11-70

Toro 519790

Battery Post Clamp (-)

$

$

Currently unavailable

11-71

Toro 519770

Wire, #6 AWG

$

$

Currently unavailable
