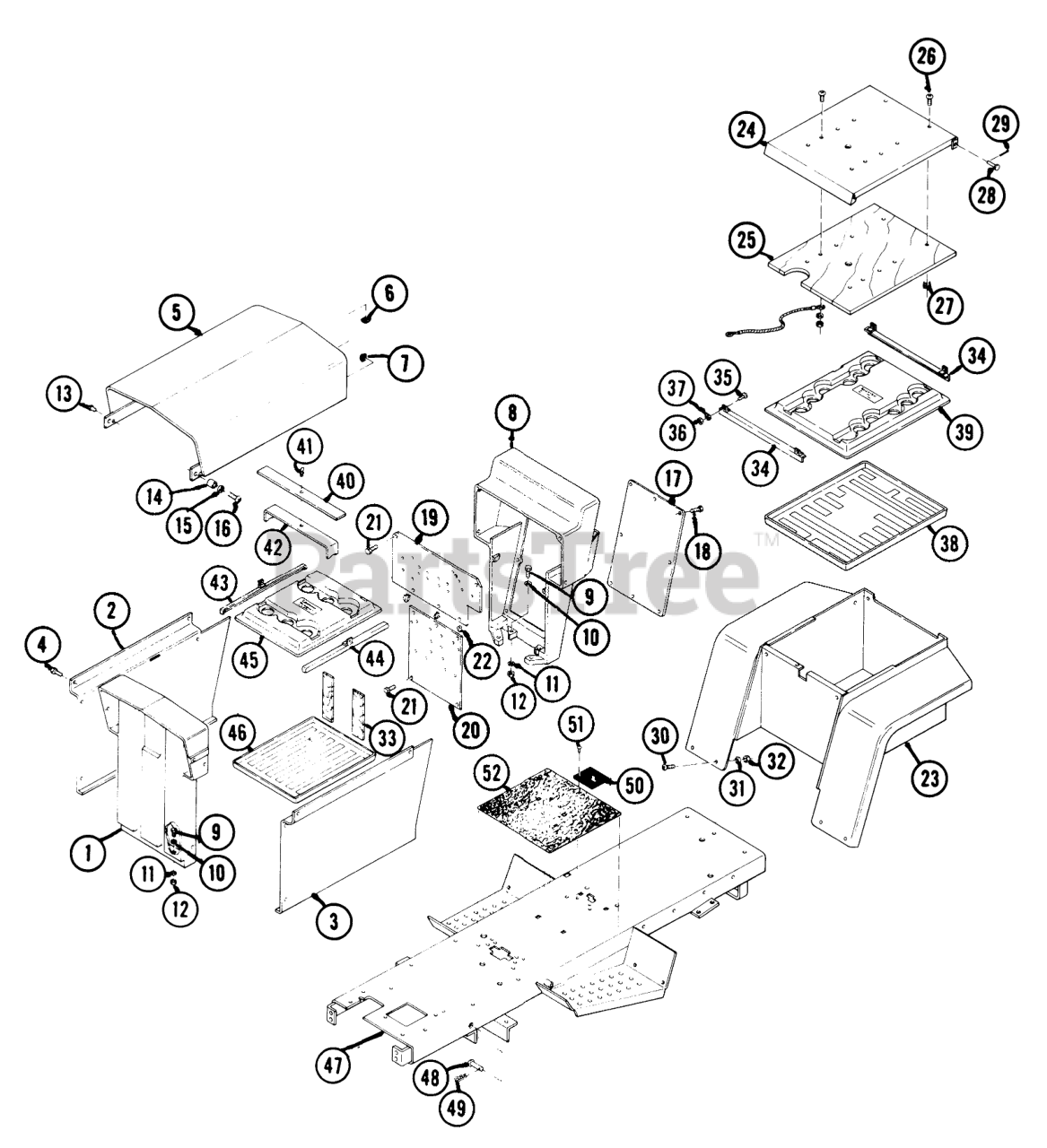

1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1975) SHEET METAL AND COVERS Parts Diagram

Elec-Trak Lawn Tractor

SHEET METAL AND COVERS Parts Diagram

  • Title

8-01

Toro 521524

Grill

$

$

Not available

8-02

Toro 521408

Side Plate, Right Hand

$

$

Not available

8-03

Toro 521412

Side Plate, Left Hand

$

$

Not available

8-04

Toro 517818

Rivet

$

$

Not available

8-05

Toro 523035

Hood Assembly

$

$

Not available

8-06

Toro 518212

HOOD STOP

$

$

Not available

8-07

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

8-08

Toro 521744

Control Cabinet (Hood Stand)

$

$

Not available

8-09

Toro 513343

Bolt, Hex 5/16-18 x 1 1/4
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

8-10

Toro 513468

Washer 5/16
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

8-11

Toro 513515

Lockwasher-5/16
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

8-12

Toro 513412

Nut, Hex 5/16-18
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8-13

Toro 517819

Rivet

$

$

Currently unavailable

8-14

Toro 517516

Bushing

$

$

Not available

8-15

Toro 518114

Washer

$

$

Not available

8-16

Toro 518143

Machine Screw, Pan Head

$

$

Not available

8-17

Toro 522171

Cover

$

$

Not available

8-18

Toro 513691

Screw, Thd. Rolling #8-32 x 3/8

$

$

Currently unavailable

8-19

Toro 516941

Upper Control Panel

$

$

Not available

8-20

Toro 516942

Lower Control Panel

$

$

Currently unavailable

8-21

Toro 513694

Thrd. Rolling Screw #8-32 x 1/2

$

$

Currently unavailable

8-22

Toro 518017

Cable Tie

$

$

Not available

8-23

Toro 521547

Rear Body Assembly (with Fenders)

$

$

Currently unavailable

8-24

Toro 523040

Seat Pan

$

$

Not available

8-25

Toro 523042

Stiffener, Seat Pan

$

$

Not available

8-26

Toro 313732

Screw, Phillips Pan Head 5/16-18 x 3/4

$

$

Currently unavailable

8-27

Toro 517985

"T" Nut, 243 A

$

$

Not available

8-28

Toro 517626

Clevis Pin 1/8 x 3/4

$

$

Not available

8-29

Toro 513556

Cotter Pin
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

8-30

Toro 513728

Screw, Phillips Pan Head 1/4-20 x 1/2
(Superseded to 910836)

$

$

Not available

8-31

Toro 513513

Lockwasher 1/4
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

8-32

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

8-33

Toro 517875

Spacer, Battery

$

$

Not available

8-34

Toro 515911

Battery Clamp, Rear Box

$

$

Currently unavailable

8-35

Toro 513718

Mach. Screw #10-32 x 3/4

$

$

Not available

8-36

Toro 513287

Nut #10-32
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

8-37

Toro 513536

Lockwasher #10
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

8-38

Toro 515305

Battery Tray, Rear Box

$

$

Not available

8-39

Toro 517981

Battery Cover, Rear Box

$

$

Not available

8-40

Toro 517535

Clamp Plate, Front Box

$

$

Not available

8-41

Toro 520727

Thumb Screw, Clamp

$

$

Not available

8-42

Toro 517532

Clamp, Front Box

$

$

Not available

8-43

Toro 517528

Hold Down, Front Right

$

$

Not available

8-44

Toro 517529

Hold Down, Front Left

$

$

Not available

8-45

Toro 517982

Battery Cover, Front Box

$

$

Not available

8-46

Toro 515308

Battery Tray, Front Box

$

$

Not available

8-47

Toro 522244

Frame

$

$

Not available

8-48

Toro 517627

Clevis Pin

$

$

Not available

8-49

Toro 518035

Hairpin Cotter

$

$

Not available

8-50

Toro 523027

Shift Plate

$

$

Not available

8-51

Toro 517821

Rivet

$

$

Currently unavailable

8-52

Toro 521076

Floor Mat

$

$

Not available
