1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1975) SEAT, DECALS, MISC. TRIM Parts Diagram

Elec-Trak Lawn Tractor

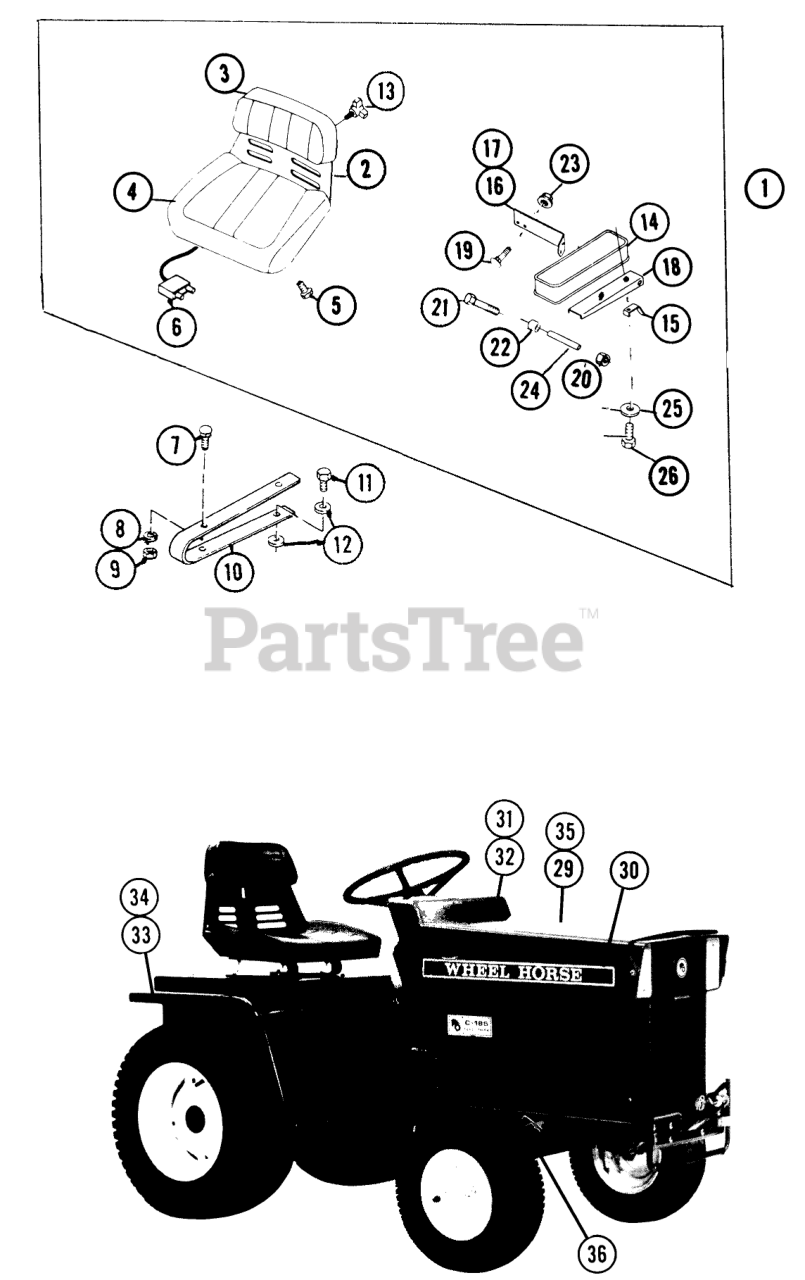

SEAT, DECALS, MISC. TRIM Parts Diagram

  • Title
15-01

Toro 523111

Seat Assembly

$

$

Not available

15-02

Toro 104849

Seat Base

$

$

Not available

15-03

Toro 9664

Back Cushion

$

$

Not available

15-04

Toro 523059

Seat Cushion Assembly, w/Switch

$

$

Not available

15-05

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

15-06

Toro 518157

Pin Housing

$

$

Currently unavailable

15-07

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

15-08

Toro 513468

Washer 5/16
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

15-09

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15-10

Toro 103145

Spring
(Superseded to 110920-03)

$189.99

$

Usually ships in 3-6 days

0

15-11

Toro 513341

Bolt, Hex 5/16-18 x 1
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

15-12

Toro 513468

Washer 5/16
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

15-13

Toro 9665

Knob 8 HP

$

$

Not available

15-14

Toro 104101

Arm Rest Pad

$

$

Not available

15-15

Toro 104102

Arm Stop

$

$

Not available

15-16

Toro 104103

Bracket-R.H.

$

$

Not available

15-17

Toro 104104

Bracket-L.H.

$

$

Not available

15-18

$

$

Not available

15-19

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

15-20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

15-21

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

15-22

Toro 979242

PIN-SPLIT ROLLED

$

$

Not available

15-23

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

15-24

Toro 979394

Spacer

$

$

Currently unavailable

15-25

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

15-26

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

15-29

Toro 521966

Decal, Hood

$

$

Currently unavailable

15-30

Toro 102831

Decal
(Superseded to 108851)

$33.99

$

Usually ships in 3-6 days

0

15-31

Toro 517673

Fuse Decal

$

$

Not available

15-32

Toro 523088

Decal, Dash/Instructions

$

$

Not available

15-33

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

15-34

Toro 102929

Reflector

$

$

Not available

15-35

Toro 517654

Decal, Caution (Battery Covers)

$

$

Not available

15-36

Toro 104979

Decal, C-185

$

$

Not available
