1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1975) FRONT AXLE AND STEERING Parts Diagram

Elec-Trak Lawn Tractor

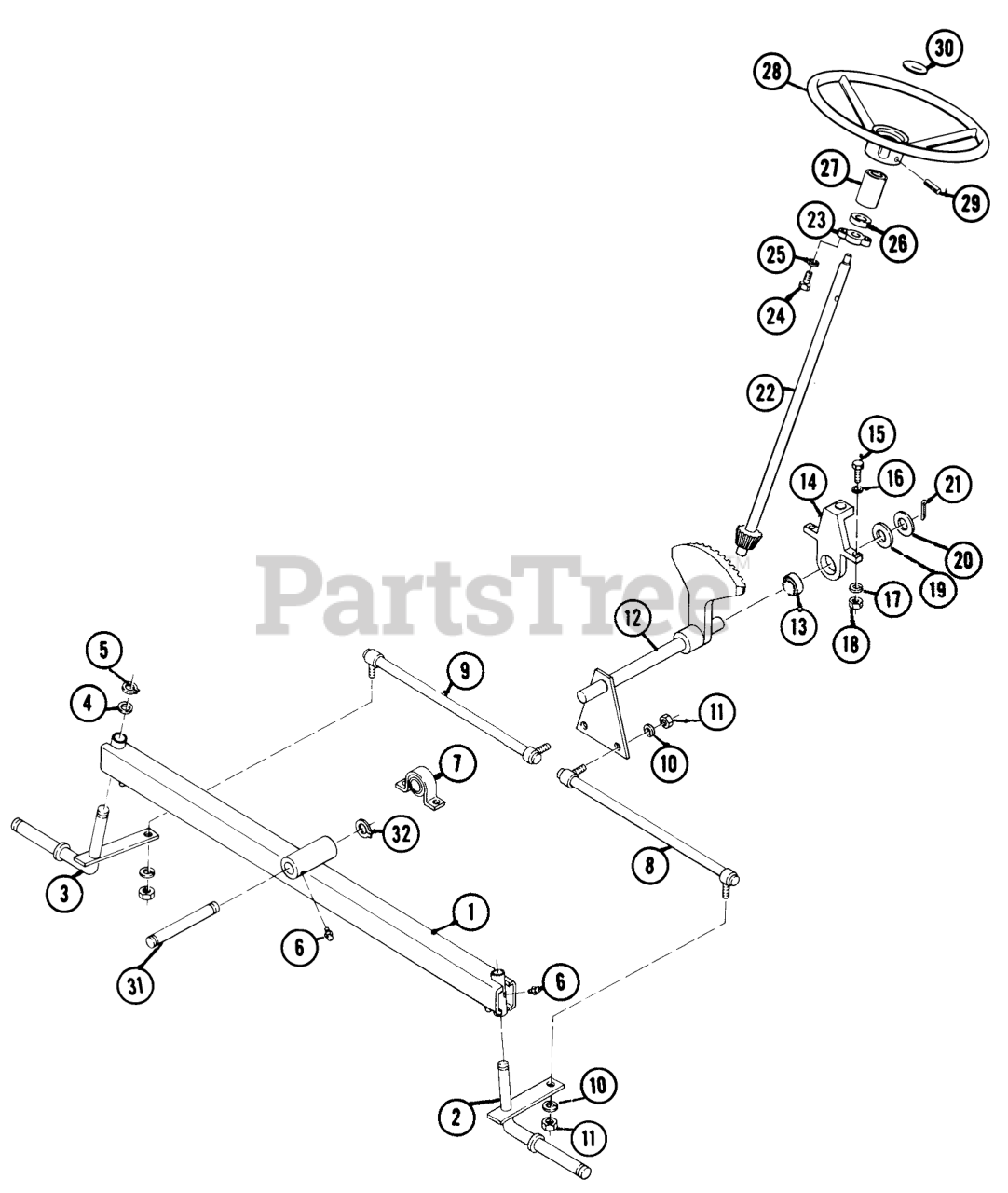

FRONT AXLE AND STEERING Parts Diagram

  • Title
5-01

Toro 516176

Axle, Front

$

$

Not available

5-02

Toro 516643

Spindle, Left

$

$

Not available

5-03

Toro 516825

Spindle, Right

$

$

Not available

5-04

Toro 518142

Thrust Washer

$

$

Not available

5-05

Toro 513756

Snap Ring
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

5-06

Toro 518902

Grease Fitting

$

$

Not available

5-07

Toro 518088

BEARING

$

$

Not available

5-08

Toro 522070

Tie Rod, Left

$

$

Not available

5-09

Toro 522069

Tie Rod, Right

$

$

Not available

5-10

Toro 513520

Lockwasher, 1/2

$

$

Currently unavailable

5-11

Toro 513304

Nut, Hex Jam 1/2-20
(Superseded to 915004)

$

$

Not available

5-12

Toro 522204

Gear & Sector, with Shaft

$

$

Not available

5-13

Toro 518145

Bearing

$

$

Not available

5-14

Toro 521931

Mounting Bracket

$

$

Not available

5-15

Toro 513347

Screw, Machine, Hex 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

5-16

Toro 513468

Washer 5/16
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

5-17

Toro 513515

Lockwasher-5/16
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5-18

Toro 513412

Nut, Hex 5/16-18
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5-19

Toro 518174

Shim Washer

$

$

Not available

5-20

Toro 513462

Washer-3/4
(Superseded to 920256)

$

$

Not available

5-21

Toro 513559

Cotter Pin, 1/8 x 1 1/4
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

5-22

Toro 523025

STRG SHAFT & PIN

$

$

Not available

5-23

Toro 517344

Bearing, Upper Steering Shaft

$

$

Not available

5-24

Toro 513337

Cap Screw, Hex 5/16-18 x 1/2
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

5-25

Toro 513515

Lockwasher-5/16
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5-26

Toro 518039

Set Collar

$

$

Not available

5-27

Toro 523036

Spacer, Steering Column

$

$

Not available

5-28

Toro 523033

Steering Wheel

$

$

Not available

5-29

Toro 513592

Spring Dowel Pin

$

$

Not available

5-30

Toro 102856

STEERING WHEEL INSE

$

$

Not available

5-31

Toro 519847

Pivot Pin

$

$

Not available

5-32

Toro 513755

Retaining Ring
(Superseded to 936121)

$0.99

$

Usually ships in 3-6 days

0
