1-0631 (D-200) - Toro Lawn Tractor (1975) 7.000 HITCHES (FIG. 7A) Parts Diagram

Lawn Tractor

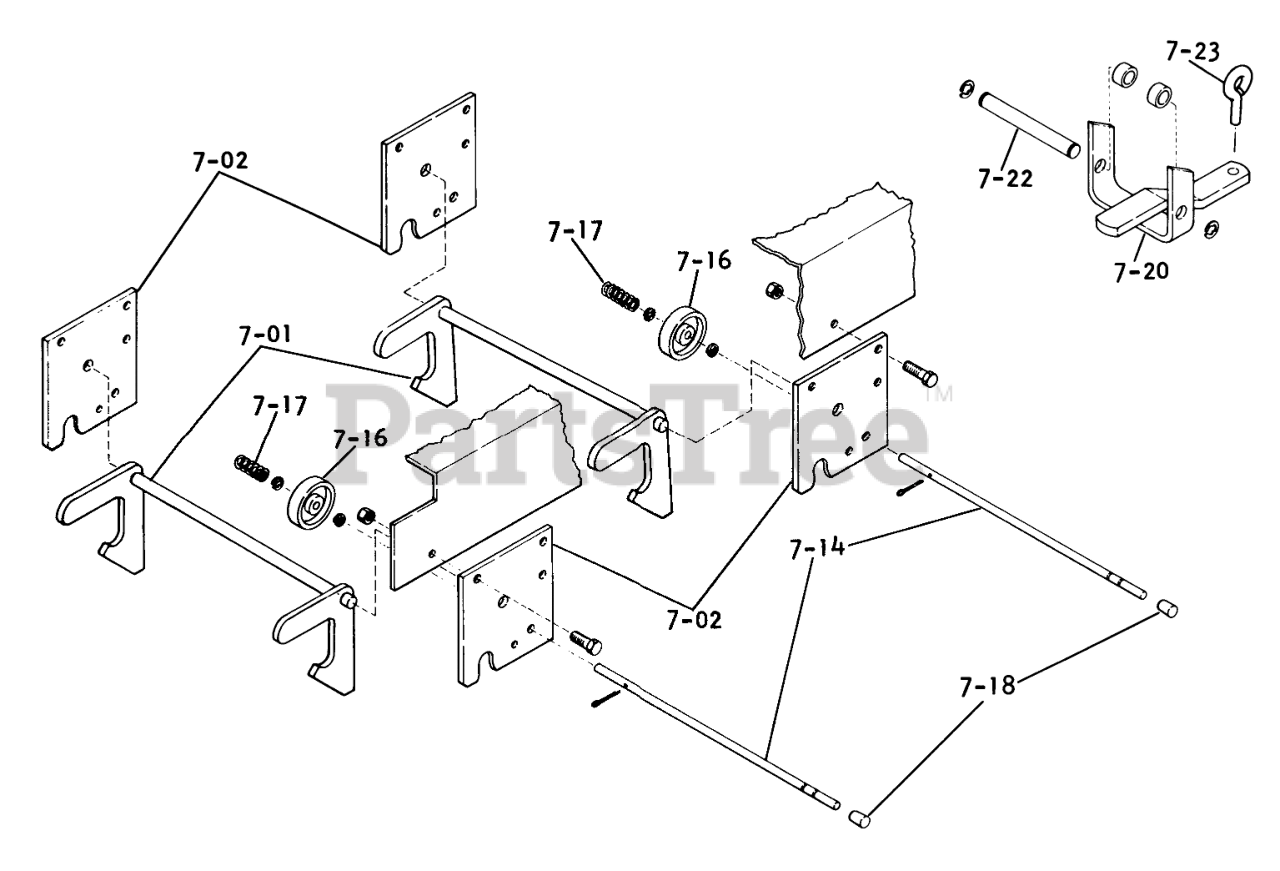

7.000 HITCHES (FIG. 7A) Parts Diagram

  • Title

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

Toro MW-4564

Lock Rod

$

$

Currently unavailable

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

Toro 8272

SPACER

$

$

Not available

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

Toro 933105

Hairpin

$

$

Not available

7-01

Toro 101014

Assy-Latch

$

$

Not available

7-02

Toro 101013

Hitch Plate

$

$

Not available

7-14

Toro 100995

Rod Lock

$

$

Not available

7-16

$31.99

$

Usually ships in 3-6 days

0

7-17

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

7-18

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

7-20

Toro 8270

Hitch

$

$

Not available

7-22

Toro 1647

Pin
(Superseded to 105269)

$

$

Not available

7-23

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available
