1-0630 (D-200) - Toro Lawn Tractor (1974) HYDRAULIC LIFT LINKAGES (PLATE 7.060) Parts Diagram

Lawn Tractor

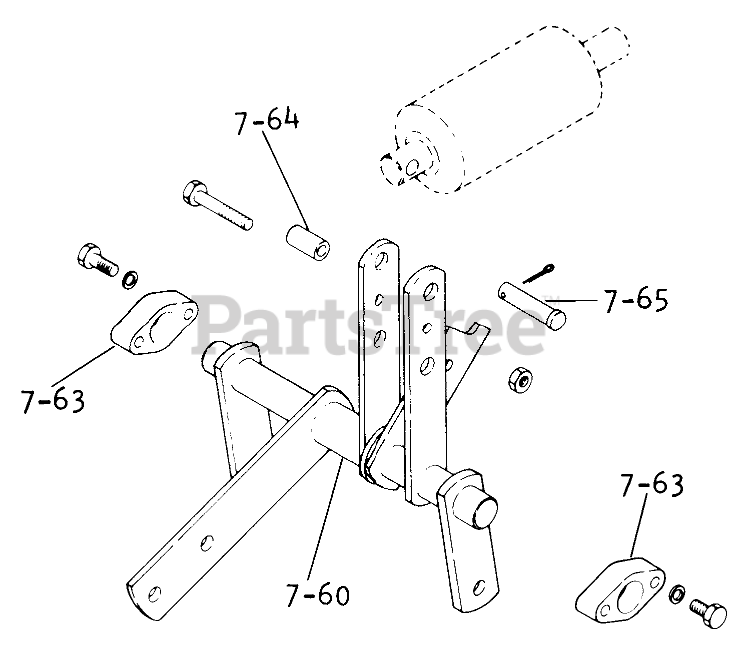

HYDRAULIC LIFT LINKAGES (PLATE 7.060) Parts Diagram

  • Title
7-60

Toro 101000

Bellcrank Assy.-Lift

$

$

Not available

7-63

Toro 8340

BLOCK R

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

7-64

Toro 102028

Spacer

$

$

Not available

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

7-65

Toro 8715

PIN CLEVIS .50 DIA

$

$

Not available

Toro 932017-4

Cotter Pin

$

$

Currently unavailable
