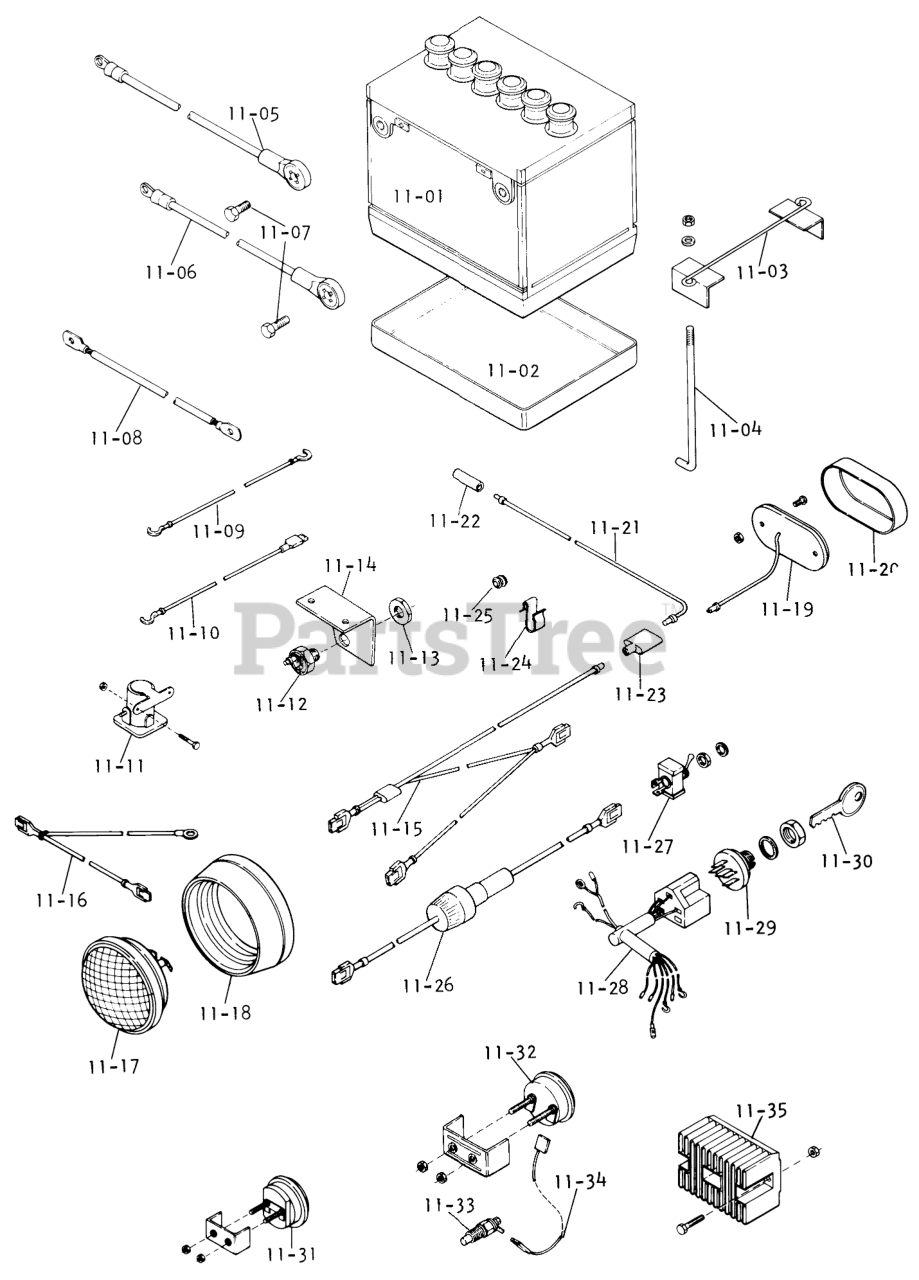

1-0620 - Toro Lawn Tractor, 18hp (1973) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor, 18hp

ELECTRICAL SYSTEM Parts Diagram

  • Title

11-01

Toro 102876

Battery

$

$

Not available

11-02

Toro 102179

Battery Box

$

$

Not available

11-03

Toro 102877

Assy-Hold Down

$

$

Not available

11-04

Toro 103183

Hook-Battery Retainer

$

$

Not available

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

Toro 920007-4

Washer

$

$

Currently unavailable

11-05

Toro 102730

Cable-Battery Positive to Solenoid (Red)

$

$

Not available

11-06

Toro 102731

Cable-Battery Negative to Ground (Black)

$

$

Not available

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

11-07

Toro 103131

Bolt, Battery Terminal-Special

$

$

Currently unavailable

11-08

Toro 4432

Cable
(Superseded to 111074)

$27.99

$

Usually ships in 3-6 days

0

11-09

Toro 102890

WIRE ASSY

$

$

Not available

11-10

Toro 102960

Assy-Wire

$

$

Not available

11-11

Toro 8658

Solenoid
(Superseded to 108544)

$134.99

$

Usually ships in 3-6 days

0

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11-12

Toro 101845

SWITCH SAFETY

$107.99

$

Usually ships in 3-6 days

0

11-13

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

11-14

Toro 102766

Bracket

$

$

Not available

11-15

Toro 102813

Control Clip

$

$

Not available

11-16

Toro 102815

Wire Assy

$

$

Not available

11-17

Toro 102881

HEADLAMP

$

$

Not available

11-18

Toro 102081

Grommet

$

$

Not available

11-19

Toro 102883

Base-Taillight
(Superseded to 105202)

$

$

Not available

11-20

Toro 102884

Lens-Taillight
(Superseded to 112564)

$9.99

$

In Stock, Qty 5

0

Toro 910808-4

Screw, 10-32 X 5/8

$

$

Currently unavailable

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

11-21

Toro 102814

Wire assembly

$

$

Not available

11-22

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

11-23

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

11-24

Toro 3023

SPEED CLIP

$

$

Not available

11-25

Toro 102893

Grommet

$

$

Not available

11-26

Toro 101846

ASSY FUSED CONNECTOR

$

$

Not available

Toro 101639

FUSE

$3.49

$

Usually ships in 3-6 days

0

Toro 9210

Clip

$

$

Not available

Toro 100571

PLASTIC TIE

$

$

Not available

11-27

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

Toro 8785

Nut, Knurled

$

$

Not available

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11-28

Toro 102812

Harness-Main Wiring

$

$

Not available

11-29

Toro 101917

Switch-Ignition
(Superseded to 92-6785)

$86.99

$

In Stock, only 1 left!

0

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

Toro 920160-4

Lockwasher 5/8

$

$

Currently unavailable

11-30

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

11-31

Toro 102046

AMMETER W/CLAMP

$

$

Not available

11-31

Toro 102047

Clamp
(Superseded to 109604)

$

$

Not available

11-32

Toro 102885

Gauge-Oil Temp

$

$

Not available

Toro 102882

CLAMP MOUNTING

$

$

Not available

Toro 5824

Shroud
(Superseded to 108858)

$

$

Not available

11-33

Toro 102886

Assy-Thermistor

$

$

Not available

11-34

Toro 102887

Assy-Wre

$

$

Not available

11-35

Toro 101450

REGULATOR-RECTIFIER

$337.99

$

Usually ships in 3-6 days

0

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable
