1-0612 (D-180) - Toro Lawn Tractor (1975) 5.000 FRONT AXLE AND STEERING (FIG. 5) Parts Diagram

Lawn Tractor

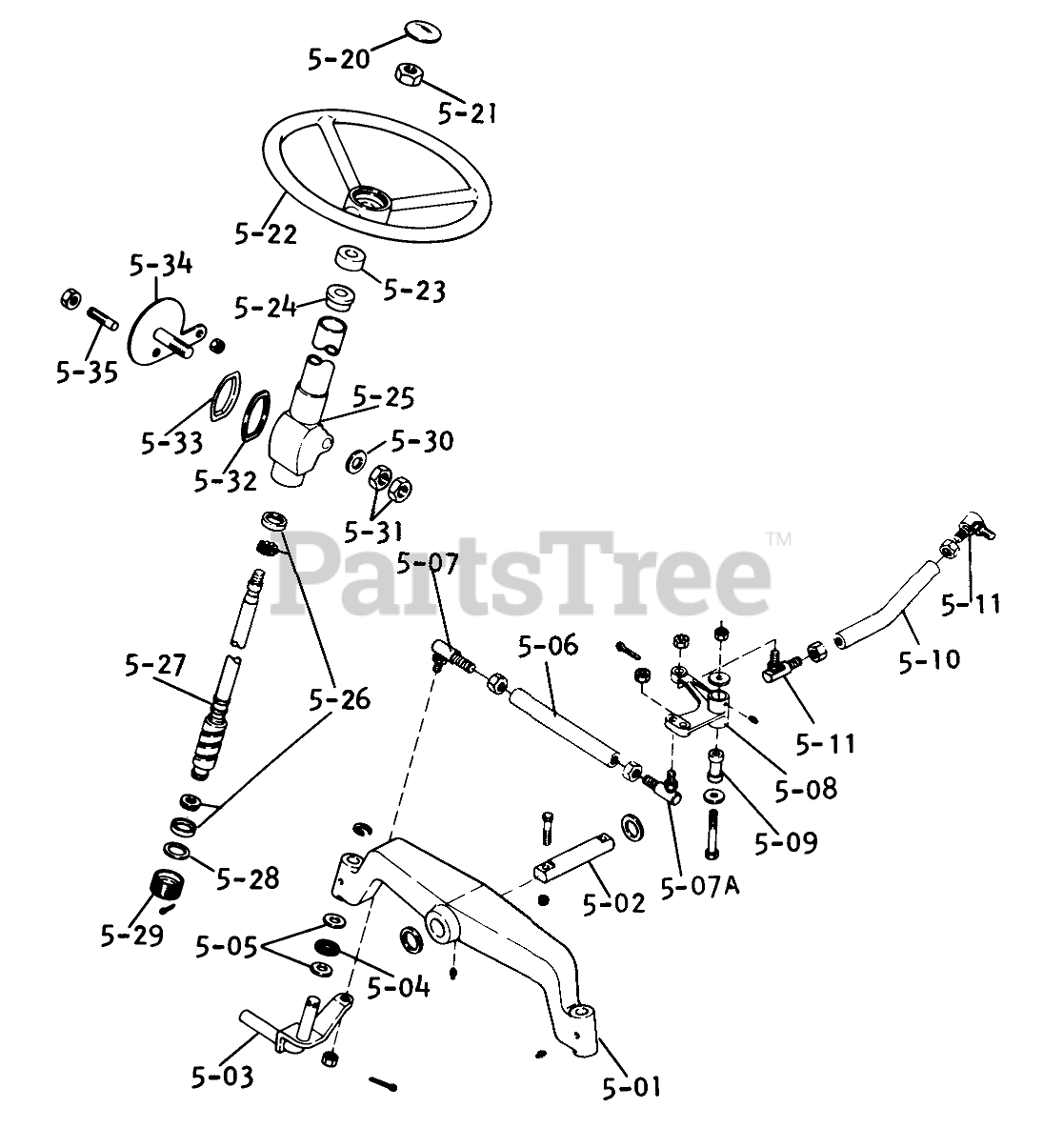

5.000 FRONT AXLE AND STEERING (FIG. 5) Parts Diagram

  • Title

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

Toro 1030

Zerk

$

$

Not available

Toro 908048

HHCS

$

$

Not available

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

Toro 920239

Washer
(Superseded to 9202394)

$2.99

$

Usually ships in 3-6 days

0

Toro 104395

ASSY-SPNDLE&STEER R

$

$

Not available

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

Toro 915004

NUT-6

$

$

Not available

Toro 920246

Washer
(Superseded to 9202464)

$

$

Not available

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

Toro 103638

Jam Nut LH 1/2-20
(Superseded to 3220-12)

$2.49

$

Usually ships in 3-6 days

0

Toro 908066

HEX HD CAP SCREW

$

$

Not available

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

Toro 915030

Slot Nut 3/8-24
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

Toro 103066

Fitting-Grease

$

$

Currently unavailable

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

Toro 932019

Cotter Pin

$

$

Currently unavailable

Toro 915088

Nut
(Superseded to 3220-11)

$1.49

$

Usually ships in 3-6 days

0

5-01

Toro 104390

Axle Front

$

$

Not available

5-02

Toro 100887

PIN AXLE

$

$

Not available

5-03

Toro 104394

Spindle Assembly R.H.

$

$

Not available

5-04

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

5-05

Toro 9548

WASHER-THRUST

$

$

Not available

5-06

Toro 103419

TIE ROD R

$

$

Not available

5-07A

Toro 103417

LH BALL JOINT R

$

$

Not available

5-07

Toro 103416

Ball Joint RH
(Superseded to 99-5863)

$

$

Not available

5-08

Toro 104927

Bellcrank-steering

$

$

Not available

5-09

Toro 102623

Bushing

$

$

Not available

5-10

Toro 103418

Drag Link

$

$

Not available

5-11

Toro 104153

BALL JOINT-SHORT R

$

$

Not available

5-20

Toro 102856

STEERING WHEEL INSE

$

$

Not available

5-21

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 12

0

5-22

Toro 102624

Steering Wheel

$

$

Not available

5-23

Toro 103068

Cover-Dust
(Superseded to 21-9260)

$8.99

$

Usually ships in 3-6 days

0

5-24

Toro 103067

Column Bearing
(Superseded to 38-6300)

$

$

Not available

5-25

Toro 103064

Assy-Housing and Column

$

$

Not available

5-26

Toro 103069

BALL CUP KIT

$

$

Not available

5-27

Toro 103985

Steering Gear

$

$

Not available

5-28

Toro 103070

WASHER

$

$

Not available

5-29

Toro 103065

Adjusting Plug
(Superseded to 21-9130)

$

$

Not available

5-30

Toro 103073

Washer 49/64 X 1 1/4

$

$

Currently unavailable

5-31

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, only 4 left!

0

5-32

Toro 103075

SEAL

$

$

Not available

5-33

Toro 103074

Retainer-Seal
(Superseded to 22-8470)

$

$

Not available

5-34

Toro 103071

Lever

$

$

Not available

5-35

Toro 103072

Stud
(Superseded to 22-8300)

$131.99

$

Usually ships in 3-6 days

0
