1-0610 - Toro Lawn Tractor, 18hp (1973) SHEET METAL AND COVERS Parts Diagram

Lawn Tractor, 18hp

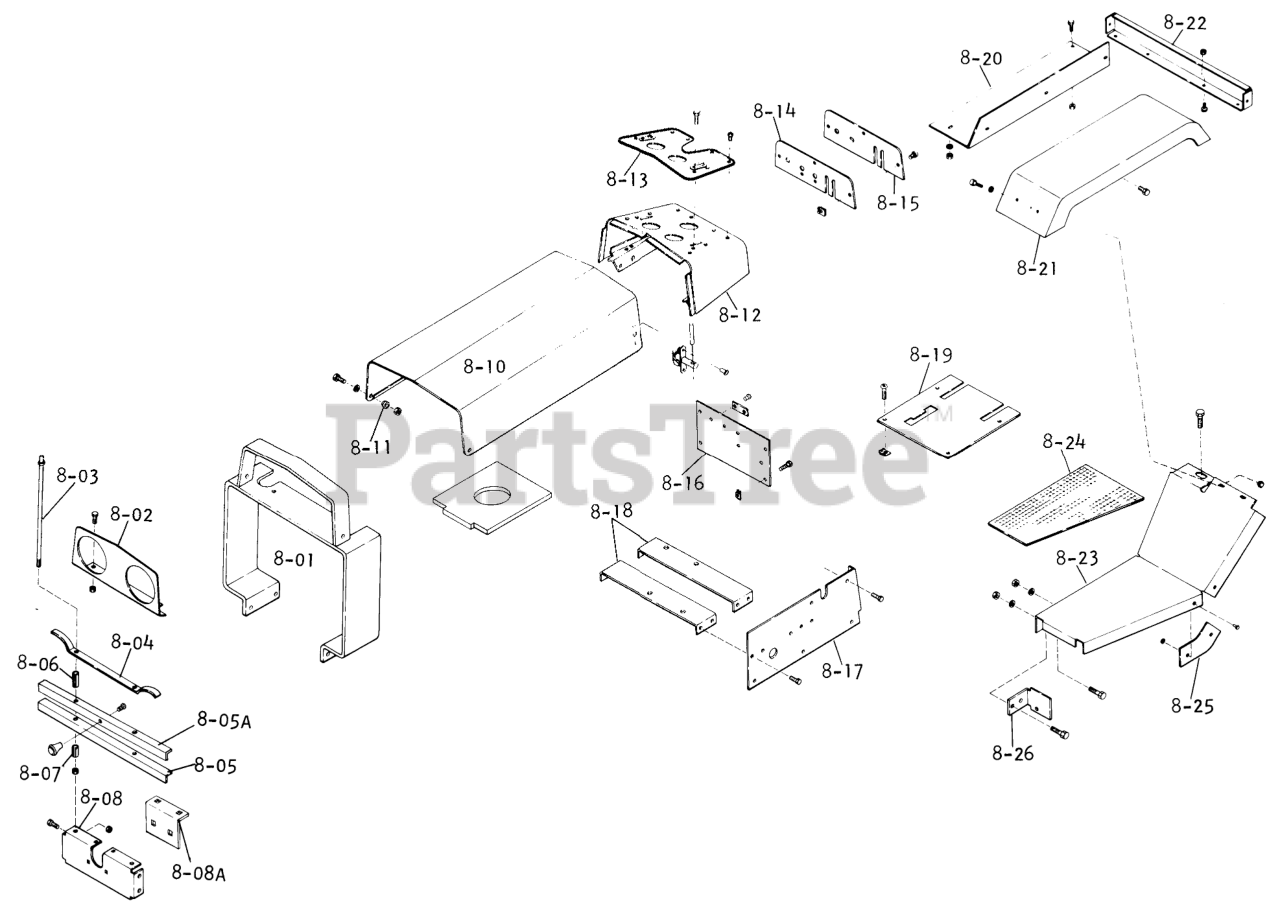

SHEET METAL AND COVERS Parts Diagram

  • Title

8-01

Toro 102365

Grille Shroud Assy.

$

$

Not available

8-02

Toro 101799

Light Bracket

$

$

Not available

8-03

Toro 101141

Rod-Grille

$

$

Currently unavailable

8-04

Toro 101153

SPRING GRILLE

$

$

Not available

8-05

Toro 101381

Grille
(Superseded to 105097)

$

$

Not available

8-05A

Toro 103400

Angle-Grille
(Superseded to 105294)

$

$

Not available

Toro 103401

KNOB

$

$

Not available

Toro 911738-4

Screw PHCR #10-32 X 3/8

$

$

Currently unavailable

8-06

Toro 979202

Spacer-Grille 5/16 X 17/8

$

$

Not available

8-07

Toro 979141

Spacer-Grille 5/16 X 11/4

$

$

Not available

8-08

Toro 101911

Cover-Front

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

8-08A

Toro 103362

Cover

$

$

Not available

Toro 900013-4

Bolt-Carr 1/4-20 X 1/2

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

8-10

Toro 102687

Assy-Hood

$

$

Not available

Toro 103086

INSULATION FOAM

$

$

Not available

Toro 103394

Latch

$

$

Not available

Toro 103410

Pin

$

$

Not available

8-11

Toro 102675

Bushing

$

$

Not available

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

8-12

Toro 102666

Selector Pin

$

$

Currently unavailable

Toro 102897

Edge Trim

$

$

Not available

Toro 2708

GROMMET

$

$

Not available

8-13

Toro 102854

Change Gear Shift

$

$

Not available

Toro 100609

Plate Screws

$

$

Not available

8-14

Toro 102671

Idler Shaft

$

$

Not available

8-15

Toro 102855

High Gear (19 teeth)

$

$

Not available

Toro 926235-4

Screw # 10-12 Type-A x 5/8

$

$

Currently unavailable

Toro 7057

Speed Nut

$

$

Currently unavailable

8-16

Toro 102074

Panel, Console (Rear-Hyd. Valve Support)

$

$

Not available

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

Toro 102824

Nut

$

$

Not available

8-17

Toro 101940

Panel R.H. Console (Side)

$

$

Not available

Toro 101941

Panel L.H. Console (Side)

$

$

Currently unavailable

8-18

Toro 101080

Battery Support

$

$

Not available

Toro 926694-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

8-19

Toro 101951

Plate-Access Cover

$

$

Not available

Toro 911684-4

Screw Hex Hd. Slotted #14-10 X 3/4

$

$

Currently unavailable

Toro 6519

Speed Nut

$

$

Not available

8-20

Toro 102694

Plate-R.H. Fender

$

$

Not available

Toro 102695

Plate-L.H. Fender
(Superseded to 103849)

$

$

Not available

8-21

Toro 101912

Fender-Right and Left

$

$

Not available

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

8-22

Toro 103226

Channel

$

$

Not available

Toro 103225

Wear Plate

$

$

Not available

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

8-23

Toro 101994

Footrest-R.H.

$

$

Currently unavailable

Toro 101995

Footrest-L.H.

$

$

Currently unavailable

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

Toro 915113-4

Nut

$

$

Currently unavailable

8-24

Toro 102826

Footrest Mat RH

$

$

Not available

Toro 102827

Footrest Mat LH

$

$

Not available

8-25

Toro 102712

Filler Plate

$

$

Not available

Toro 923787-4

Poprivet 1/8 X .419

$

$

Currently unavailable

Toro 920003-4

Washer, #6 SAE

$

$

Currently unavailable

8-26

Toro 100997

Bracket

$

$

Not available

Toro 915113-6

Nut

$

$

Currently unavailable

Toro 920009-4

Washer

$

$

Currently unavailable
