1-0610 - Toro Lawn Tractor, 18hp (1973) SEATS, TRIM, DECALS Parts Diagram

Lawn Tractor, 18hp

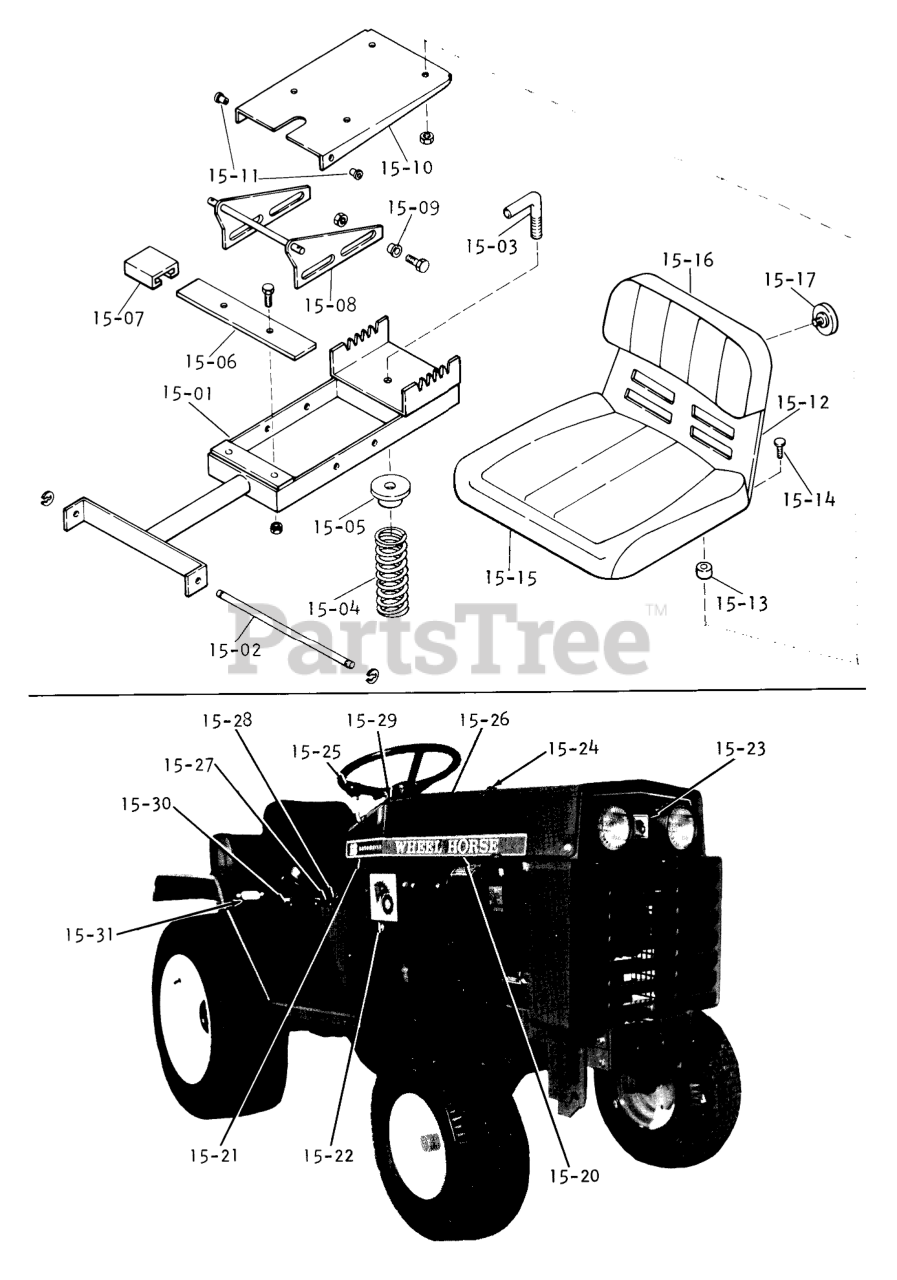

SEATS, TRIM, DECALS Parts Diagram

  • Title

15-01

Toro 102010

Seat Pivot Assembly

$

$

Not available

15-02

Toro 102018

Rod-Pivot

$

$

Not available

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

15-03

Toro 102700

Rod-Adjusting

$

$

Currently unavailable

15-04

Toro 102015

Spring

$

$

Not available

15-05

Toro 102016

Block-Spring

$

$

Not available

15-06

Toro 102019

Bar-Seat Stop

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

15-07

Toro 102045

Bumper-Rubber

$

$

Not available

15-08

Toro 102034

Seat Adjustment Assembly

$

$

Not available

15-09

Toro 101765

SPACER

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915113-6

Nut

$

$

Currently unavailable

15-10

Toro 102014

Plate-Seat Adjustment

$

$

Not available

15-11

Toro 5457

NYLINER BUSHING

$19.99

$

Usually ships in 3-6 days

0

Toro 933504-4

Hairpin

$

$

Currently unavailable

15-12

Toro 102033

Seat Base Assy.

$

$

Not available

15-13

Toro 9662

Spacer

$

$

Not available

15-14

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

15-15

Toro 9663

Cushion Seat

$

$

Not available

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

15-16

Toro 9664

Back Cushion

$

$

Not available

15-17

Toro 102895

Wing Head Stud

$

$

Not available

15-20

Toro 102831

Decal
(Superseded to 108851)

$33.99

$

Usually ships in 3-6 days

0

15-21

Toro 102984

Decal-18 Automatic

$

$

Not available

15-22

Toro 102853

Gear Shift Quadrant

$

$

Not available

15-23

Toro 102849

Decal

$

$

Not available

15-24

Toro 102845

Decal-Clutch Knob

$

$

Not available

15-25

Toro 102846

Decal-Hydro Control Knob

$

$

Not available

15-26

Toro 102850

Decal

$

$

Not available

15-27

Toro 102851

Decal-Parking Brake-on access cover plate

$

$

Currently unavailable

15-28

Toro 102843

Decal

$

$

Currently unavailable

15-29

Toro 102844

Decal

$

$

Currently unavailable

15-30

Toro 7633

Decal

$

$

Currently unavailable

15-31

Toro 102929

Reflector

$

$

Not available
