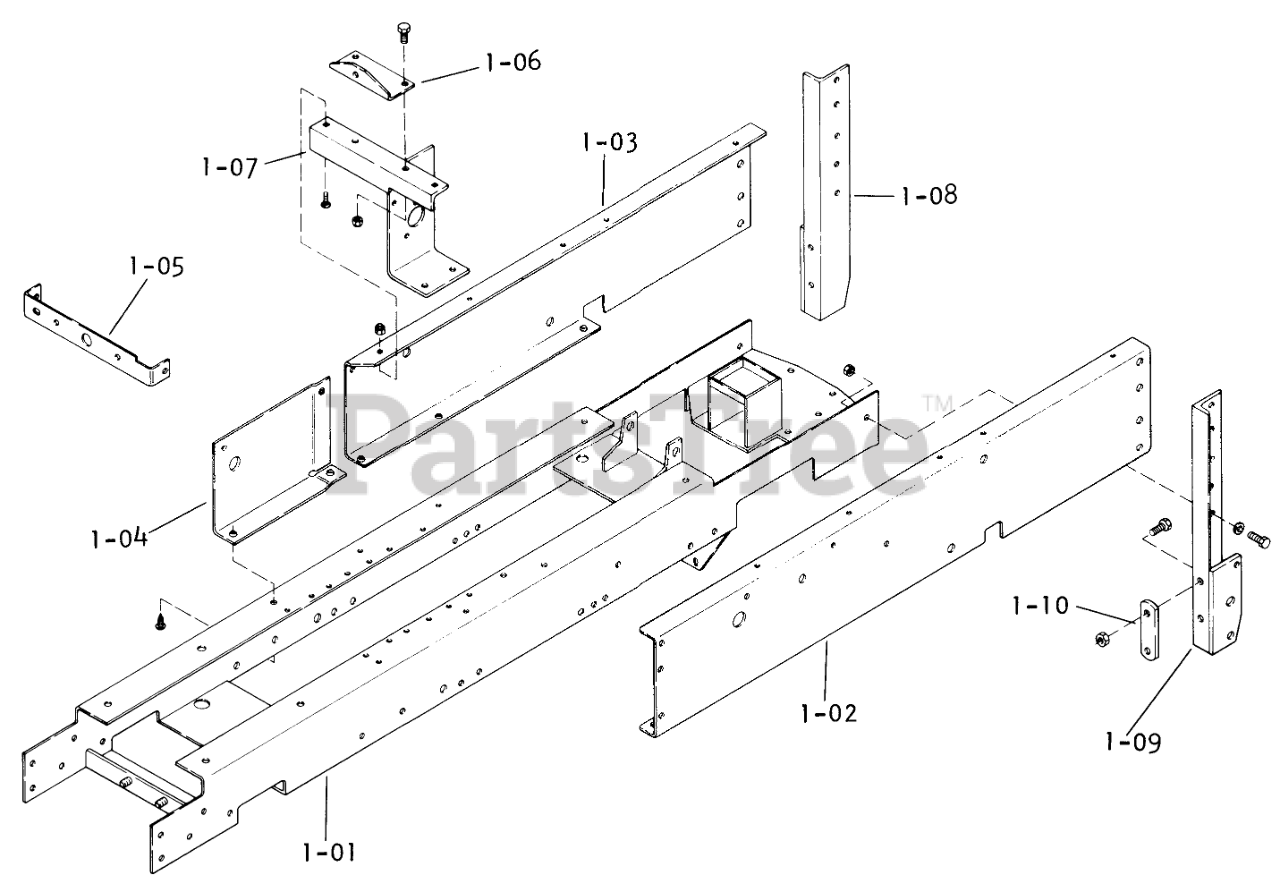

1-0601 - Toro Lawn Tractor, 18hp (1973) FRAME ASSEMBLIES Parts Diagram

Lawn Tractor, 18hp

FRAME ASSEMBLIES Parts Diagram

  • Title

1-01

Toro 100465

Frame Assy.

$

$

Currently unavailable

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

Toro 920009-4

Washer

$

$

Currently unavailable

1-02

Toro 101031

Panel-Side, L.H.

$

$

Not available

Toro 926715-4

Bolt, 3/8-16 x 3/4 S.T.

$

$

Currently unavailable

1-03

Toro 101030

Panel-Side, R.H.

$

$

Not available

1-04

Toro 102720

Access Plate

$

$

Not available

1-05

Toro 102345

Pump Mounting Plate
(Superseded to 106645)

$25.61

$

In Stock, only 1 left!

0

Toro 926694-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

1-06

Toro 102344

Pump Hanger Bracket

$

$

Not available

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

1-07

Toro 101985

Steering Gear Support

$

$

Not available

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

1-08

Toro 102092

Assy-Angle RH

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

1-09

Toro 102093

Assy-Angle LH

$

$

Not available

1-10

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable
