1-0600 - Toro Lawn Tractor, 18hp (1973) HYDROSTATIC TRANSMISSION Parts Diagram

Lawn Tractor, 18hp

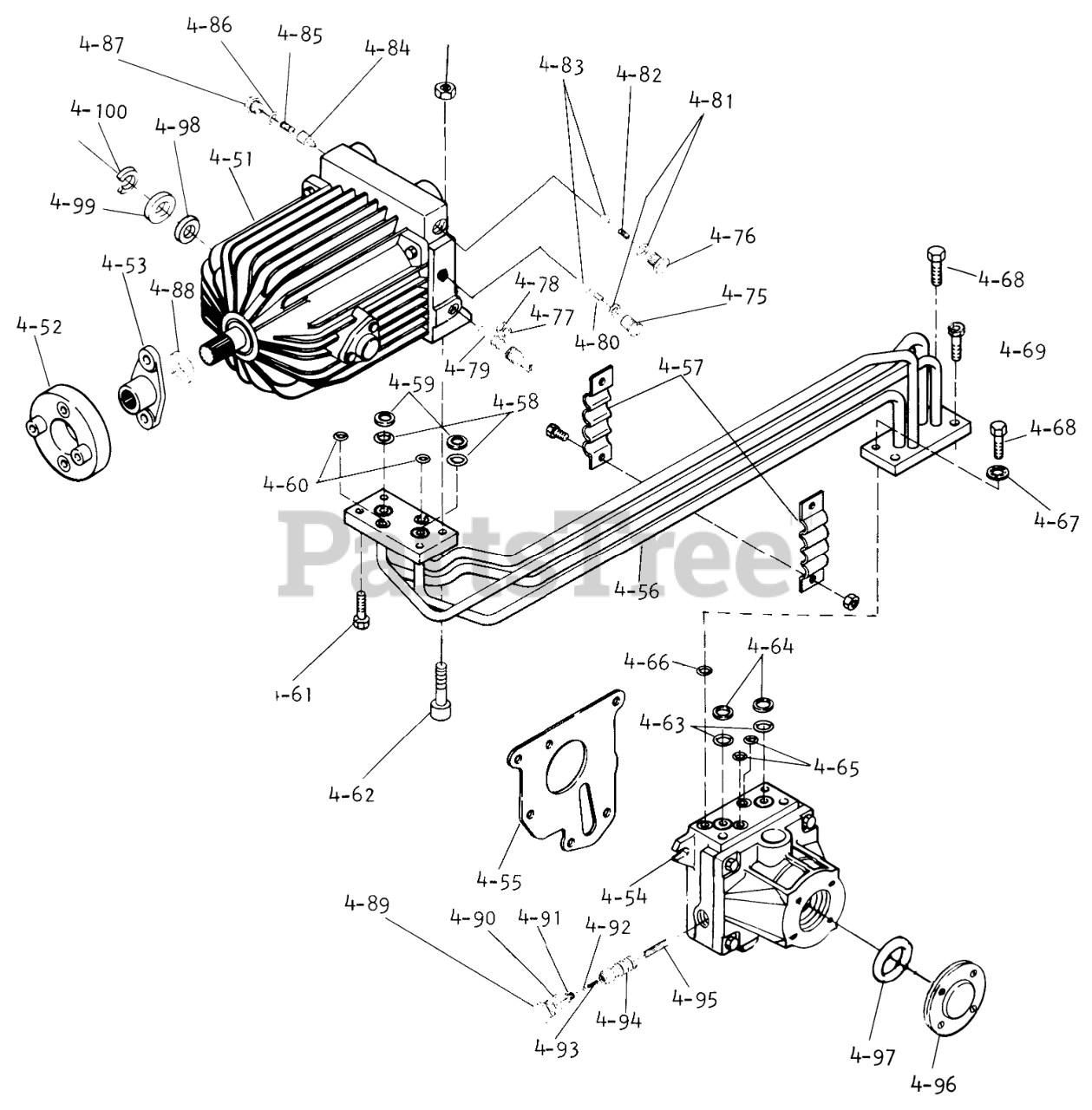

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

4-51

Toro 102677

Spring

$

$

Not available

4-52

Toro 102622

Coupling
(Superseded to 24-0080)

$

$

Not available

Toro 908022-4

Hex Cap Screw

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

4-53

Toro 103029

COUPLING DRIVEN R

$

$

Not available

Toro 908021-4

Bolt 5/16-18 x 1/2

$

$

Currently unavailable

4-54

Toro 102678

Hydro Motor Only

$

$

Not available

4-55

Toro 102759

GASKET

$10.99

$

Usually ships in 3-6 days

0

Toro 908036-6

Bolt-Hex 3/8-16 x 1 1/2 Nylok

$

$

Currently unavailable

4-56

Toro 102334

Manifold, Hydraulic

$

$

Not available

4-57

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$28.99

$

Usually ships in 3-6 days

0

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

4-58

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

4-59

Toro 103184

RING BACKUP

$8.99

$

In Stock, Qty 7

0

4-60

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

4-61

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

4-62

Toro 911103

Screw

$

$

Not available

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

4-63

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

4-64

Toro 103184

RING BACKUP

$8.99

$

In Stock, Qty 7

0

4-65

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

4-66

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

4-67

Toro 102817

SEAL-MANIFOLD BOLT

$

$

Not available

4-68

Toro 908058-4

Bolt Hex 1/2-13 x 1 1/4

$

$

Currently unavailable

4-69

Toro 911101

Bolt 3/8-16 X 1

$

$

Not available

4-75

Toro 103458

PLUG
(Superseded to 25-2650)

$101.99

$

Usually ships in 3-6 days

0

4-76

Toro 67752

Plug

$

$

Currently unavailable

4-77

Toro 103459

Back Up Ring
(Superseded to 25-2630)

$4.49

$

In Stock, only 3 left!

0

4-78

Toro 971012

O-RING

$23.99

$

Usually ships in 3-6 days

0

4-79

Toro 103460

VALVE

$

$

Not available

4-80

Toro 103457

Spring
(Superseded to 25-2640)

$4.99

$

Usually ships in 3-6 days

0

4-81

Toro 937310

"O" Ring
(Superseded to 973310)

$4.99

$

In Stock, only 2 left!

0

4-82

Toro 103455

Spring Chg. Rel. Valve
(Superseded to 25-2480)

$5.99

$

Usually ships in 3-6 days

0

4-83

Toro 103456

Ball

$

$

Currently unavailable

4-84

Toro 7756

Cone

$

$

Not available

4-85

Toro 6631

Spring

$

$

Not available

4-86

Toro 937310

"O" Ring
(Superseded to 973310)

$4.99

$

In Stock, only 2 left!

0

4-87

Toro 103645

Plug

$

$

Currently unavailable

Toro 103574

Shim Set
(Superseded to 25-2470)

$56.99

$

Usually ships in 3-6 days

0

4-88

Toro 7877

SEAL

$

$

Not available

4-89

Toro 103593

PLUG

$

$

Not available

4-90

Toro 973500

O-RING
(Superseded to 75-0240)

$2.99

$

Usually ships in 3-6 days

0

4-91

Toro 103591

Valve

$

$

Not available

Toro 973190

O-Ring

$

$

Not available

4-92

Toro 103590

BALL

$

$

Not available

4-93

Toro 103589

SPRING

$

$

Not available

4-94

Toro 103588

Sleeve
(Superseded to 25-2410)

$665.99

$

Usually ships in 3-6 days

0

4-95

Toro 103592

Spring
(Superseded to 25-2610)

$33.99

$

Usually ships in 3-6 days

0

4-96

Toro 103840

Plate

$

$

Not available

4-97

Toro 970132

O-RING

$6.99

$

Usually ships in 3-6 days

0

4-98

Toro 103461

SEAL
(Superseded to 25-3210)

$23.99

$

In Stock, only 2 left!

0

4-99

Toro 103462

WASHER-LAMBERT

$

$

Not available

4-100

Toro 103463

RING-LAMBERT

$

$

Not available
