1-0511 (B-100) - Toro Lawn Tractor (1975) Hitch Assemblies Parts Diagram

Lawn Tractor

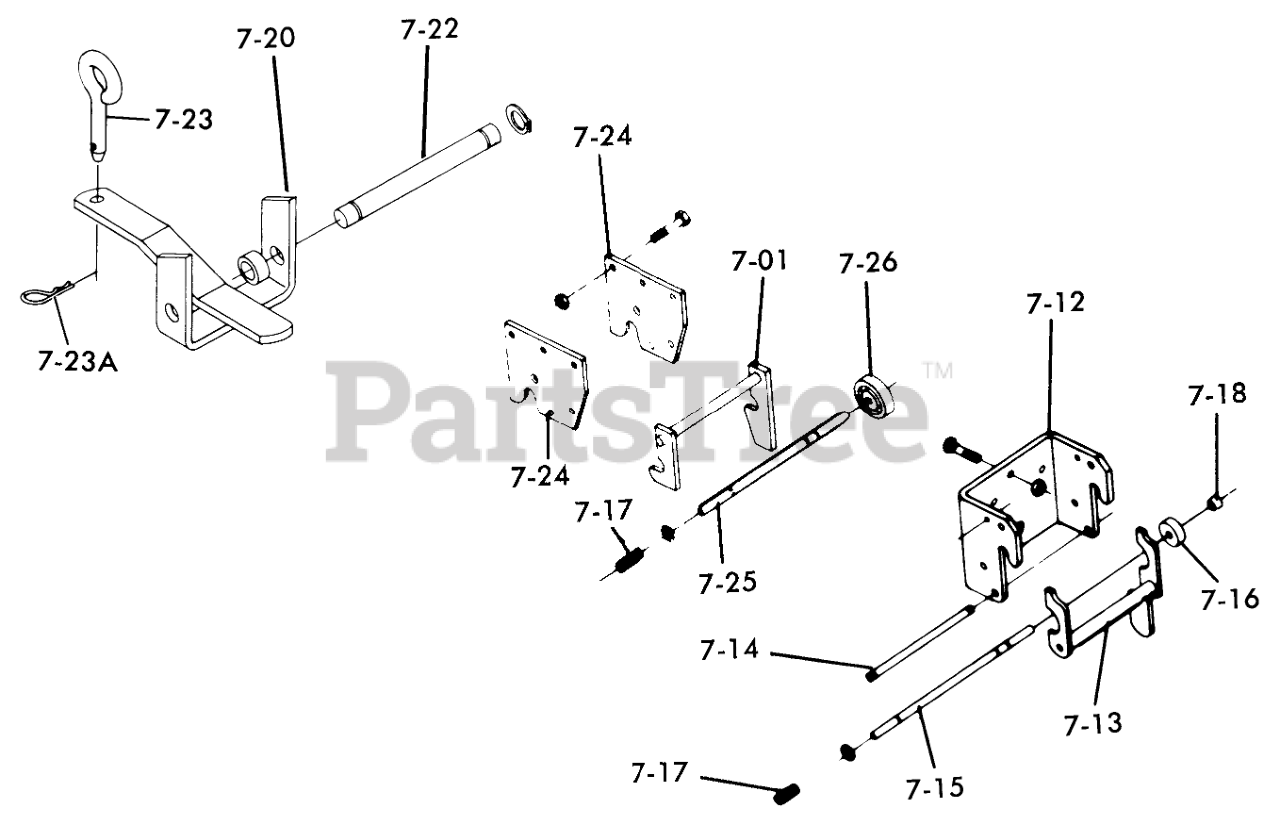

Hitch Assemblies Parts Diagram

  • Title

7-01

Toro 102639

See Supercession: 102639-01
(Superseded to 102639-01)

$

$

Not available

7-12

Toro 101711

See Supercession: 101711-01
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.49

$

In Stock, Qty 12

0

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

7-13

Toro 101741

See Supercession: 93-1613
(Superseded to 93-1613)

$

$

Not available

7-14

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

7-15

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

Toro MW-4564

Lock Rod

$

$

Currently unavailable

7-16

Toro 101707

LOCK

$

$

Not available

7-17

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

7-18

Toro 3680

See Supercession: 105316
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

7-20

Toro 1644

See Supercession: 98-8083-01
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

7-22

Toro 1647

See Supercession: 105269
(Superseded to 105269)

$

$

Not available

Toro 979120

See Supercession: 9791204
(Superseded to 9791204)

$

$

Not available

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

7-23

Toro 1813

See Supercession: 106634
(Superseded to 106634)

$

$

Not available

7-23A

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

7-24

Toro 102644

See Supercession: 102644-01
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

7-25

Toro 102672

DUP PART SEE $BOOK

$

$

Not available

7-26

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0
