1-0491 (C-120) - Toro Lawn Tractor (1975) 7.000 HITCH ASSEMBLIES (FIG. 7A) Parts Diagram

Lawn Tractor

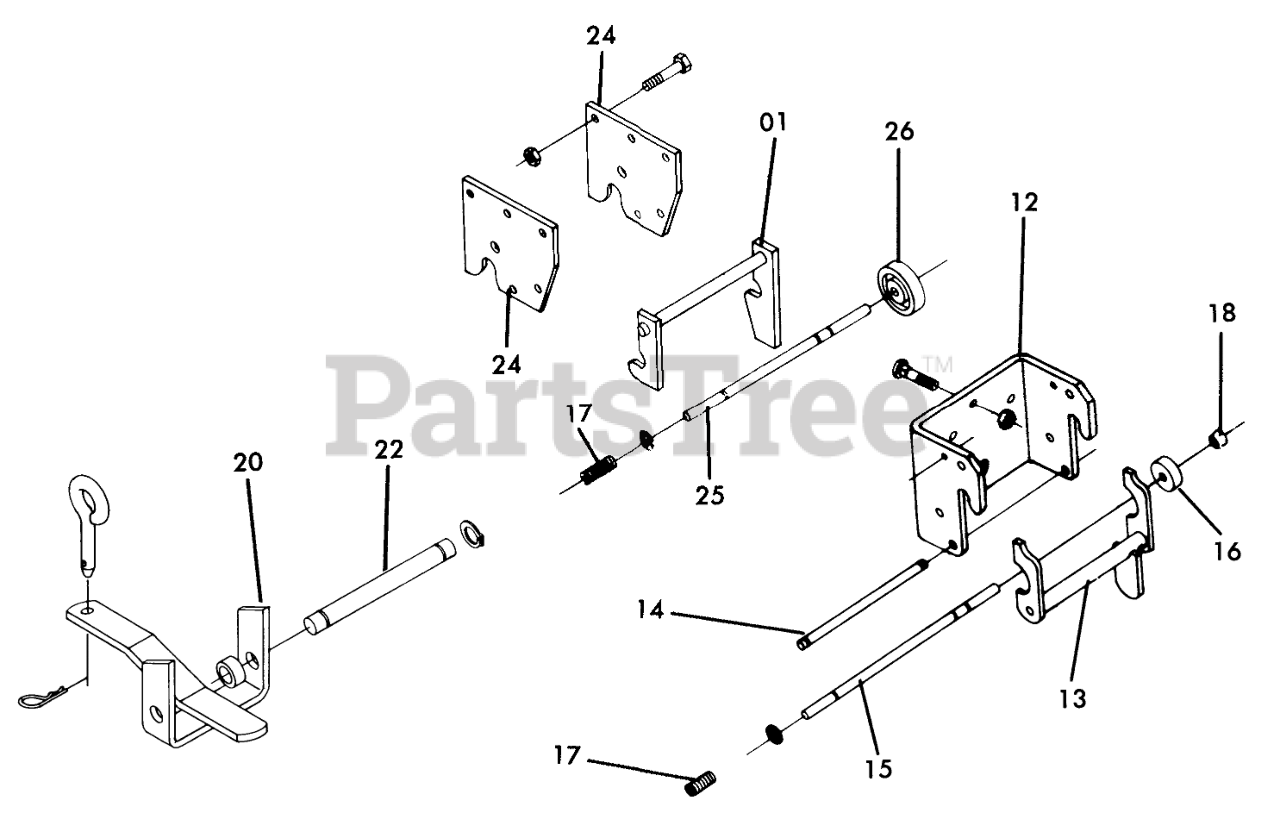

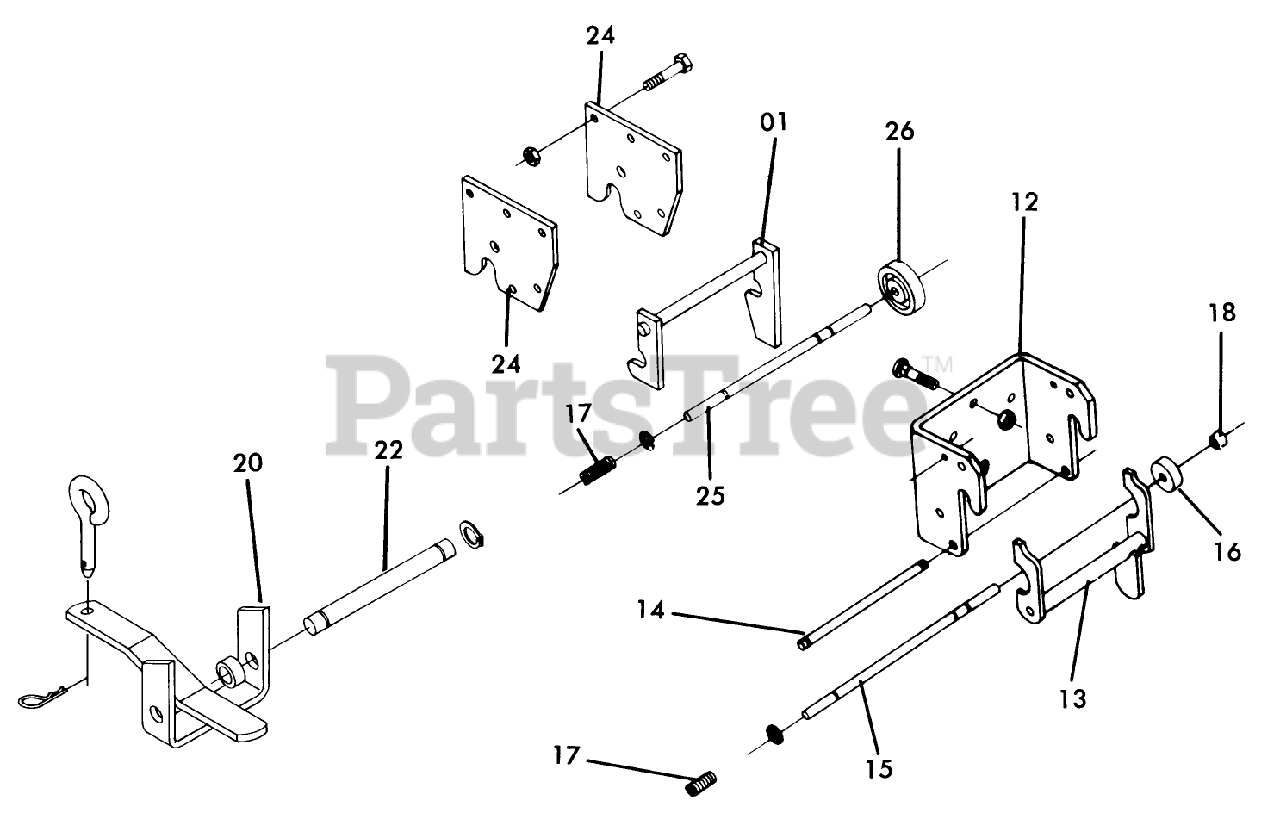

7.000 HITCH ASSEMBLIES (FIG. 7A) Parts Diagram

  • Title

01

Toro 102639

ASSY MID HITCH LA R
(Superseded to 102639-01)

$

$

Not available

12

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

13

Toro 101741

Latch Assembly
(Superseded to 93-1613)

$

$

Not available

14

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

14

Toro MW-4564

Lock Rod

$

$

Currently unavailable

15

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

15

Toro MW-4564

Lock Rod

$

$

Currently unavailable

16

Toro 101707

LOCK

$

$

Not available

17

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

18

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

20

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

22

Toro 1647

Pin
(Superseded to 105269)

$

$

Not available

22

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

22

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

22

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available

22

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

25

Toro 102672

Knob

$

$

Not available

25

Toro MW-4564

Lock Rod

$

$

Currently unavailable

26

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

26

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
