1-0490 (C-120) - Toro Lawn Tractor (1974) 9.000 ENGINE (PLATE 9.1) Parts Diagram

Lawn Tractor

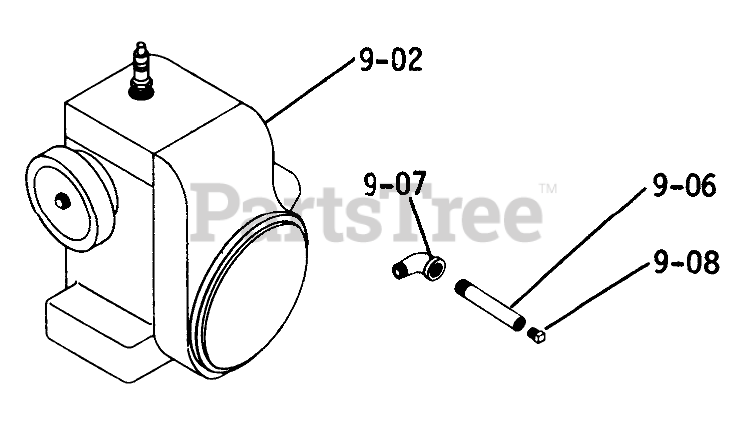

9.000 ENGINE (PLATE 9.1) Parts Diagram

  • Title

9-02

Toro 101955

Engine-12HP Kohler

$

$

Currently unavailable

9-02

Toro 102951

Engine-16HP Kohler

$

$

Currently unavailable

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

Toro 104116

J-Bolt-B-100

$

$

Not available

Toro 926718-4

Bolt 3/8-16 x 1 1/4 Swage

$

$

Currently unavailable

9-06

Toro 943335-4

Nipple 3/8 x 5

$

$

Currently unavailable

9-07

Toro 5222

ELBOW-STREET

$

$

Not available

9-08

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

9-02

Toro 101954

Engine-1OHP Kohler

$

$

Currently unavailable

9-02

Toro 100784

Engine 12 H.P. Lauson

$

$

Currently unavailable

Toro 103963

Hex Head Bolt

$

$

Not available

Toro 943364-4

Nipple 1" x 1 1/2

$

$

Currently unavailable

Toro 943026-4

Elbow 90 X 1

$

$

Currently unavailable
