1-0490 (C-120) - Toro Lawn Tractor (1974) 7.000 HITCH ASSEMBLIES (PLATE 7.1) Parts Diagram

Lawn Tractor

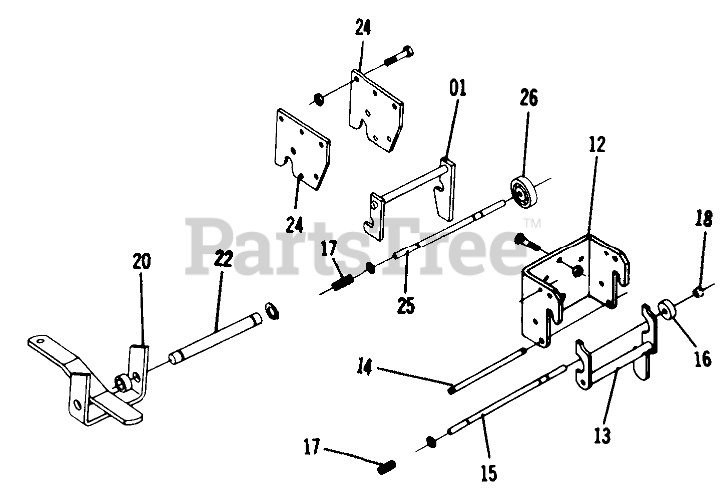

7.000 HITCH ASSEMBLIES (PLATE 7.1) Parts Diagram

  • Title

7-01

Toro 102639

ASSY MID HITCH LA R
(Superseded to 102639-01)

$

$

Not available

7-12

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

7-13

Toro 101741

Latch Assembly
(Superseded to 93-1613)

$

$

Not available

7-14

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

7-15

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

Toro MW-4564

Lock Rod

$

$

Currently unavailable

7-16

Toro 101707

LOCK

$

$

Not available

7-17

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

7-18

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

7-20

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

7-22

Toro 1647

Pin
(Superseded to 105269)

$

$

Not available

Toro 979120-4

Spacer

$

$

Currently unavailable

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available

7-24

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

7-25

Toro 102672

Knob

$

$

Not available

7-26

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915113-6

Nut

$

$

Currently unavailable
