1-0490 (C-120) - Toro Lawn Tractor (1974) 13.000 WHEELS AND TLRES (PLATE 13.1) Parts Diagram

Lawn Tractor

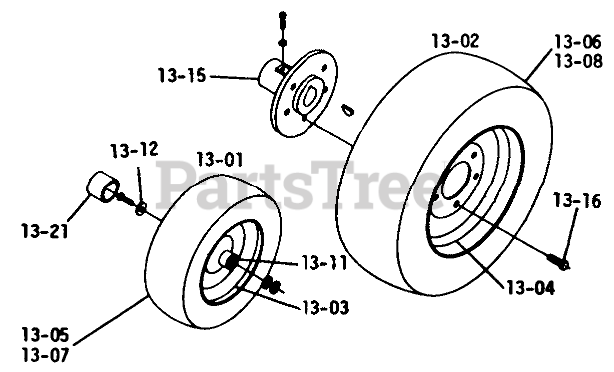

13.000 WHEELS AND TLRES (PLATE 13.1) Parts Diagram

  • Title

13-01

Toro 9791

Wheel-Complete
(Superseded to 105881)

$

$

Not available

13-02

Toro 5432

Wheel and Tire

$

$

Not available

13-04

Toro 5433

Wheel
(Superseded to 110677)

$

$

Not available

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

13-05

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

13-06

Toro 5434

Tire
(Superseded to 102786)

$

$

Not available

13-07

Toro 5512

Tube
(Superseded to 1669)

$

$

Not available

13-08

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

13-11

Toro 4999

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 4 left!

0

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

13-12

Toro 103470

WASHER

$67.99

$

Usually ships in 3-6 days

0

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

13-15

Toro 6465

Hub Wheel
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

Toro 937022

WOODRUFF KEY

$3.49

$

Usually ships in 3-6 days

0

13-16

Toro 1004

Lug Nut

$

$

Not available

13-21

Toro 103565

HUB CAP

$

$

Not available

13-02

Toro 100969

Tire & Wheel Assy

$

$

Not available

Toro 9652

WHEEL

$

$

Not available

13-06

Toro 100772

TIRE 22 X 7.50-12

$

$

Not available

13-12

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

13-12

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

13-15

Toro 4996

Hub-Wheel

$

$

Not available
