1-0485 (C-120) - Toro Lawn Tractor (1974) HYDROSTATIC TRANSMISSION PISTON (PISTON-TYPE) (PLATE 4.5) Parts Diagram

Lawn Tractor

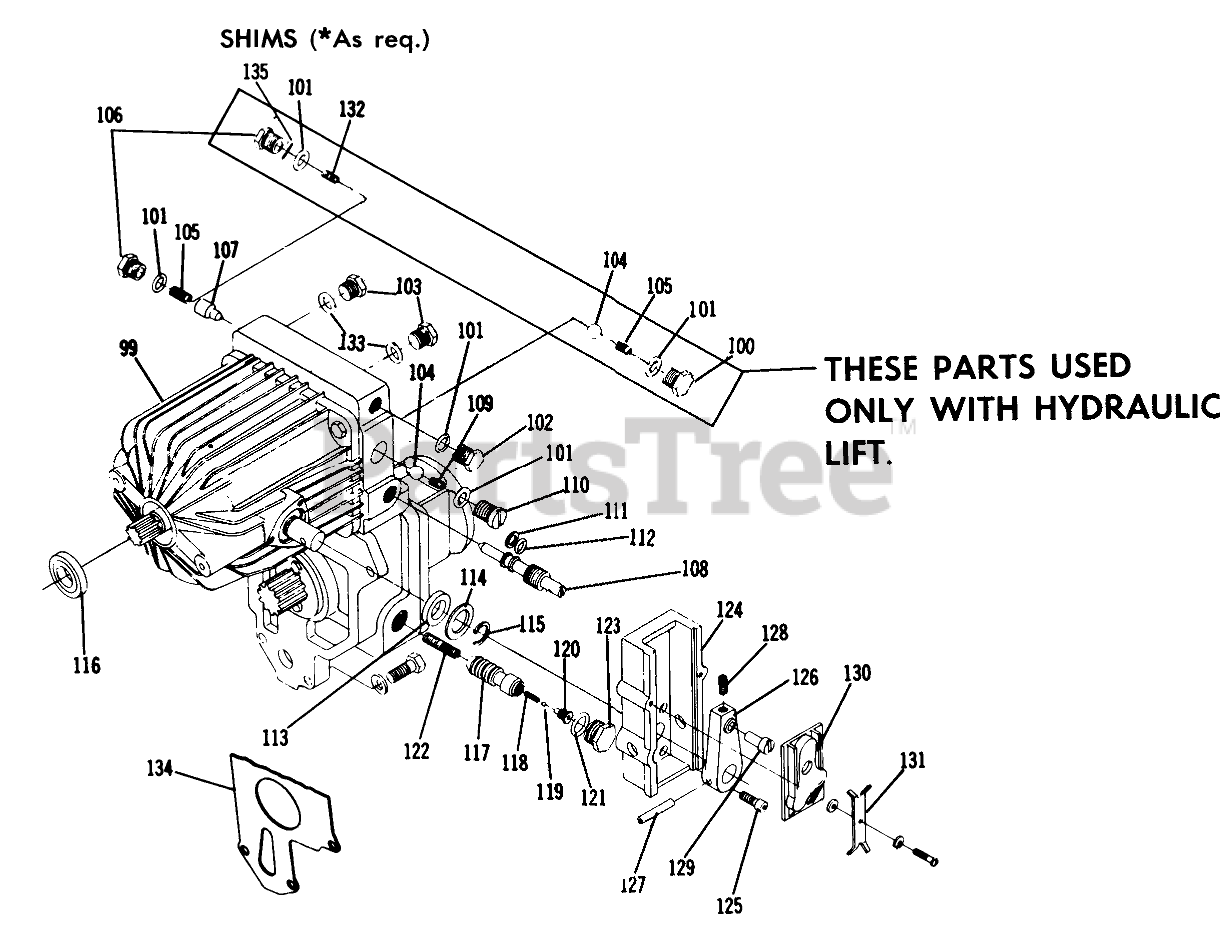

HYDROSTATIC TRANSMISSION PISTON (PISTON-TYPE) (PLATE 4.5) Parts Diagram

  • Title

4-100

Toro 7752

Plug
(Superseded to 25-2460)

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$42.99

$

Usually ships in 3-6 days

0

4-101

Toro 973310

O RING

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$4.99

$

In Stock, only 2 left!

0

4-104

Toro 103456

Ball

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$

$

Currently unavailable

4-105

Toro 103455

Spring Chg. Rel. Valve
(Superseded to 25-2480)

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$5.99

$

Usually ships in 3-6 days

0

4-106

Toro 103645

Plug

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$

$

Currently unavailable

4-107

Toro 7756

Cone

$

$

Not available

4-108

Toro 103460

VALVE

$

$

Not available

4-109

Toro 103457

Spring
(Superseded to 25-2640)

$4.99

$

Usually ships in 3-6 days

0

4-110

Toro 103458

PLUG
(Superseded to 25-2650)

$101.99

$

Usually ships in 3-6 days

0

4-111

Toro 971012

O-RING

$23.99

$

Usually ships in 3-6 days

0

4-112

Toro 103459

Back Up Ring
(Superseded to 25-2630)

$4.49

$

In Stock, only 3 left!

0

4-113

Toro 103461

SEAL
(Superseded to 25-3210)

$23.99

$

In Stock, only 2 left!

0

4-114

Toro 103462

WASHER-LAMBERT

$

$

Not available

4-115

Toro 103463

RING-LAMBERT

$

$

Not available

4-116

Toro 7877

SEAL

$

$

Not available

4-117

Toro 103588

Sleeve
(Superseded to 25-2410)

$665.99

$

Usually ships in 3-6 days

0

4-118

Toro 103589

SPRING

$

$

Not available

4-119

Toro 103590

BALL

$

$

Not available

4-120

Toro 103591

Valve

$

$

Not available

4-121

Toro 973190

O-Ring

$

$

Not available

4-122

Toro 103592

Spring
(Superseded to 25-2610)

$33.99

$

Usually ships in 3-6 days

0

4-123

Toro 103593

PLUG

$

$

Not available

4-124

Toro 5993

SUPPORT CAM BLOCK

$

$

Not available

4-125

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

4-126

Toro 102787

Belt Guide

$

$

Not available

4-127

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

4-128

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

4-129

Toro 599S

Eccentric-Cam Follower

$

$

Currently unavailable

4-130

Toro 5996

CAM

$25.99

$

Usually ships in 3-6 days

0

4-131

Toro 5998

TENSION PLATE

$

$

Not available

Toro 910777-4

Screw #8-32 x 1/2

$

$

Currently unavailable

Toro 920078-4

Lockwasher

$

$

Currently unavailable

Toro 920229-4

Washer

$

$

Currently unavailable

4-132

Toro 103110

SPRING VALVE SUNSTR
(Superseded to 25-2570)

Note: THESE PARTS USED ONLY WITH HYDRAULIC LIFT.

$14.99

$

Usually ships in 3-6 days

0

4-133

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

Toro 103184

RING BACKUP

$8.99

$

In Stock, Qty 7

0

Toro 97101S

Sm. O-Ring-Pump to Motor

$

$

Currently unavailable

4-134

Toro 102759

GASKET

$10.99

$

Usually ships in 3-6 days

0

4-135

Toro 103574

Shim Set
(Superseded to 25-2470)

Note: Shim as Required.

$56.99

$

Usually ships in 3-6 days

0

4-99

Toro 102866

Hydro Unit

$

$

Not available

4-102

Toro 943462

PLUG

$

$

Not available

4-103

Toro 103467

Plug-Hex 9/16-18

$

$

Not available
