1-0481 (C-160) - Toro Lawn Tractor (1975) 12.000 HYDRAULIC SYSTEM (FIG. 12) Parts Diagram

Lawn Tractor

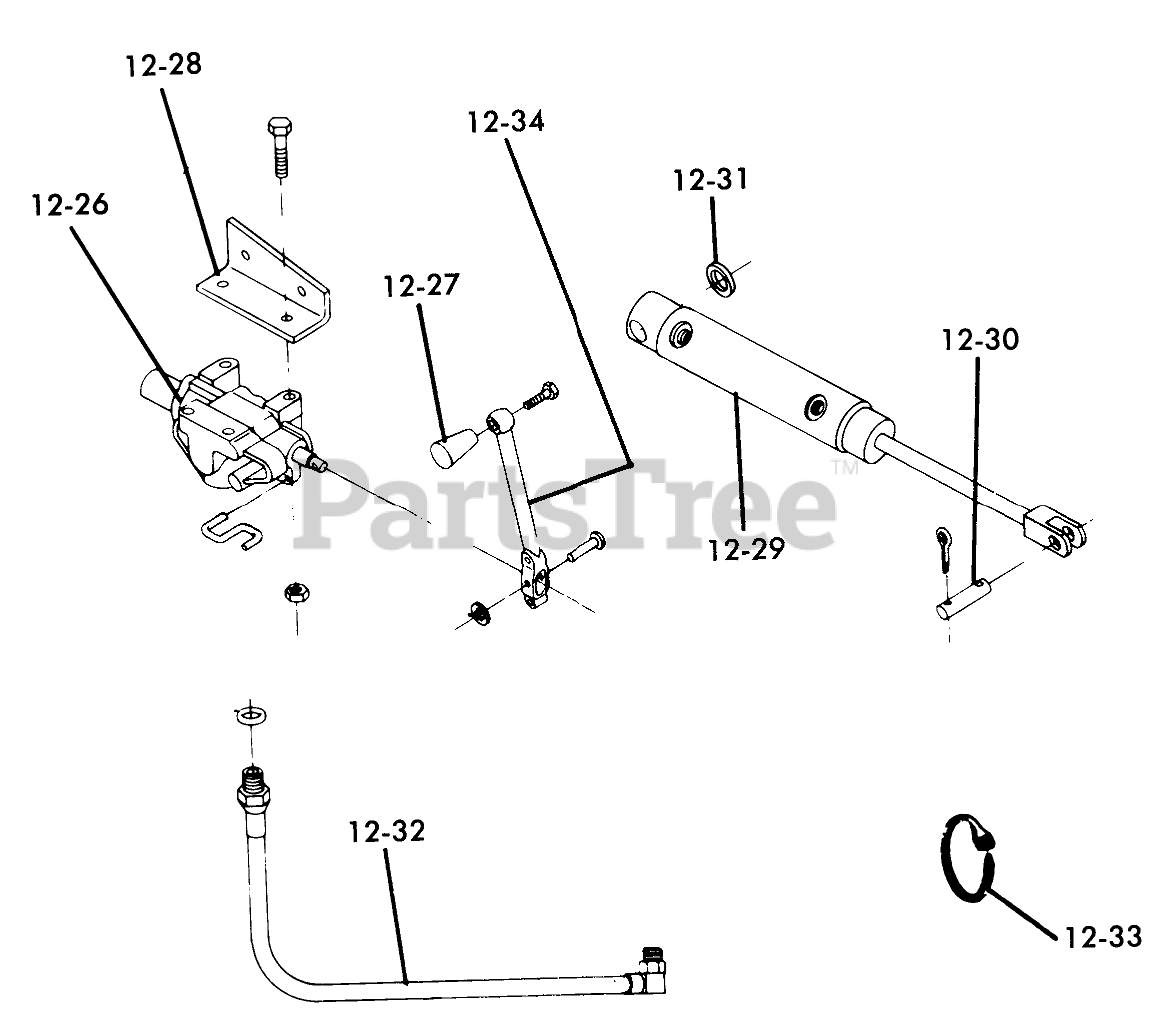

12.000 HYDRAULIC SYSTEM (FIG. 12) Parts Diagram

  • Title
12-26

Toro 103204

Valve

Note: C-160 ONLY

$

$

Not available

12-26

Toro 101538

Ring Kit
(Superseded to 110976)

Note: C-160 ONLY

$

$

Not available

12-26

Toro 101536

Spool Cap Kit

Note: C-160 ONLY

$

$

Not available

12-27

Toro 102892

KNOB

Note: C-160 ONLY

$31.99

$

Usually ships in 3-6 days

0

12-27

Toro 960154

SCREW

Note: C-160 ONLY

$

$

Not available

12-28

Toro 6620

SUPPORT-VALVE

Note: C-160 ONLY

$

$

Not available

12-28

Toro 926715

Bolt
(Superseded to 9267154)

Note: C-160 ONLY

$3.49

$

In Stock, Qty 6

0

12-28

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

Note: C-160 ONLY

$4.99

$

In Stock, only 2 left!

0

12-28

Toro 915111

Nut
(Superseded to 3217-5)

Note: C-160 ONLY

$0.99

$

In Stock, Qty 8

0

12-29

Toro 6618

Cylinder
(Superseded to 105254)

Note: C-160 ONLY

$

$

Not available

12-30

Toro 6619

PIN

Note: C-160 ONLY

$

$

Not available

12-30

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: C-160 ONLY

$0.99

$

Usually ships in 3-6 days

0

12-31

Toro 4064

Spacer
(Superseded to 703269)

Note: C-160 ONLY

$108.99

$

Usually ships in 3-6 days

0

12-32

Toro 103213

16" Hose Assembly

Note: C-160 ONLY

$

$

Not available

12-32

Toro 103214

HOSE HYDRAULIC 19"

Note: C-160 ONLY

$230.99

$

Usually ships in 3-6 days

0

12-32

Toro 104983

ASSY-HYDRAULIC HOSE

Note: C-160 ONLY

$

$

Not available

12-32

Toro 101423

HYD HOSE ASSY

Note: C-160 ONLY

$

$

Not available

12-33

Toro 100571

PLASTIC TIE

Note: C-160 ONLY

$

$

Not available

12-34

Toro 101537

Assy-Handle
(Superseded to 105145)

Note: C-160 ONLY

$

$

Not available
