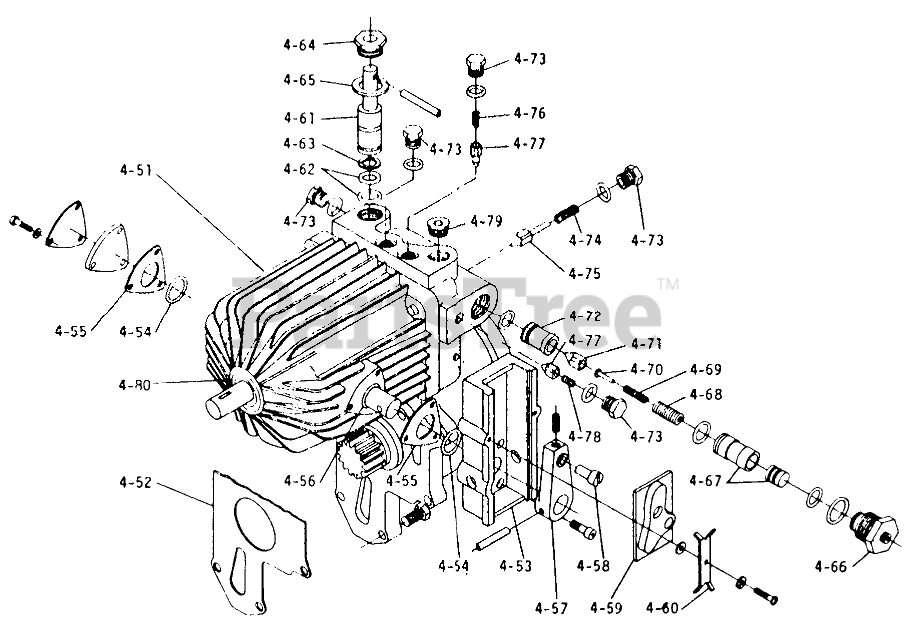

1-0423 - Toro Bronco 14 Lawn Tractor (1972) HYDROGEAR Parts Diagram

Bronco 14 Lawn Tractor

HYDROGEAR Parts Diagram

  • Title

4-51

Toro 7880

Hydrogear

$

$

Not available

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

4-52

Toro 5955

GASKET PUMP

$

$

Not available

4-53

Toro 5993

SUPPORT CAM BLOCK

$

$

Not available

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

4-54

Toro 970026

RING

$

$

Not available

4-55

Toro 6826

Shim

$

$

Not available

4-56

Toro 972116

O-Ring

$

$

Not available

4-57

Toro 5994

Arm-Cam Follower

$

$

Currently unavailable

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

4-58

Toro 5995

ECC CAM FOLLOWER

$

$

Not available

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

4-59

Toro 5996

CAM

$25.99

$

Usually ships in 3-6 days

0

4-60

Toro 5998

TENSION PLATE

$

$

Not available

Toro 910777-4

Screw #8-32 x 1/2

$

$

Currently unavailable

Toro 920078-4

Lockwasher

$

$

Currently unavailable

Toro 920229-4

Washer

$

$

Currently unavailable

4-61

Toro 7266

VALVE

$

$

Not available

Toro 933196

SPIROL PIN

$

$

Not available

4-62

Toro 971113

O-Ring

$

$

Not available

4-63

Toro 7268

RING BACK UP

$

$

Not available

4-64

Toro 7267

PLUG

$

$

Not available

4-66

Toro 6444

Ass-y Dampening Valve & Ring

$

$

Not available

Toro 970118

O RING

$

$

Not available

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

4-67

Toro 7054

Ass-y Piston & Sleeve (Matched)

$

$

Not available

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

4-68

Toro 7264

SPRING

$

$

Not available

4-69

Toro 7052

SPRING

$

$

Not available

4-70

Toro 7051

SUNDSTRAND 3100047

$

$

Not available

4-71

Toro 7050

Cone-Relief Valve

$

$

Not available

4-72

Toro 7049

SLEEVE RELIEF VALVE

$

$

Not available

Toro 971017

O RING

$

$

Not available

4-73

Toro 7752

Plug
(Superseded to 25-2460)

$42.99

$

Usually ships in 3-6 days

0

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

4-74

Toro 7753

SPRING-SUNDSTRAND

$

$

Not available

4-75

Toro 7754

Valve

$

$

Not available

4-76

Toro 7755

Spring Charge Pump Valve

$

$

Currently unavailable

4-77

Toro 7756

Cone

$

$

Not available

Toro 6632

Cone

$

$

Not available

4-78

Toro 6631

Spring

$

$

Not available

4-79

Toro 943462

PLUG

$

$

Not available

4-80

Toro 7877

SEAL

$

$

Not available
