1-0401 - Toro Charger 12 Lawn Tractor (1972) LIFT LINKAGE Parts Diagram

Charger 12 Lawn Tractor

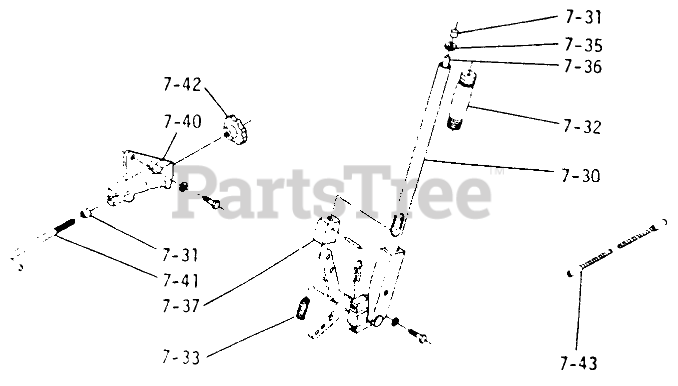

LIFT LINKAGE Parts Diagram

  • Title

7-30

Toro 5448

Lift Lever

$

$

Not available

Toro 933506-4

Hairpen

$

$

Currently unavailable

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

7-31

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

7-32

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

7-33

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

7-35

Toro 3578

Guide-Rod

$

$

Not available

7-36

Toro 5449

PLUNGER ROD

$

$

Not available

7-37

Toro 4438

LOWER PLUNGER R

$

$

Not available

Toro 933168

Roll Pin
(Superseded to 32121-114)

$2.49

$

Usually ships in 3-6 days

0

7-40

Toro 5640

Quadrant

$

$

Not available

7-41

Toro 2179

ROD-LIFT CONTROL

$

$

Not available

7-42

Toro 5280

KNOB-LIFT CONTROL

$31.99

$

Usually ships in 3-6 days

0

Toro 926715-4

Bolt, 3/8-16 x 3/4 S.T.

$

$

Currently unavailable

7-43

Toro 8277

Conduit

$

$

Not available
