1-0395 (C-120) - Toro Lawn Tractor (1975) 9.000 ENGINE (FIG. 9) Parts Diagram

Lawn Tractor

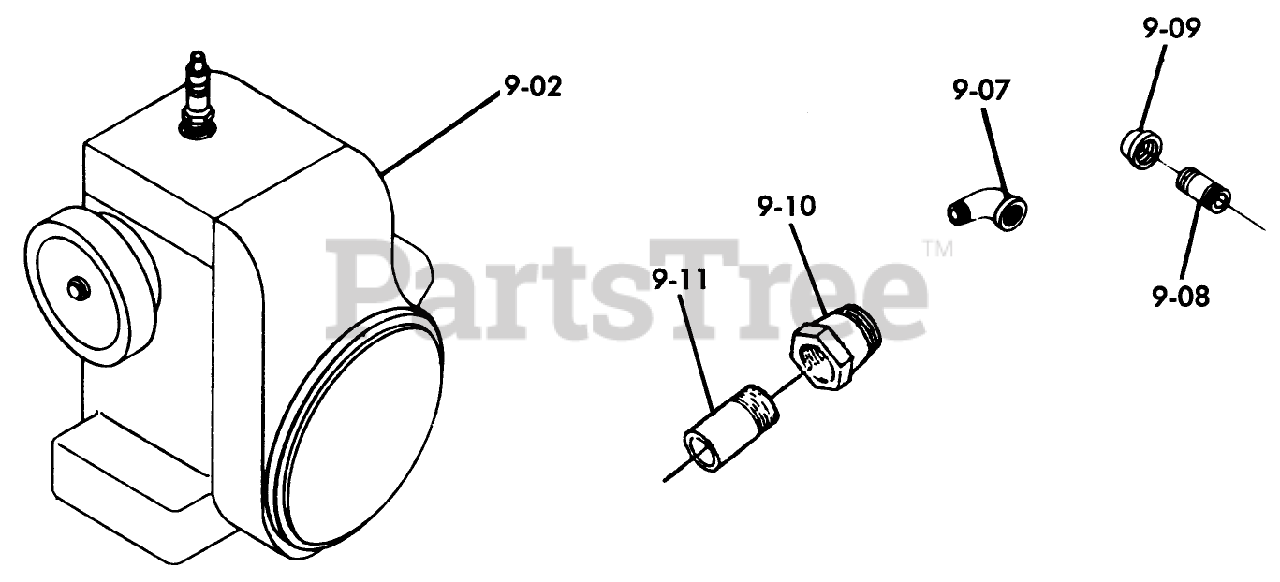

9.000 ENGINE (FIG. 9) Parts Diagram

  • Title

9-02

Toro 101955

Engine-12HP Kohler

$

$

Currently unavailable

Toro 101954

Engine-1OHP Kohler

$

$

Currently unavailable

Toro 102951

Engine-16HP Kohler

$

$

Currently unavailable

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

9-07

Toro 5222

ELBOW-STREET

$

$

Not available

9-08

Toro 943335

Nipple 3/8 x 5

$

$

Not available

9-09

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

9-10

Toro 943151

REDUCER 1 1/4-1

$

$

Not available

9-11

Toro 102265

NIPPLE

$

$

Not available

Toro 100784

Engine 12 H.P. Lauson

$

$

Currently unavailable

Toro 104815

Engine-Tecumseh C-120 (1-0375)

$

$

Currently unavailable
