1-0391 (C-100) - Toro Lawn Tractor (1975) 8.000 SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

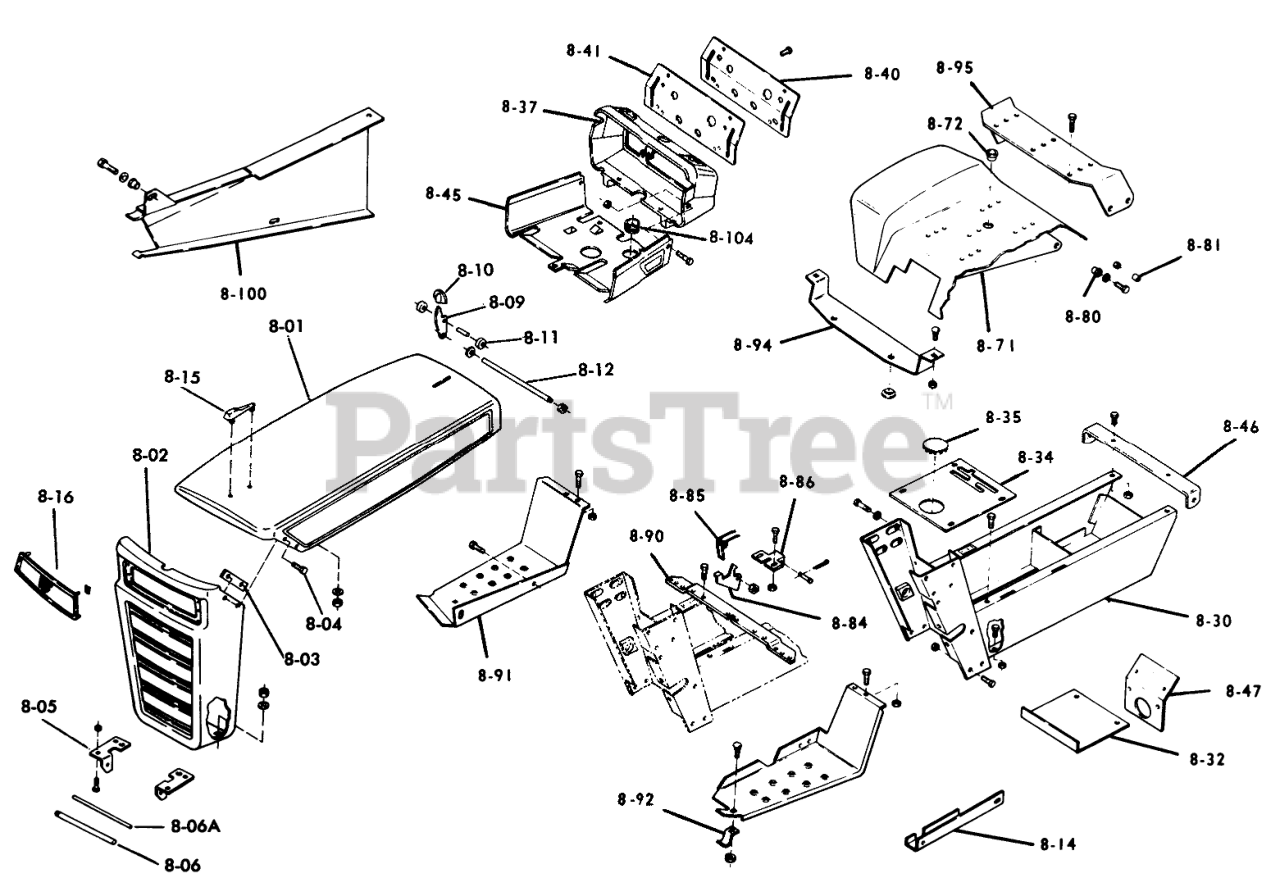

8.000 SHEET METAL AND COVERS Parts Diagram

  • Title

8-86

Toro 7616

BRACKET FENDER LATCH

$

$

Not available

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

8-90

Toro 103830

Bracket-Footrest

$

$

Not available

Toro 926694

SCREW

$

$

Not available

8-91

Toro 103372

Footrest-RH

$

$

Not available

Toro 102799

Footrest-L.H.
(Superseded to 105843)

$

$

Not available

Toro 105201

PAD-FOOTREST

$

$

Not available

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

Toro 960175

Screw

$

$

Not available

8-92

Toro 7456

BRACKET

$

$

Not available

8-94

Toro 102248

Fender Bracket

$

$

Not available

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

8-95

Toro 102249

Bracket Fender Hinge

$

$

Not available

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

8-100

Toro 103831

Machine Bushing

$

$

Not available

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

Toro 9690

Spacer

$

$

Not available

8-104

Toro 101971

Grommet

$

$

Not available

8-01

Toro 9699

Hood
(Superseded to 114289)

$

$

Not available

8-02

Toro 105039

Spacer Sleeve

$

$

Currently unavailable

8-03

Toro 105038

Plate, Grille

$

$

Currently unavailable

8-04

Toro 926693

Bolt
(Superseded to 9266934)

$8.99

$

In Stock, only 2 left!

0

8-05

Toro 101732

GRILL PIVOT BRKT

$

$

Not available

Toro 101733

Bracket-Grille-L.H.

$

$

Not available

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8-06

Toro 101710

GRILL PIVOT ROD

$

$

Not available

Toro 100398

E Ring-3/8
(Superseded to 105797)

$0.99

$

In Stock, Qty 20+

0

8-06A

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

8-09

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

Toro 933182

SPIROL PIN

$

$

Not available

8-10

Toro 5469

KNOB

$4.49

$

Usually ships in 3-6 days

0

8-11

Toro 5468

Roller

$

$

Not available

8-12

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

Toro 5466

SPEED NUT

$

$

Not available

Toro 915932

USE 915932P NUT

$8.49

$

Usually ships in 3-6 days

0

8-15

Toro 5438

Hood Ornament

$

$

Currently unavailable

Toro 5437

SPEED NUT

$

$

Not available

Toro 100646

WASHER

$

$

Not available

8-30

Toro 104698

Hoodstand Assembly

$

$

Not available

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

Toro 938030

Bushing

$

$

Not available

8-32

Toro 104180

Cover-Dust

$

$

Currently unavailable

8-34

Toro 103547

Cover Plate

$

$

Not available

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

Toro MW-4474

Clip

$

$

Currently unavailable

8-35

Toro 104745

Plug Button

$

$

Not available

8-37

Toro 5450

Housing

$

$

Not available

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

8-40

Toro 104023

Dash Panel

$

$

Not available

8-41

Toro 101841

BACK UP PLATE

$

$

Not available

Toro 5442

SPEED NUT

$

$

Not available

Toro 102168

SCREW BLACK

$

$

Not available

8-45

Toro 103877

Support-Tank

$

$

Not available

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

Toro 3023

SPEED CLIP

$

$

Not available

8-46

Toro 102304

Bracket

$

$

Not available

8-47

Toro 101344

Instrument Backet

$

$

Not available

Toro MW-4475

Clip

$

$

Currently unavailable

8-71

Toro 104853

FENDER R

$

$

Not available

8-80

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

8-81

Toro 4937

SPACER

$

$

Not available

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

8-84

Toro 104087

Fender Latch

$

$

Not available

8-85

Toro MW-8863

Spring

$

$

Currently unavailable

Toro 5977

NYLINER BUSHING

$6.99

$

Usually ships in 3-6 days

0

Toro 7617

Pin

$

$

Not available

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

8-07

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

8-101

Toro 102788

Front Belt Guide
(Superseded to 105201)

$

$

Not available

8-102

Toro 102789

Footrest Pad-L.H.
(Superseded to 105201)

$

$

Not available

8-103

Toro 102810

Channel

$

$

Not available

8-44

Toro 5606

Tape
(Superseded to 106556)

$

$

Not available
