1-0357 (C-120) - Toro Lawn Tractor (1975) 7.030 LIFT LINKAGE (FIG. 7B) Parts Diagram

Lawn Tractor

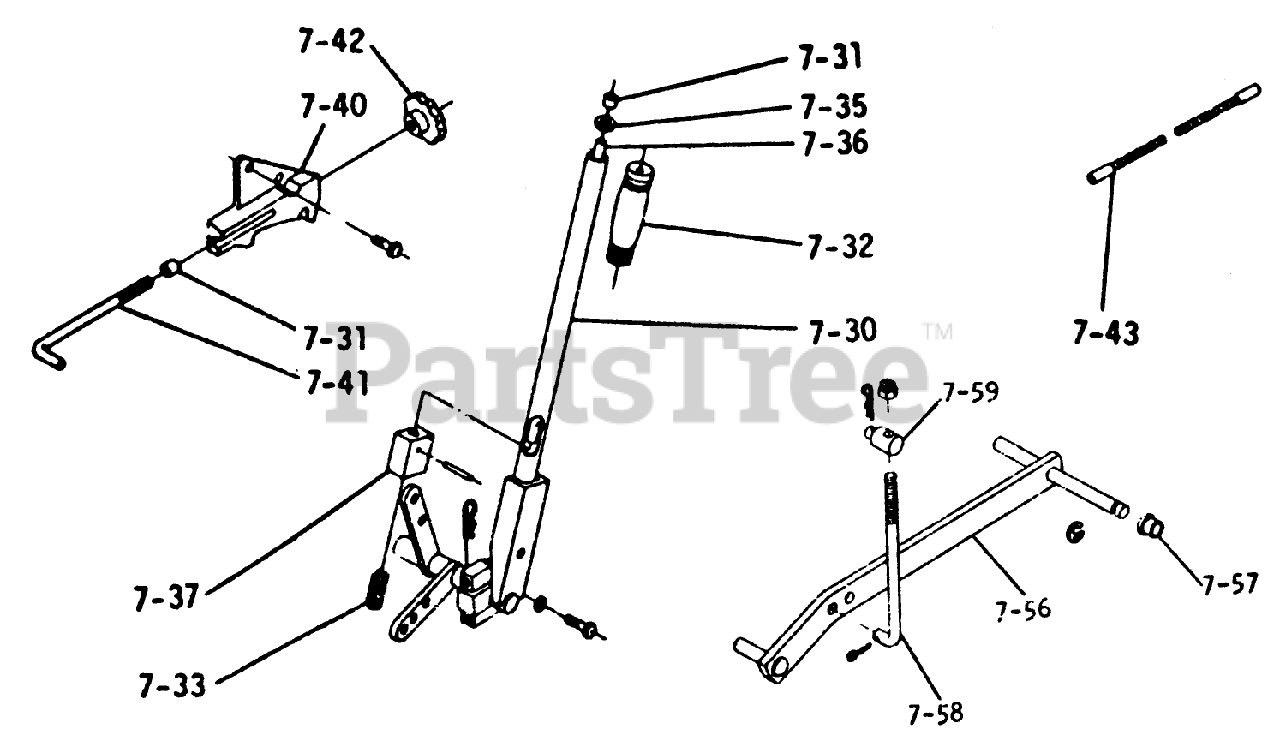

7.030 LIFT LINKAGE (FIG. 7B) Parts Diagram

  • Title

7-30

Toro 5448

Lift Lever

$

$

Not available

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

7-31

Toro 3680

Cap
(Superseded to 105316)

$1.49

$

In Stock, Qty 20+

0

7-32

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

7-33

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

7-35

Toro 3578

Guide-Rod

$

$

Not available

7-36

Toro 5449

PLUNGER ROD

$

$

Not available

7-37

Toro 4438

LOWER PLUNGER R

$

$

Not available

Toro 933168

Roll Pin
(Superseded to 32121-114)

$1.99

$

In Stock, only 2 left!

0

7-40

Toro 5640

Quadrant

$

$

Not available

7-41

Toro 2179

ROD-LIFT CONTROL

$

$

Not available

7-42

Toro 5280

KNOB-LIFT CONTROL

$26.99

$

Usually ships in 3-6 days

0

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

7-43

Toro 8277

Conduit

$

$

Not available

7-56

Toro 102373

ASSY LIFT BAR R
(Superseded to 102373-01)

$164.99

$

Usually ships in 3-6 days

0

7-57

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

7-58

Toro 102385

ROD-LIFT

$61.99

$

In Stock, only 1 left!

0

7-59

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
