1-0320 - Toro Raider 14 Lawn Tractor (1972) 7.000 HITCH ASSEMBLIES (PLATE 7.1) Parts Diagram

Raider 14 Lawn Tractor

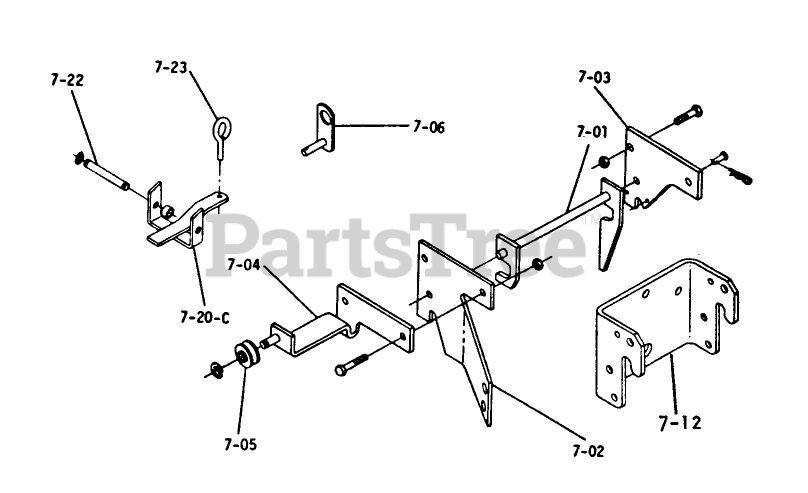

7.000 HITCH ASSEMBLIES (PLATE 7.1) Parts Diagram

  • Title

7-01

Toro 6710

ASSY LATCH & SHAF R

$

$

Not available

7-01

Toro 932120-4

Pin

$

$

Currently unavailable

7-01

Toro 933503-4

Hairpin

$

$

Currently unavailable

7-02

Toro 6712

MOUNTING BRACKET R

$231.99

$

Usually ships in 3-6 days

0

7-02

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

7-02

Toro 915113-6

Nut

$

$

Currently unavailable

7-03

Toro 4497

PLATE-MTG BRKT LH R (NS)

$

$

Not available

7-03

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

7-03

Toro 915113-6

Nut

$

$

Currently unavailable

7-04

Toro 8174

ASSY BRACKET AND R

$

$

Not available

7-05

Toro 6714

ROLLER

$

$

Not available

7-05

Toro MW-4564

Lock Rod

$

$

Currently unavailable

7-06

Toro 6727

Cam Arm

$

$

Not available

7-12

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

7-20-C

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

7-22

Toro 1647

Pin
(Superseded to 105269)

$

$

Not available

7-22

Toro 979120-4

Spacer

$

$

Currently unavailable

7-22

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

7-23

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available
