1-0320 - Toro Raider 14 Lawn Tractor (1972) 5.000 FRONT AXLE AND STEERING (PLATE 5.1) Parts Diagram

Raider 14 Lawn Tractor

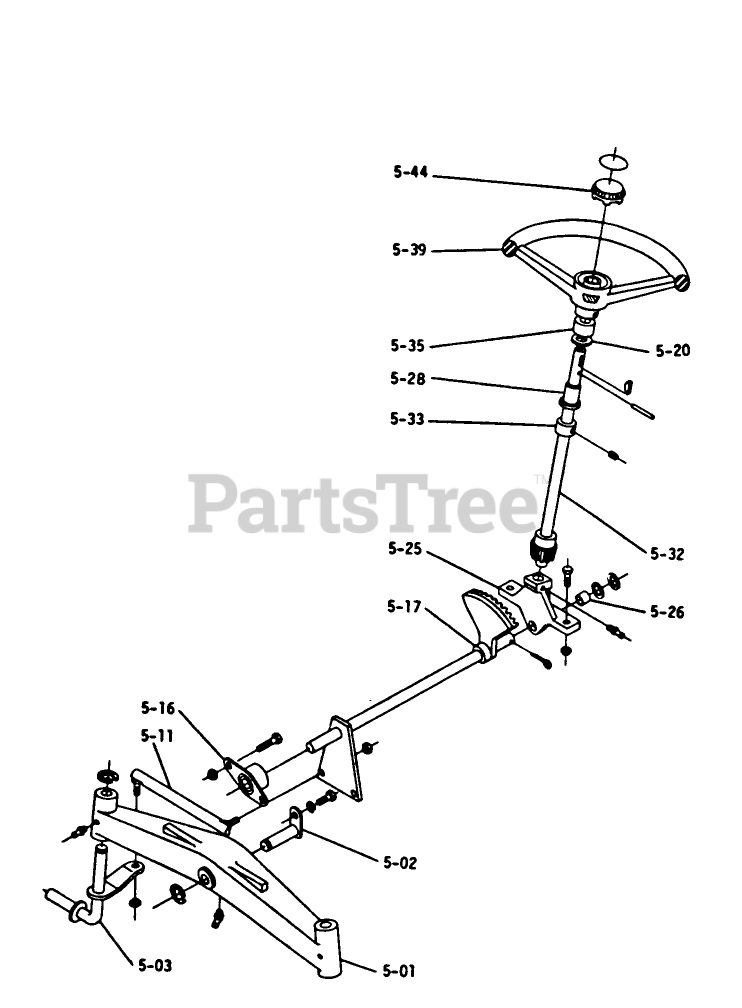

5.000 FRONT AXLE AND STEERING (PLATE 5.1) Parts Diagram

  • Title
5-01

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

5-01

Toro 1030

Zerk

$

$

Not available

5-01

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

5-02

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5-02

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

5-02

Toro 920082-4

Lockwasher

$

$

Currently unavailable

5-03

Toro 5630

R.H. Spindle
(Superseded to 115426)

$96.99

$

Usually ships in 3-6 days

0

5-03

Toro 103154

Assy. Spindle-L.H.

$

$

Not available

5-03

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

5-11

Toro 102592

Tie Rod RH
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

5-11

Toro 102593

Tie Rod LH
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

5-11

Toro 915002-6

Locknut 3/8-24

$

$

Currently unavailable

5-16

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

5-16

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

5-17

Toro 6469

Assy-Steering
(Superseded to 114198-01)

$

$

Not available

5-17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

5-17

Toro 127

603 1963 OPC

$3.23

$

Usually ships in 3-6 days

0

5-17

Toro 932035-4

Cotter Pin

$

$

Currently unavailable

5-20

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

5-25

Toro 6396

Support
(Superseded to 88-2710-03)

$

$

Not available

5-25

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

5-25

$

$

Currently unavailable

5-25

Toro 1030

Zerk

$

$

Not available

5-26

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

5-28

Toro 101442

BEARING

$

$

Not available

5-33

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

5-33

Toro 909848-5

Set Screw Nylok

$

$

Currently unavailable

5-35

Toro 7468

COLLAR

$

$

Not available

5-39

Toro 7420

Steering

$

$

Not available

5-39

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

5-39

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

5-44

Toro 7469

CAP INSERT

$

$

Not available

5-44

Toro 7421

Decal

$

$

Currently unavailable

5-32

Toro 7447

ASSY UPPER STEER R

$

$

Not available
