1-0320 - Toro Raider 14 Lawn Tractor (1972) 10.000 FUEL AND EXHAUST SYSTEMS (PLATE 10.1) Parts Diagram

Raider 14 Lawn Tractor

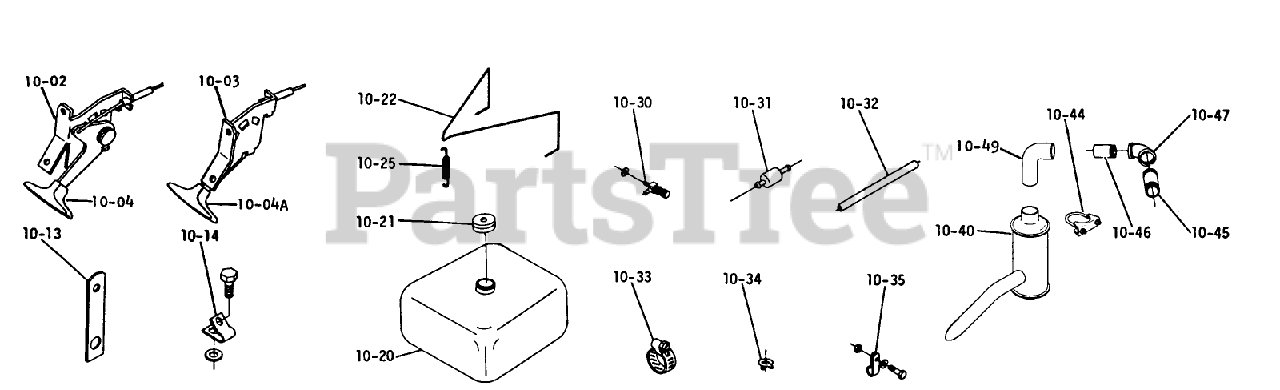

10.000 FUEL AND EXHAUST SYSTEMS (PLATE 10.1) Parts Diagram

  • Title

10-02

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

10-03

Toro 101834

THROTTLE CONTROL

$142.99

$

In Stock, only 1 left!

0

10-03

Toro 8713

SCREW

$

$

Not available

10-03

Toro 915964-4

#10-24 Kep-Nut

$

$

Currently unavailable

10-04

Toro 102186

KNOB-CHOKE

$18.99

$

In Stock, Qty 7

0

10-04A

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

10-13

Toro 100452

Strap

$

$

Not available

10-14

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

10-14

Toro 2879

Clip
(Superseded to 7922)

$3.99

$

Usually ships in 3-6 days

0

10-14

Toro 960150-4

Bolt 1/4-20 x 3/8

$

$

Currently unavailable

10-14

Toro 5431

Special Nut

$

$

Not available

10-14

Toro 9080014

Bolt, 1/4-20 x 1/2

$

$

Currently unavailable

10-14

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

10-20

Toro 100572

Tank-Fuel
(Superseded to 101468)

$

$

Not available

10-21

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-22

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

10-25

Toro 6949

CLUTCH SPRING

$

$

Not available

10-30

Toro 8023

S/A FUEL VALVE

$

$

Not available

10-30

Toro 5189

SPACER

$

$

Not available

10-31

Toro 100327

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

10-32

Toro 9212

Fuel Hose
(Superseded to 101338)

Note: Cut from 6554

$

$

Not available

10-32

Toro 100088

Fuel Hose
(Superseded to 101338)

Note: Cut from 6554

$

$

Not available

10-32

Toro 100061

FUEL HOSE 24" OF 6554

Note: Cut from 6554

$

$

Not available

10-32

Toro 8025

Hose-Fuel-Pump to Carb 5.5

Note: Cut from 6554

$

$

Currently unavailable

10-33

Toro 101349

CLAMP
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

10-34

Toro 950154

Clamp

$

$

Not available

10-35

Toro 101861

CLAMP-HOSE

$

$

Not available

10-35

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

10-35

Toro 920008-4

Washer

$

$

Currently unavailable

10-35

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

10-40

Toro 102258

MUFFLER

$

$

Not available

10-44

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

10-49

Toro 102228

MUFFLER INLET TUBE

$

$

Not available

10-03

Toro 101835

THROTTLE CONTROL

$

$

Not available

10-13

Toro 920007-4

Washer

$

$

Currently unavailable

10-13

Toro 910790-4

Screw-10-24 X 3/8

$

$

Currently unavailable

10-13

Toro 915538-6

Nut-10-24

$

$

Currently unavailable

10-14

Toro 7922

CLIP-CABLE

$3.99

$

Usually ships in 3-6 days

0

10-32

Toro 8714

Hose
(Superseded to 101338)

Note: Cut from 6554

$

$

Not available

10-32

Toro 102604

Skid Bracket
(Superseded to 100061)

Note: Cut from 6554

$

$

Not available

10-32

Toro 102713

Hose-Fuel-Pump to Carb. 3"
(Superseded to 101338)

Note: Cut from 6554

$

$

Not available

10-35

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

10-45

Toro 943364-4

Nipple 1" x 1 1/2

$

$

Currently unavailable

10-46

Toro 100090

Nipple-Special

$

$

Not available

10-47

Toro 943026-4

Elbow 90 X 1

$

$

Currently unavailable
