1-0301 - Toro Raider 10 Lawn Tractor (1972) 6.000 BRAKE/CLUTCH LINKAGE (PLATE 6.2) Parts Diagram

Raider 10 Lawn Tractor

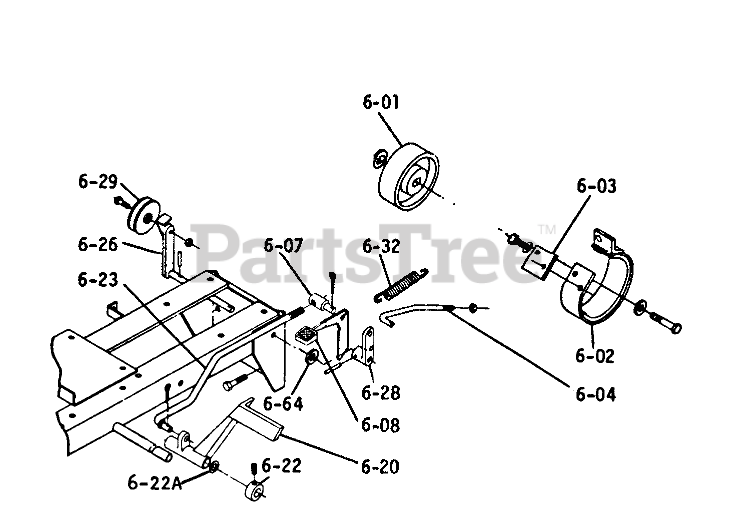

6.000 BRAKE/CLUTCH LINKAGE (PLATE 6.2) Parts Diagram

  • Title

6-01

Toro 9600

Drum-Brake
(Superseded to 704150)

$

$

Not available

6-01

Toro 908032-5

Bolt 3/8-16 x 3/4 Nylok

$

$

Currently unavailable

6-01

Toro 5951

WASHER

$

$

Not available

6-01

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

6-02

Toro 9593

BRAKE BAND ASM

$156.99

$

In Stock, only 3 left!

0

6-02

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

6-02

Toro 920081-4

Lockwasher

$

$

Currently unavailable

6-03

Toro 9598

Plate-Stop
(Superseded to 94-6696-03)

$10.99

$

Usually ships in 3-6 days

0

6-04

Toro 9599

Rod-Brake

$

$

Not available

6-04

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-04

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

6-07

Toro 1861

Trunnion

$

$

Not available

6-07

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

6-08

Toro 5544

Ass-y Lock-Brake

$

$

Not available

6-20

Toro 2267

Pedal

$

$

Not available

6-22

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

6-22

Toro 909848-5

Set Screw Nylok

$

$

Currently unavailable

6-22A

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, Qty 5

0

6-23

Toro 2593

Rod Clutch

$

$

Currently unavailable

6-23

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

6-26

Toro 9757

Assy.-Idler Arm

$

$

Not available

6-26

Toro 933158

SPIROL PIN

$

$

Not available

6-28

Toro 4899

Arm Clutch Rod Pivot

$

$

Not available

6-28

Toro 933158

SPIROL PIN

$

$

Not available

6-29

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 2 left!

0

6-29

Toro 911404-4

Bolt 3/8-16 x 1 5/8

$

$

Currently unavailable

6-29

Toro 915113-6

Nut

$

$

Currently unavailable

6-32

Toro 1014

Spring

$

$

Not available

6-64

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0
