1-0301 - Toro Raider 10 Lawn Tractor (1972) 3.010 TRANSMISSION 6-SPEED (PLATE 3.1) Parts Diagram

Raider 10 Lawn Tractor

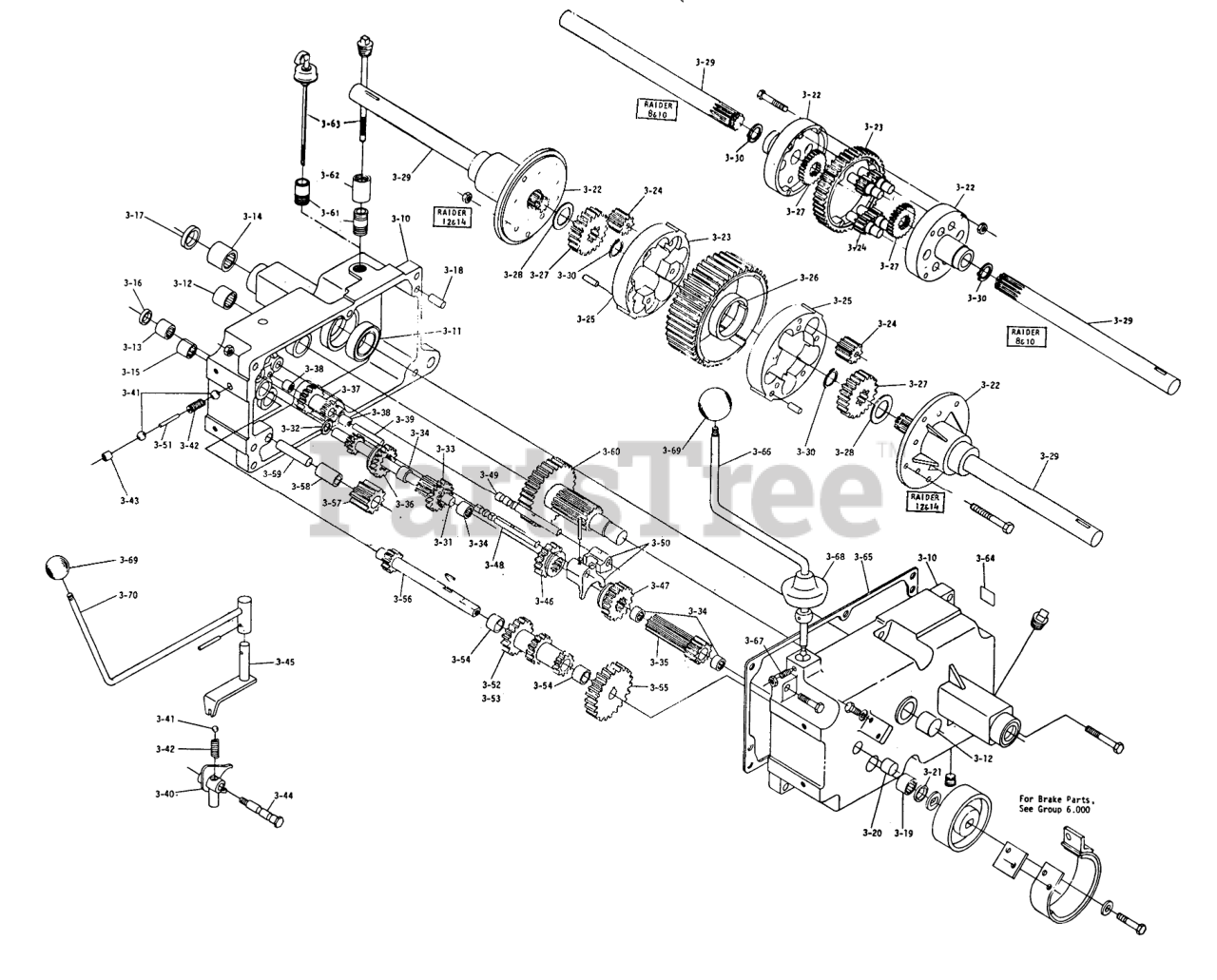

3.010 TRANSMISSION 6-SPEED (PLATE 3.1) Parts Diagram

  • Title

3-10

Toro 101761

Case-R.H.

$

$

Not available

3-10

Toro 3901

Case LH.

$

$

Not available

3-10

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

3-10

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

3-10

Toro 915113-6

Nut

$

$

Currently unavailable

3-10

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

3-10

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

3-11

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

3-12

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

3-13

Toro 1542

BEARING-NEEDLE

$43.99

$

In Stock, only 2 left!

0

3-14

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

3-15

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

3-16

Toro 100442

SEAL-OIL

$7.49

$

In Stock, Qty 6

0

3-17

Toro 100863

OIL SEAL

$16.99

$

In Stock, only 4 left!

0

3-18

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

3-19

Toro 1523

BEARING-NEEDLE

$42.99

$

Usually ships in 3-6 days

0

3-20

Toro 1531

Bearing Needle

$

$

Not available

3-21

Toro 100441

SEAL-OIL

$9.99

$

In Stock, only 1 left!

0

3-22

Toro 101053

Case-Differential

$

$

Not available

3-22

Toro 908146

Bolt, 5/16-18 x 1/4
(Superseded to 322-20)

$1.99

$

Usually ships in 3-6 days

0

3-22

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

3-23

Toro 3906

Bull Gear

$

$

Not available

3-24

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

3-27

Toro 3908

AXLE GEAR

$177.99

$

Usually ships in 3-6 days

0

3-29

Toro 101880

AXLE

$

$

Not available

3-30

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, only 4 left!

0

3-31

Toro 7201

SHAFT-INPUT

$

$

Not available

3-32

Toro 7418

WASHER-THR

$7.49

$

In Stock, only 4 left!

0

3-33

Toro 7204

GEAR

$

$

Not available

3-34

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

3-35

Toro 5175

GEAR

$

$

Not available

3-36

Toro 7205

GEAR-SLIDING

$

$

Not available

3-37

Toro 7206

Gear
(Superseded to 100-1338)

$318.99

$

Usually ships in 3-6 days

0

3-38

Toro 7207

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

3-39

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

3-40

Toro 7209

Shift Fork
(Superseded to 116636-03)

$

$

Not available

3-41

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

3-42

Toro 3518

Spring
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

3-43

Toro 1243

CUP-PLUG

$5.99

$

In Stock, Qty 10

0

3-44

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

3-45

Toro 7214

SHIFT ASM

$46.99

$

Usually ships in 3-6 days

0

3-46

Toro 5173

GEAR-HI AND 2ND

$149.99

$

Usually ships in 3-6 days

0

3-47

Toro 5174

GEAR-LOW AND REVERSE

$

$

Not available

3-48

Toro 5615

RAIL-SHIFT

$117.99

$

Usually ships in 3-6 days

0

3-49

Toro 5616

RAIL-REAR SHIFT

$90.99

$

Usually ships in 3-6 days

0

3-50

Toro 3503

FORK-SHIFT

$139.99

$

Usually ships in 3-6 days

0

3-50

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

3-51

Toro 5614

PIN-SHIFT

$

$

Not available

3-52

Toro 7269

GEAR-CLUSTER

$

$

Not available

3-53

Toro 3525

Cluster Gear
(Superseded to 7269)

$

$

Not available

3-54

Toro 1504

BUSHING-BRONZE

$50.99

$

Usually ships in 3-6 days

0

3-55

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

3-56

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

3-56

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

Usually ships in 3-6 days

0

3-57

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$165.99

$

Usually ships in 3-6 days

0

3-58

Toro 1516

BUSHING

$14.99

$

Usually ships in 3-6 days

0

3-59

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

3-60

Toro 9839

Gear 44T-11T

$

$

Not available

3-61

Toro 102274

Nipple-1/2" X 1 1/2" Pipe

$

$

Currently unavailable

3-63

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

3-65

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 2 left!

0

3-66

Toro 5632

Shift Stick
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0

3-67

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

3-67

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

3-68

Toro 3577

COVER-DUST

$

$

Not available

3-69

Toro 1001

Knob

$

$

Not available

3-70

Toro 7217

Handle-Shift
(Superseded to 110727)

$93.99

$

Usually ships in 3-6 days

0

3-70

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

3-10

Toro 8163

Case RH

$

$

Not available

3-10

Toro 6941

Case L.H.

$

$

Not available

3-14

Toro 1526

Bearing-Axle

$

$

Not available

3-17

Toro 100443

SEAL-OIL

$14.99

$

Usually ships in 3-6 days

0

3-22

Toro 8050

End Cap-RH

$

$

Not available

3-22

Toro 8051

End Cap-LH

$

$

Not available

3-22

Toro 908138-4

Bolt Hex 3 1/4

$

$

Currently unavailable

3-22

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

3-23

Toro 7196

Gear-Ring

$

$

Not available

3-24

Toro 8056

PINION

$

$

Not available

3-25

Toro 7200

Body

$

$

Not available

3-25

Toro 933209

SPIROL ROLL PIN

$

$

Not available

3-26

Toro 7235

Spring

$

$

Not available

3-27

Toro 8053

SIDE GEAR

$

$

Not available

3-28

Toro 7199

THRUST WASHER

$

$

Not available

3-29

Toro 7202

Axle, R.H.
(Superseded to 121384)

$

$

Not available

3-30

Toro 7169

SNAP RING

$

$

Not available

3-29

Toro 7203

Axle, L.H.
(Superseded to 121384)

$

$

Not available
