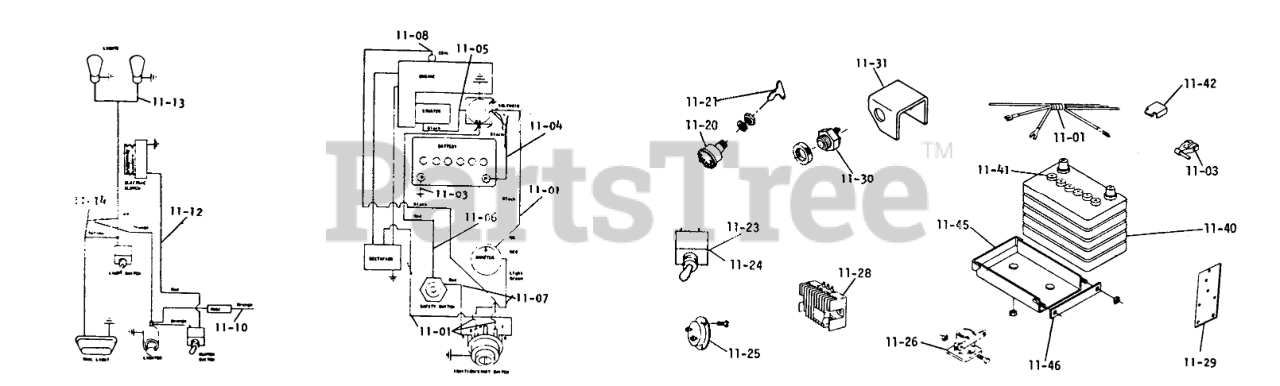

1-0301 - Toro Raider 10 Lawn Tractor (1972) 11.000 ELECTRICAL SYSTEM (PLATE 11.1) Parts Diagram

Raider 10 Lawn Tractor

11.000 ELECTRICAL SYSTEM (PLATE 11.1) Parts Diagram

  • Title

11-01

Toro 101843

Harness-Wiring (Main)

$

$

Not available

11-01

Toro 100571

PLASTIC TIE

$

$

Not available

11-01

Toro 101446

CONTROL PROTECTOR

$

$

Not available

11-03

Toro 100446

Wire-Ground
(Superseded to 105272)

$

$

Not available

11-04

Toro 101972

WIRE SOLENOID

$

$

Not available

11-05

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-06

Toro 102250

WIRE ASSY

$

$

Not available

11-07

Toro 102251

Wire Assy.

$

$

Not available

11-08

Toro 101943

Wire Assy.-Coil to Harness

$

$

Not available

11-20

Toro 101917

Switch-Ignition
(Superseded to 92-6785)

$74.99

$

In Stock, only 1 left!

0

11-20

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

11-20

Toro 920160-4

Lockwasher 5/8

$

$

Currently unavailable

11-21

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

11-25

Toro 102046

AMMETER W/CLAMP

$

$

Not available

11-25

Toro 102047

Clamp
(Superseded to 109604)

$

$

Not available

11-25

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

11-26

Toro 8658

Solenoid
(Superseded to 108544)

$116.99

$

Usually ships in 3-6 days

0

11-26

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

11-28

Toro 101450

REGULATOR-RECTIFIER

$337.99

$

Usually ships in 3-6 days

0

11-28

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

11-28

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11-30

Toro 101845

SWITCH SAFETY

$91.99

$

Usually ships in 3-6 days

0

11-30

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

11-31

Toro 101827

Bracket

$

$

Not available

11-31

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

11-31

Toro 915113-6

Nut

$

$

Currently unavailable

11-40

Toro 100502

Battery
(Superseded to 104961)

$

$

Not available

11-41

Toro 100438

Cap

$

$

Not available

11-42

Toro 9155

Cover Battery Term
(Superseded to 107383)

$

$

Not available

11-45

Toro 7781

BATTERY BOX ASSY R (NS)

$

$

Not available

11-45

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

11-46

Toro 7779

LINK BATTERY CLAMP

$58.99

$

Usually ships in 3-6 days

0

11-46

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11-03

Toro 100335

WIRE-GROUND

$24.99

$

Usually ships in 3-6 days

0

11-04

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-29

Toro 102371

PLATE COIL & SOL MTG

$

$

Not available

11-40

Toro 100503

Battery
(Superseded to 105-1692)

$

$

Not available

11-40

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

11-40

Toro 920007-4

Washer

$

$

Currently unavailable

11-40

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11-45

Toro 4953

Battery Box

$

$

Not available

11-46

Toro 4958

LINK BATTERY CLAM R

$

$

Not available

11-10

Toro 101846

ASSY FUSED CONNECTOR

$

$

Not available

11-10

Toro 101639

FUSE

$2.99

$

Usually ships in 3-6 days

0

11-13

Toro 7226

WIRE ASSY

$

$

Not available

11-14

Toro 100778

Harness-Headlights

$

$

Not available

11-14

Toro 8519

CLIP-WIRE

$

$

Not available

11-24

Toro 102138

SWITCH-LIGHTS

$34.99

$

Usually ships in 3-6 days

0

11-24

Toro 8785

Nut, Knurled

$

$

Not available

11-24

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11-03

Toro 101943

Wire Assy.-Coil to Harness

$

$

Not available

11-40

Toro 100438

Cap

$

$

Not available

11-02

Toro 101971

Grommet

$

$

Not available
