1-0280 (A-800) - Toro Ranger Lawn Tractor (1974) A-800 Mower Parts List Parts Diagram

Ranger Lawn Tractor

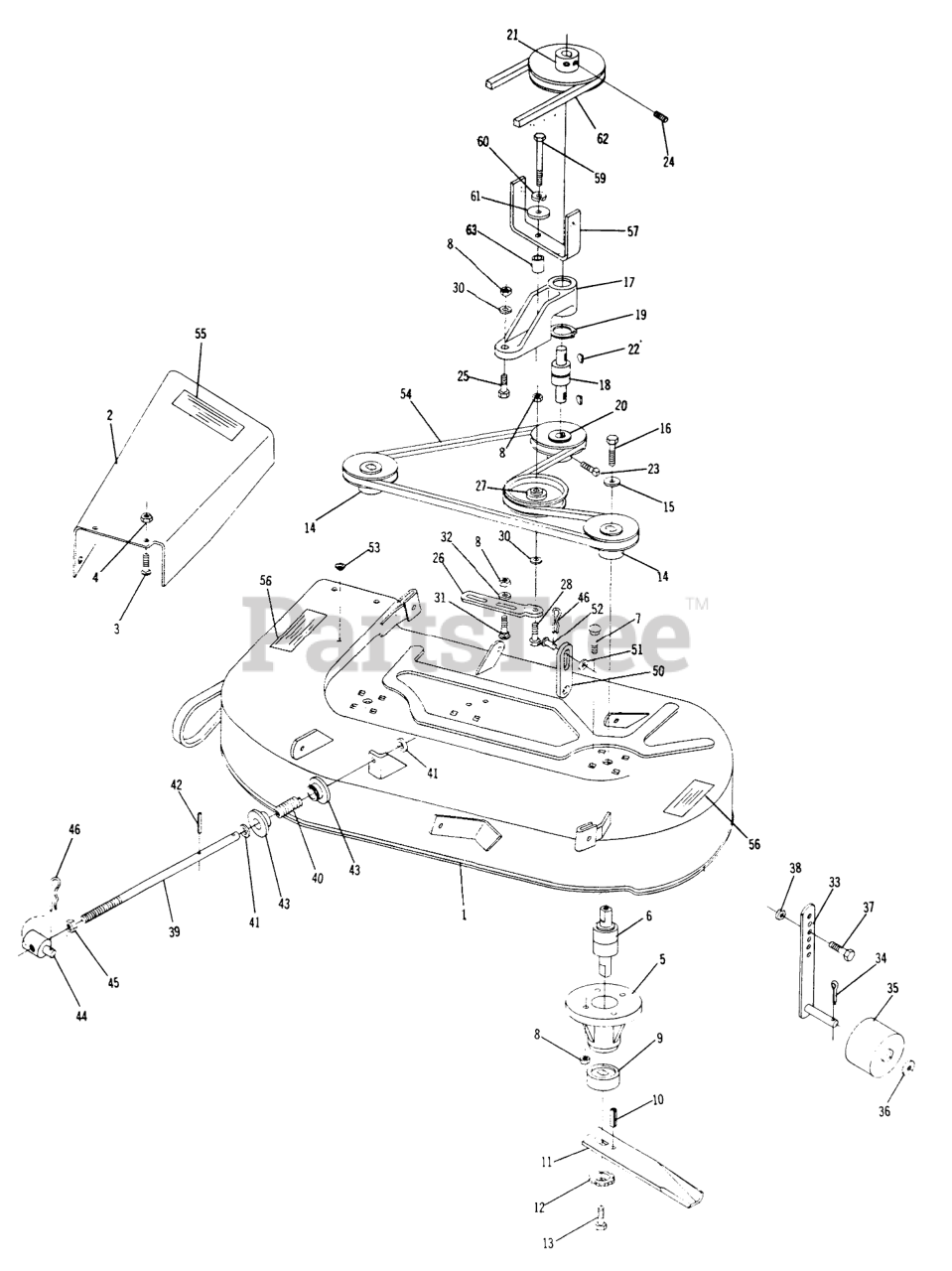

A-800 Mower Parts List Parts Diagram

  • Title

1

Toro 104439

DISCONTINUED

$

$

Not available

2

Toro 102650

Extension-Chute

$

$

Currently unavailable

3

Toro 910864-4

Bolt 5/16-18 x 5/8*

$

$

Currently unavailable

4

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

5

Toro 8389

DISCONTINUED
(Superseded to 101525)

$

$

Not available

6

Toro 103119

DISCONTINUED

$

$

Not available

7

Toro 900234-9

Bolt-Carriage 3/8-16 x 1

$

$

Currently unavailable

8

Toro 915113-6

Nut

$

$

Currently unavailable

9

Toro 104373

See Supercession: 102780
(Superseded to 102780)

$136.99

$

In Stock, only 1 left!

0

10

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

11

Toro 6758

DISCONTINUED
(Superseded to 100202)

$

$

Not available

12

Toro 1336

DISCONTINUED

$

$

Not available

13

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

14

Toro 101230

PULLEY

$98.99

$

Usually ships in 3-6 days

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

16

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

17

Toro 104176

See Supercession: 104176-01
(Superseded to 104176-01)

$

$

Not available

18

Toro 103711

DISCONTINUED

$

$

Not available

19

Toro 936021

See Supercession: 32120-10
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

20

Toro 102723

PULLEY-LOWER DRIVE

$108.99

$

Usually ships in 3-6 days

0

21

Toro 102724

DISCONTINUED

$

$

Not available

22

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

23

Toro 909539-4

Set Screw-5/16-18 x 3/8

$

$

Currently unavailable

24

Toro 909862-5

Set Screw

$

$

Currently unavailable

25

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

26

Toro 8978

DISCONTINUED

$

$

Not available

27

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

28

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

30

Toro 920009-4

Washer

$

$

Currently unavailable

31

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

32

Toro 920036-4

Washer-3/8 U.S.

$

$

Currently unavailable

33

Toro 9629

DISCONTINUED

$

$

Not available

34

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

35

Toro 100285

ROLLER ASSY

$

$

Not available

36

Toro 920011-4

Washer

$

$

Currently unavailable

37

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

38

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

39

Toro 103427

DISCONTINUED

$

$

Not available

40

Toro 101439

DISCONTINUED

$

$

Not available

41

Toro 920010-4

Washer

$

$

Currently unavailable

42

Toro 933154

PIN-ROLL

$8.49

$

In Stock, only 1 left!

0

43

Toro 101441

BUSHING

$

$

Not available

44

Toro 103431

DISCONTINUED

$

$

Not available

45

Toro 915237-4

Jam Nut-7/16-14

$

$

Currently unavailable

46

Toro 933505-4

Hairpin

$

$

Currently unavailable

50

Toro 8977

LIFT LINK

$

$

Not available

51

Toro 920248

WASHER-NYLON

$0.99

$

Usually ships in 3-6 days

0

52

Toro 932961-4

Clevis Pin 3/8 x 3/4

$

$

Currently unavailable

53

Toro 100146

Plug Button

$

$

Currently unavailable

54

Toro 8976

DISCONTINUED
(Superseded to 104865)

$

$

Not available

55

Toro 103707

DISCONTINUED

$

$

Not available

56

Toro 4570

See Supercession: 93-1122
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

57

Toro 104177

DISCONTINUED

$

$

Not available

59

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

60

Toro 920083-4

Lockwasher

$

$

Currently unavailable

61

Toro 103470

WASHER

$6.49

$

Usually ships in 3-6 days

0

62

Toro 104388

DISCONTINUED

$

$

Not available

63

Toro 979369

DISCONTINUED

$

$

Not available
