1-0145 (B-80) - Toro Lawn Tractor (1974) 10.000 FUEL AND EXHAUST SYSTEMS (PLATE 10.1) Parts Diagram

Lawn Tractor

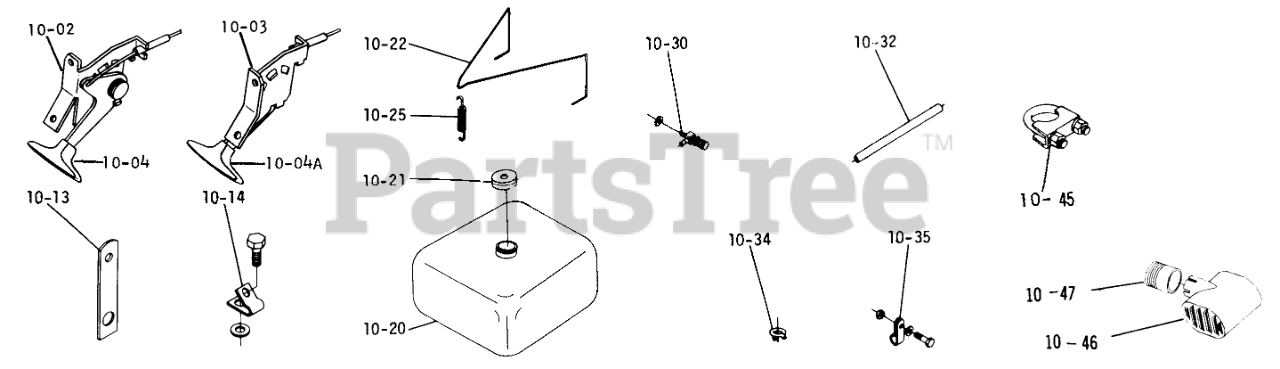

10.000 FUEL AND EXHAUST SYSTEMS (PLATE 10.1) Parts Diagram

  • Title

10-02

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

10-03

Toro 101835

THROTTLE CONTROL

$

$

Not available

Toro 8713

SCREW

$

$

Not available

Toro 915964-4

#10-24 Kep-Nut

$

$

Currently unavailable

10-04

Toro 102186

KNOB-CHOKE

$15.99

$

In Stock, Qty 7

0

10-04A

Toro 102185

KNOB-THROTTLE

$15.99

$

Usually ships in 3-6 days

0

10-13

Toro 100452

Strap

$

$

Not available

Toro 920007-4

Washer

$

$

Currently unavailable

Toro 910792-4

Screw-10-24 x 1/2 Pan Head

$

$

Currently unavailable

Toro 915538-6

Nut-10-24

$

$

Currently unavailable

Toro 926671-4

Screw-1/4-20 x 1/2

$

$

Currently unavailable

10-14

Toro 100729

THROTTLE CONTROL CLP

$6.49

$

Usually ships in 3-6 days

0

Toro 7922

CLIP-CABLE

$3.49

$

Usually ships in 3-6 days

0

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

10-20

Toro 104065

ASSY-FUEL TANK

$

$

Not available

10-21

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-22

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

10-25

Toro 6949

CLUTCH SPRING

$

$

Not available

10-30

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10-32

Toro 5436

Hose-Fuel

$

$

Not available

10-34

Toro 950154

Clamp

$

$

Not available

10-35

Toro 101861

CLAMP-HOSE

$

$

Not available

10-45

Toro 102645

ASSY-MUFFLER CLAMP

$13.99

$

In Stock, only 1 left!

0

10-46

Toro 103055

MUFFLER

$603.99

$

Usually ships in 3-6 days

0

10-47

Toro 103096

Nipple

$

$

Not available
