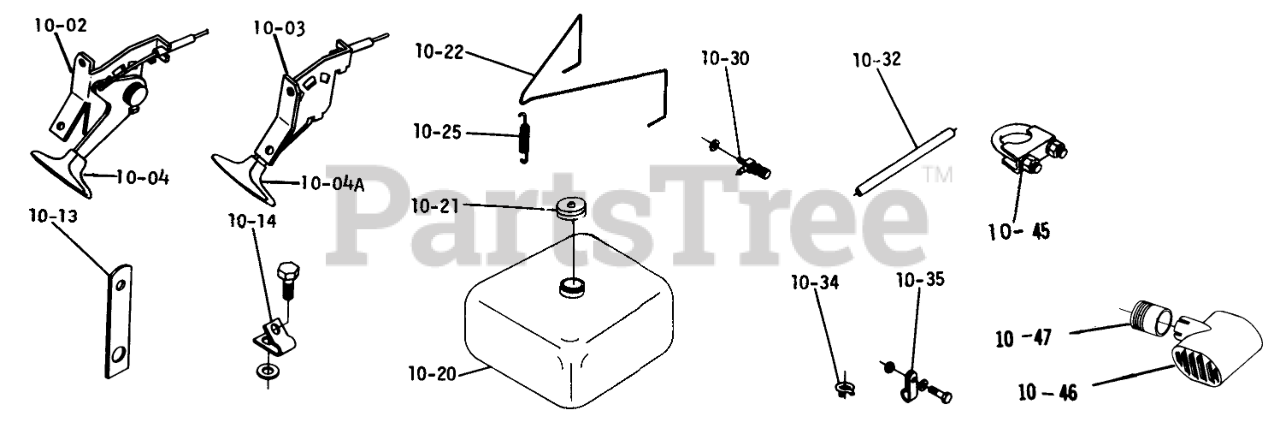

1-0141 (B-80) - Toro Lawn Tractor (1975) B-100 PARTS MANUAL 10.000 FUEL AND EXHAUST SYSTEMS (FIG. 10) Parts Diagram

Lawn Tractor

B-100 PARTS MANUAL 10.000 FUEL AND EXHAUST SYSTEMS (FIG. 10) Parts Diagram

  • Title
10-02

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

10-03

Toro 101835

THROTTLE CONTROL

$

$

Not available

Toro 8713

SCREW

$

$

Not available

Toro 915964

#10-24 Kep-Nut
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

10-04

Toro 102186

KNOB-CHOKE

$18.99

$

In Stock, Qty 7

0

10-04A

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

10-13

Toro 100452

Strap

$

$

Not available

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

10-14

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

Toro 7922

CLIP-CABLE

$3.99

$

Usually ships in 3-6 days

0

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10-20

Toro 104065

ASSY-FUEL TANK

$

$

Not available

10-21

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-22

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

10-25

Toro 6949

CLUTCH SPRING

$

$

Not available

10-30

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

10-32

Toro 5436

Hose-Fuel

$

$

Not available

10-34

Toro 950154

Clamp

$

$

Not available

10-35

Toro 101861

CLAMP-HOSE

$

$

Not available

10-45

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

10-46

Toro 103055

MUFFLER

$603.99

$

Usually ships in 3-6 days

0

10-47

Toro 103096

Nipple

$

$

Not available
