1-0140 (B-80) - Toro Lawn Tractor (1974) 14.050 MANUAL P.T.O. (PLATE 14.4) Parts Diagram

Lawn Tractor

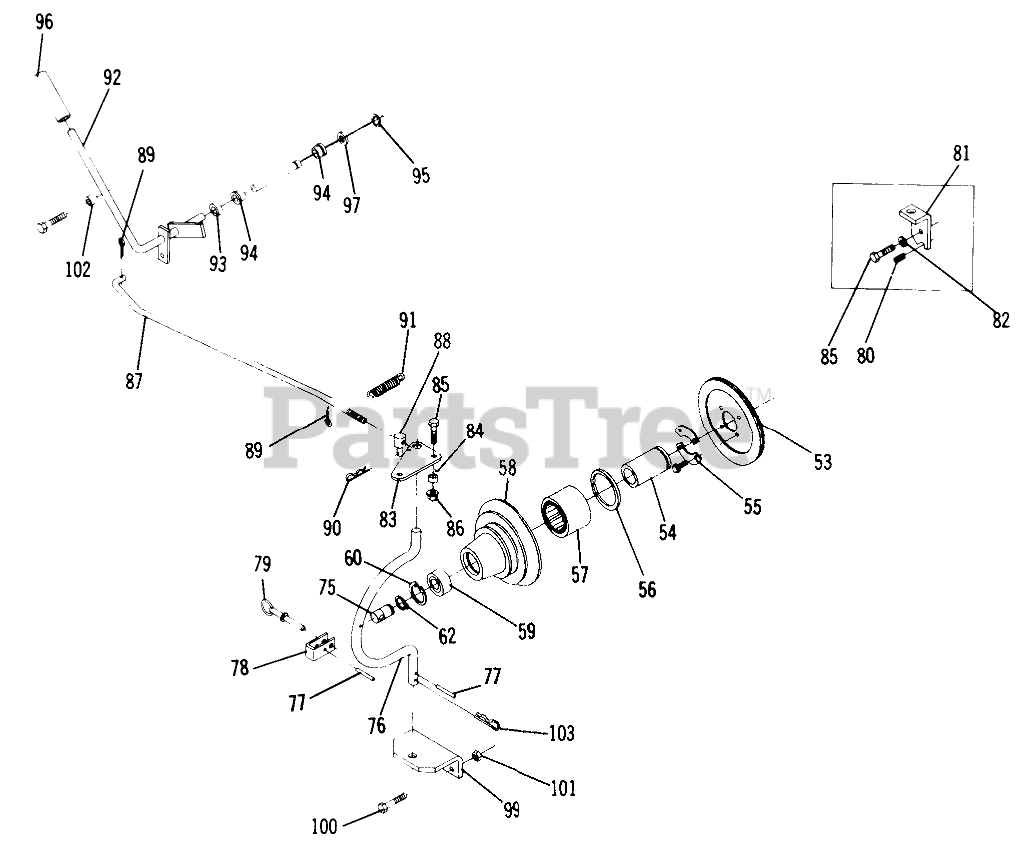

14.050 MANUAL P.T.O. (PLATE 14.4) Parts Diagram

  • Title

14-53

Toro 103817

Clutch Plate & Facing
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

Toro 103477

Clutch Plate
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

Toro 103140

Facing
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

Toro 6657

RIVET-BRASS

$1.49

$

In Stock, Qty 5

0

14-54

Toro 6935

BEARING RACE

$

$

Not available

14-55

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

14-56

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

14-57

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

In Stock, only 1 left!

0

14-58

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

14-59

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 1 left!

0

14-60

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

Toro 933506-4

Hairpen

$

$

Currently unavailable

14-62

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

14-75

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 1 left!

0

14-76

Toro 102938

ROD HOUSING (NS)

$

$

Not available

14-77

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

14-78

Toro 102941

Clevis
(Superseded to 113107)

$27.99

$

In Stock, only 1 left!

0

14-79

Toro 102956

Pin
(Superseded to 111314)

$27.99

$

In Stock, only 1 left!

0

14-80

Toro 909880-5

Set Screw 3/8-16 x 3/4

$

$

Currently unavailable

14-81

Toro 102967

Bracket-Engine

$

$

Not available

14-82

Toro 920083-4

Lockwasher

$

$

Currently unavailable

14-83

Toro 102943

PLATE R
(Superseded to 102943-01)

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

14-84

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

14-85

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

14-86

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

14-87

Toro 102937

Clutch Rod

$

$

Not available

14-88

Toro 101161

TRUNNION

$

$

Not available

14-89

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

14-90

Toro 933505-4

Hairpin

$

$

Currently unavailable

14-91

Toro 1230

Spring

$

$

Not available

14-92

Toro 103881

Plug, Drain

$

$

Not available

14-93

Toro 102964

SPACER

$

$

Not available

14-94

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

14-95

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

14-96

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

14-97

Toro 920011-4

Washer

$

$

Currently unavailable

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

14-99

Toro 102870

Axle
(Superseded to 102870-01)

$34.99

$

Usually ships in 3-6 days

0

14-100

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

14-101

Toro 915113-6

Nut

$

$

Currently unavailable

14-102

Toro 9690

Spacer

$

$

Not available

14-103

Toro 933506-4

Hairpen

$

$

Currently unavailable
