1-0130 - Toro Lawn Tractor (1973) TRANSMISSION 3-SPEED Parts Diagram

Lawn Tractor

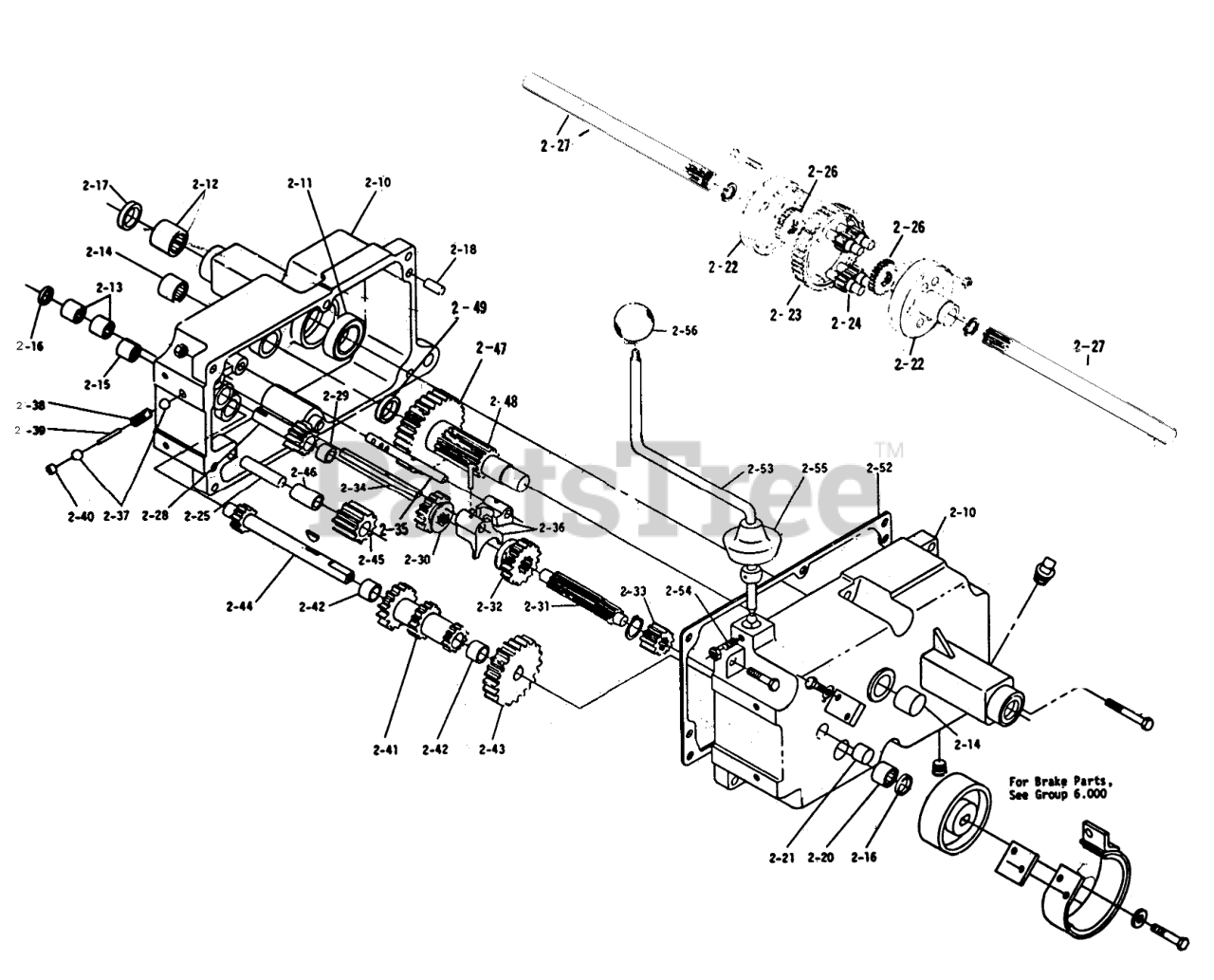

TRANSMISSION 3-SPEED Parts Diagram

  • Title

2-10

Toro 3900

Case R.H

$

$

Not available

Toro 3901

Case LH.

$

$

Not available

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

Toro 915113-6

Nut

$

$

Currently unavailable

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

2-11

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

2-12

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

2-13

Toro 1508

NEEDLE BEARING
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

2-14

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

2-15

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

2-16

Toro 100441

SEAL-OIL

$9.99

$

In Stock, only 1 left!

0

2-17

Toro 100863

OIL SEAL

$16.99

$

In Stock, only 4 left!

0

2-18

Toro 3195

Pin-Dowel

$

$

Currently unavailable

2-20

Toro 1523

BEARING-NEEDLE

$42.99

$

Usually ships in 3-6 days

0

2-21

Toro 1531

Bearing Needle

$

$

Not available

2-22

Toro 101053

Case-Differential

$

$

Not available

Toro 908146

Bolt, 5/16-18 x 1/4
(Superseded to 322-20)

$1.99

$

Usually ships in 3-6 days

0

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

2-23

Toro 3906

Bull Gear

$

$

Not available

2-24

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

2-25

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

2-26

Toro 3908

AXLE GEAR

$177.99

$

Usually ships in 3-6 days

0

2-27

Toro 102487

Axle-Rear

$

$

Not available

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, only 4 left!

0

2-28

Toro 3522

INPUT SHAFT

$

$

Not available

2-29

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

2-30

Toro 3523

GEAR

$

$

Not available

2-31

Toro 3907

Shaft Spline

$

$

Not available

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

2-32

Toro 3524

GEAR

$

$

Not available

2-33

Toro 3526

GEAR

$

$

Not available

2-34

Toro 5615

RAIL-SHIFT

$117.99

$

Usually ships in 3-6 days

0

2-35

Toro 5616

RAIL-REAR SHIFT

$90.99

$

Usually ships in 3-6 days

0

2-36

Toro 3503

FORK-SHIFT

$139.99

$

Usually ships in 3-6 days

0

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

2-37

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

2-38

Toro 3518

Spring
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

2-39

Toro 5614

PIN-SHIFT

$

$

Not available

2-40

Toro 1243

CUP-PLUG

$5.99

$

In Stock, Qty 10

0

2-41

Toro 3525

Cluster Gear
(Superseded to 7269)

$

$

Not available

2-42

Toro 1504

BUSHING-BRONZE

$50.99

$

Usually ships in 3-6 days

0

2-43

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

2-44

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 4 left!

0

2-45

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$165.99

$

Usually ships in 3-6 days

0

2-46

Toro 1516

BUSHING

$14.99

$

Usually ships in 3-6 days

0

2-47

Toro 101626

GEAR

$

$

Not available

2-48

Toro 101625

PINION SHAFT

$

$

Not available

2-49

Toro 101626

GEAR

$

$

Not available

2-52

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 2 left!

0

2-53

Toro 5632

Shift Stick
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0

2-54

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

2-55

Toro 3577

COVER-DUST

$

$

Not available

2-56

Toro 102871

SHIFT KNOB

$

$

Not available
