1-0110 - Toro Commando 800 Lawn Tractor (1972) SEATS, DECALS, MISC. TRIM Parts Diagram

Commando 800 Lawn Tractor

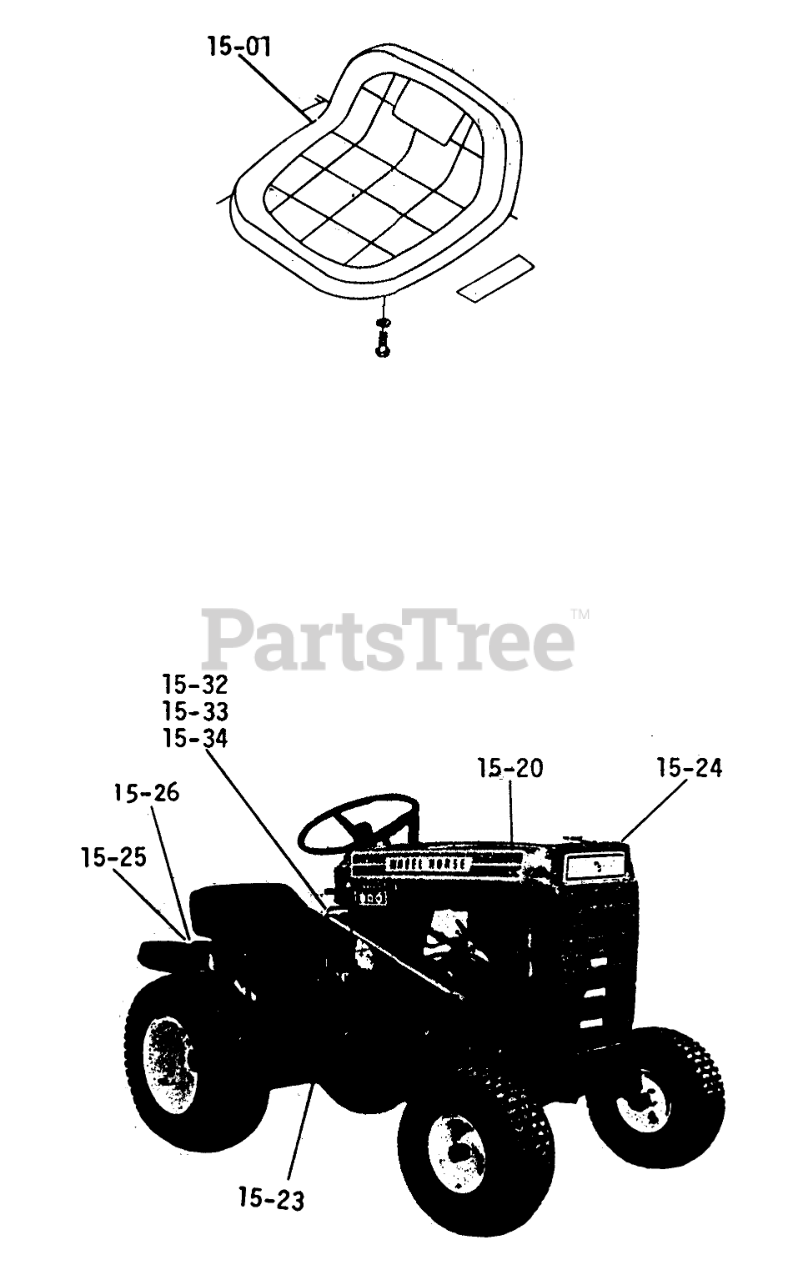

SEATS, DECALS, MISC. TRIM Parts Diagram

  • Title

15-01

Toro 100780

Seat
(Superseded to 78-7600)

$

$

Not available

Toro 101444

Pad

$

$

Not available

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

15-20

Toro 100000

Decal-Hood

$

$

Not available

Toro 102831

Decal
(Superseded to 108851)

$41.99

$

Usually ships in 3-6 days

0

15-23

Toro 101908

Decal--Commando 800-3 Speed

$

$

Currently unavailable

15-25

Toro 8138

Decal
(Superseded to 83-3410)

$

$

Not available

15-26

Toro 100614

Reflector

$

$

Currently unavailable

15-32

Toro 7472

Deal-Seat Latch

$

$

Not available

15-33

Toro 7883

Decal-Shift Pattern
(Superseded to 102847)

$

$

Not available

15-34

Toro 101226

Decal-Caution (lower hoodstand)

$

$

Not available

15

Toro 102842

Shifter Ball

$

$

Currently unavailable

15

Toro 102843

Decal

$

$

Currently unavailable

15

Toro 102844

Decal

$

$

Currently unavailable

15

Toro 102847

DECAL-4 SPD SHIFT

$

$

Not available

15

Toro 102859

Decal

$

$

Not available

15

Toro 102948

DECAL-HAND LIFT

$

$

Not available

15

Toro 103028

Decal

$

$

Currently unavailable
